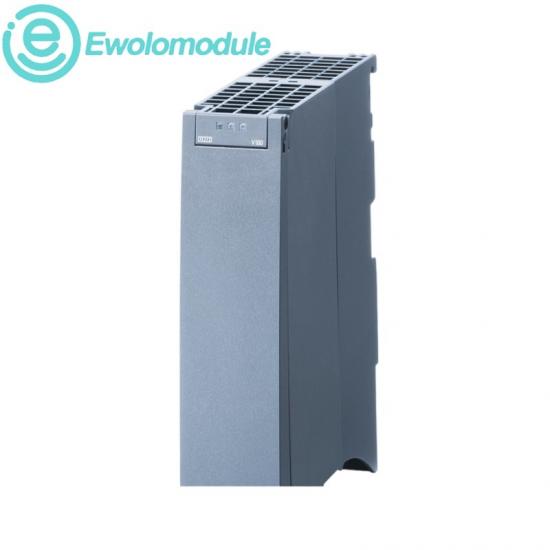

6AG1522-1BL01-7AB0

SIPLUS S7-1500 DQ 32x24VDC/0.5A HF Digital Output Module

SIEMENS · PRODUCT DETAILS

Condition
New Original

Warranty
One year

PRODUCT SNAPSHOT

Built for dependable field-load control in demanding automation systems, this Siemens module supports machinery, production-line and process applications where reliable output switching is essential.

Its modular design simplifies cabinet integration, replacement and future expansion. Confirm the complete order code and compatibility with the installed project before commissioning.

☎ +86 17359287459 ✉ sales9@apterpower.com

Explore Siemens →

FIRMWARE · ENGINEERING

Lifecycle-ready configuration guidance

Firmware & updates

1The module is based on hardware function status FS02 with firmware V1.1.0.

2Firmware compatibility should be checked in the installed TIA Portal project before replacement.

3Use Siemens-supported update packages and follow the module manual during any firmware update.

4I&M0 to I&M3 data support identification, maintenance records and installed-base tracking.

Configuration & programming

1Configure the module with STEP 7 in TIA Portal from V13 SP1.

2Parameterize channel diagnostics, substitute values and output reactions for the application.

3Outputs are organized in groups of eight; coordinate load supply and protective devices by group.

4The module supports MSO and isochronous operation where the selected system configuration permits.

OFFICIAL TECHNICAL DATA

Product type

DQ 32x24VDC/0.5A HF

Digital outputs

Channel grouping

4 groups of 8

Output current

0.5 A per channel

Group current

4 A maximum

Supply range

19.2–28.8 V DC

Firmware version

V1.1.0

Temperature range

-40 to +70 °C

Values shown are limited to Siemens documentation for 6AG1522-1BL01-7AB0 and its documented base module. Verify the installed hardware revision before commissioning.

BRAND VALUE · APPLICATION RANGE

Engineering fit across demanding industries

Siemens brand characteristics

Application fields

1Conformal-coated SIPLUS construction extends standard automation hardware for harsh environments.

1Outdoor and unconditioned control cabinets.

2High-feature diagnostics provide channel-level visibility for commissioning and maintenance.

2Metals, mining and material-handling systems.

3Integrated lifecycle functions such as switching-cycle counting support preventive service planning.

3Process plants with elevated temperature or humidity exposure.

4Compatibility with the wider Siemens engineering ecosystem simplifies standardized projects.

4Machine and infrastructure projects requiring 32-channel output density.
