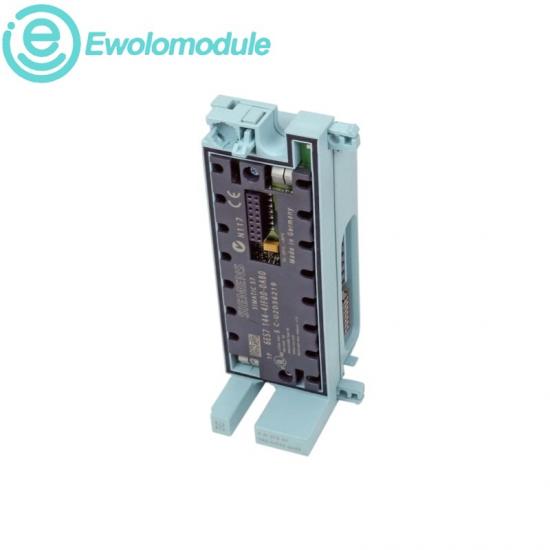

6ES7144-4JF00-0AB0

SIMATIC ET 200pro 4 AI RTD High Feature Electronic Module

SIEMENS · PRODUCT DETAILS

Condition
New Original

Warranty
One year

PRODUCT SNAPSHOT

Designed for distributed temperature acquisition, this electronic module connects resistance thermometers to an industrial automation station and converts four field channels into process values.

Its High Feature design supports channel-level diagnostic information and configurable sensor ranges. Confirm the connection module, installed interface module and engineering package before commissioning.

☎ +86 17359287459 ✉ sales9@apterpower.com

Explore Siemens →

FIRMWARE · ENGINEERING

Lifecycle-ready configuration guidance

Firmware & updates

The module is documented from product version E01 for use with the IM 154-8 CPU.

Siemens specifies HSP0066 V2.3 or later for the documented STEP 7 V5.4 SP1 configuration path.

Retain the existing channel parameter set when replacing a module in an operating station.

Check the current Siemens hardware support package and station documentation before making project changes.

Configuration & programming

Configure four resistance-thermometer channels with the correct sensor type and measuring range.

Supported RTD families include Pt100, Pt200, Pt500, Pt1000, Ni100, Ni200, Ni500 and Ni1000.

Channel diagnostics, wire-break monitoring and overflow or underflow diagnostics can be parameterized.

The bus module is included; the matching 6ES7194-4..00-0AA0 connection module is ordered separately.

OFFICIAL TECHNICAL DATA

Product type4 AI RTD High Feature

Analog inputs4

Rated supply24 V DC

Address space8 bytes

Measurement current1.25 / 0.5 mA

Cycle time83 ms at 50 Hz

DiagnosticsChannel diagnostics

IsolationChannels to backplane bus

Technical values are limited to Siemens documentation for 6ES7144-4JF00-0AB0. Confirm the installed hardware revision and applicable manual before commissioning.

BRAND VALUE · APPLICATION RANGE

Engineering fit across demanding industries

Siemens brand characteristics

Application fields

Modular SIMATIC engineering supports structured expansion of distributed I/O stations.

Temperature monitoring on production machinery and skids.

Channel diagnostics help maintenance teams identify wiring and measurement faults quickly.

Process utilities with distributed RTD measurement points.

Broad resistance-thermometer support simplifies standardized temperature acquisition.

Food, chemical and water-treatment automation.

Documented hardware support packages support controlled retrofit and lifecycle work.

Cabinet and machine installations using ET 200pro I/O.
