6ES7131-1BH01-0XB0

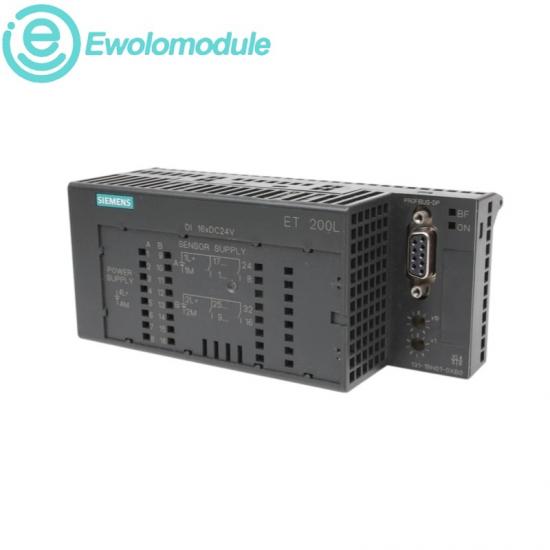

SIMATIC DP ET 200L 16 DI 24 V DC Electronic Module

SIEMENS · PRODUCT DETAILS

Condition
New Original

Warranty
One year

PRODUCT SNAPSHOT

Built for discrete-signal acquisition in established distributed-I/O systems, this electronics block brings sixteen 24 V DC field inputs into an ET 200L station.

The inputs are arranged in two groups of eight and are intended for switches and proximity sensors. Match the electronics block to the correct terminal block and preserve the installed PROFIBUS DP configuration during service.

☎ +86 17359287459 ✉ sales9@apterpower.com

Explore Siemens →

FIRMWARE · ENGINEERING

Lifecycle-ready configuration guidance

Firmware & updates

The official ET 200L manual identifies this order code as the current 16-input electronics block variant.

It supersedes the earlier 6ES7131-1BH00-0XB0 variant for the documented ET 200L configuration.

ET 200L components cannot be upgraded with Smart Connect according to the system manual.

For replacement, record the installed station address, module position and terminal-block version before removal.

Configuration & programming

Use the electronics block with a compatible TB 16L terminal block.

Map sixteen digital inputs in two groups of eight within the PROFIBUS DP station.

The rated input voltage is 24 V DC and the channels suit switches and proximity sensors.

Verify sensor-supply protection and the terminal assignment against the ET 200L manual.

OFFICIAL TECHNICAL DATA

Product typeL 16 DI DC 24 V

Digital inputs16

Input grouping2 groups of 8

Rated input24 V DC

Sensor typesSwitches and BEROs

Bus protocolPROFIBUS DP

Status displayGreen LED per channel

Required baseTB 16L

Technical values are limited to Siemens documentation for 6ES7131-1BH01-0XB0. Confirm the installed hardware revision and applicable manual before commissioning.

BRAND VALUE · APPLICATION RANGE

Engineering fit across demanding industries

Siemens brand characteristics

Application fields

Long-established SIMATIC platforms remain documented for disciplined maintenance work.

Service and repair of legacy ET 200L stations.

Clear terminal-block and electronics-block assignments support controlled replacement.

Discrete sensor acquisition on compact machines.

Channel status indication helps technicians verify field signals at the station.

Material-handling and conveyor input monitoring.

Siemens manuals provide structured wiring, configuration and diagnostic references.

Installed-base support for PROFIBUS DP automation.
