Product Details

SIMATIC HMI / Comfort Panels

6AV2124-2DC01-0AX0

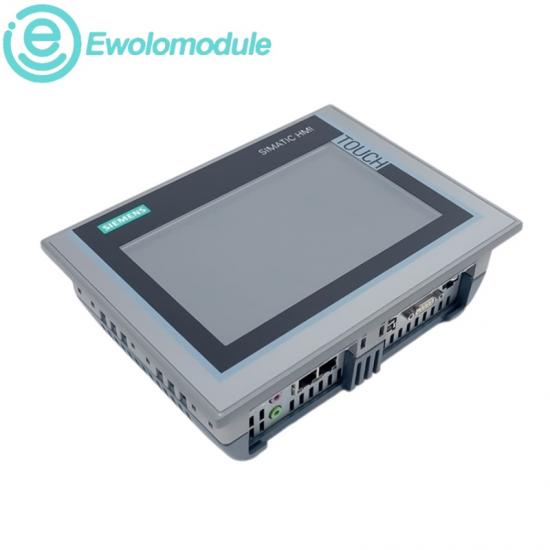

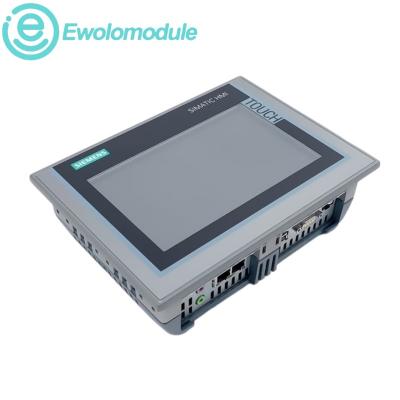

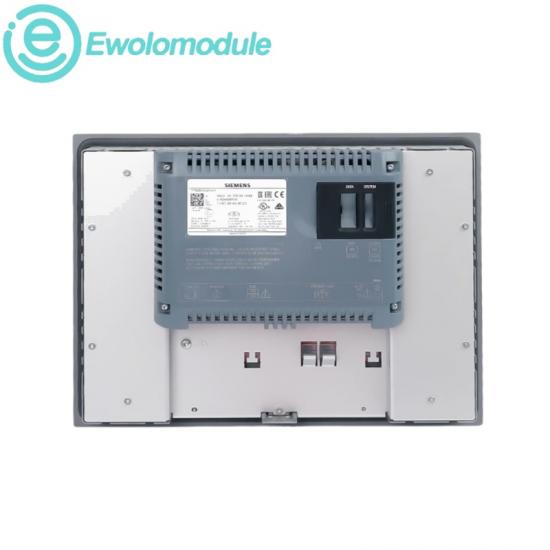

SIMATIC HMI KTP400 Comfort Panel

Description
Provides compact touch-and-key operator control for PROFINET and PROFIBUS-connected machines.

WarrantyOne year

AvailabilityIn stock

Related models on Ewolomodule
6GK5308-2GG00-2AA2 6GK7343-1EX11-0XE0 6ES7414-2XG03-0AB0

Specifications / Human machine interface

KTP400 Comfort official engineering profile

This compact Comfort Panel combines a widescreen color touch display with illuminated function keys, local configuration memory and industrial communication interfaces for visualization and machine operation.

Official technical data

Article number	6AV2124-2DC01-0AX0	Product designation	KTP400 Comfort
Display	4.3 in TFT widescreen	Resolution	480 × 272 pixels
Colors	16,777,216	Configuration memory	4 MB
Interfaces	PROFINET + MPI/PROFIBUS DP	Engineering	WinCC Comfort V11 or higher

Product positioning	Compact operator panel for local visualization, diagnostics and control on industrial machines.
Suffix meaning	Siemens identifies this configuration by the complete article number; no official segment-by-segment suffix key is published.
System relationship	Integrates with SIMATIC automation through PROFINET or MPI/PROFIBUS DP and supports landscape or portrait installation.

Recommand / Application and replacement

Application overview

Machine HMI
Local operation and status visualization on compact equipment.

Process control
Alarm, recipe and diagnostic interaction at the machine level.

Retrofit projects
Replacement planning for earlier four-inch SIMATIC touch panels.

Installation

Fit the panel into a 124 × 100 mm mounting cutout, connect 24 V DC and the selected automation network, then load the validated HMI project.

Upgrade path

Review display layout, communication drivers and project conversion before migrating to another Comfort or Unified Comfort device.
