PRODUCT DETAILS · SIEMENS SIMATIC HMI

6AV3627-1JK00-0AX0

OP27 Operator Panel

PRODUCT IDENTITY

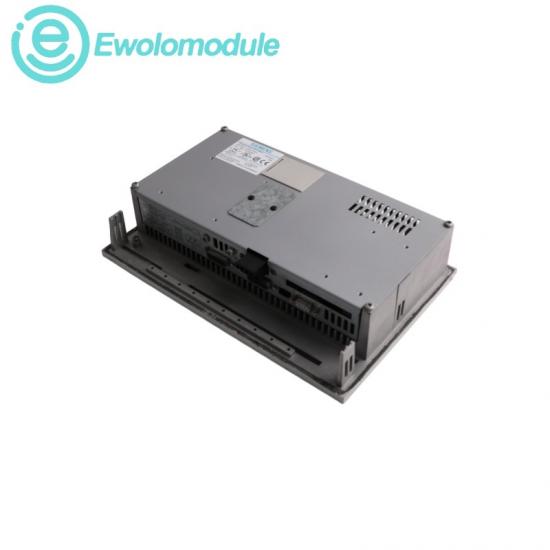

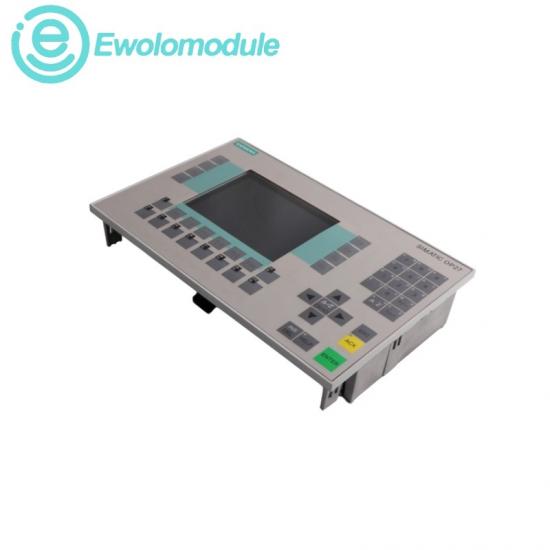

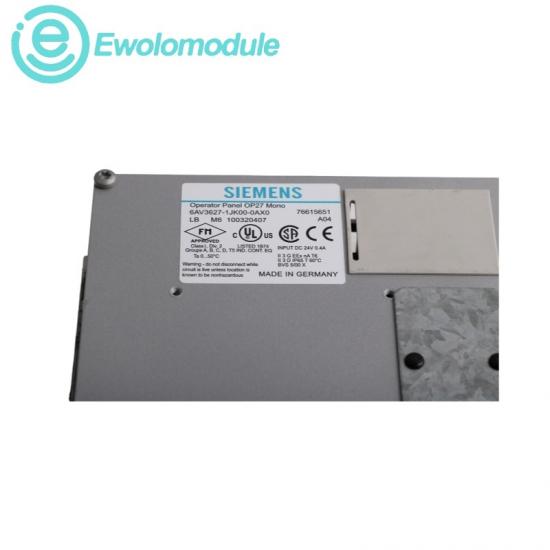

Siemens 6AV3627-1JK00-0AX0 SIMATIC HMI OP27 Operator Panel is a keypad operator panel with a 5.7-inch monochrome STN display for machine visualization and operation in legacy SIMATIC installations.

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Configuration and compatibility

PRODUCT DESCRIPTION

The OP27 provides local visualization, alarm handling and keypad-based machine operation through a monochrome STN display with eight gray levels. Its function and system keys support deterministic operator input, while TTY, RS232, RS422 and RS485 interfaces connect the panel to established SIMATIC controllers and serial networks.

SYSTEM COMPATIBILITY

◆ SIMATIC controllers and legacy HMI systems

◆ TTY, RS232, RS422 and RS485 interfaces

◆ Communication rates up to 12 Mbit/s

◆ Configured with ProTool V3.1 or higher

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION OP27	DISPLAY 5.7-inch STN monochrome
DISPLAY LEVELS 8 gray scales	RESOLUTION 320 × 240 pixels
FUNCTION KEYS 24, including 18 LEDs	SYSTEM KEYS 24
SUPPLY VOLTAGE 18 V DC	CURRENT CONSUMPTION 0.3 A
ACTIVE POWER Typically 8 W	PROTECTION Front IP65; rear IP20

RECOMMAND · APPLICATION GUIDANCE

Operation guidance and related models

DIAGNOSTICS & PROTECTION

Review system messages, communication settings, membrane-key response and backlight condition before replacing an installed OP27 panel.

OPERATING ENVIRONMENT

Mount vertically with no more than 35° inclination; preserve the front IP65 seal and keep the rear electronics in an IP20 control enclosure.

From identification to secure dispatch

SERVICE PROCESS

Identify

Confirm the complete model and installed configuration.

Verify

Check revision, condition and compatibility details.
