Product Details

Motion Control / PROFINET IO Encoders

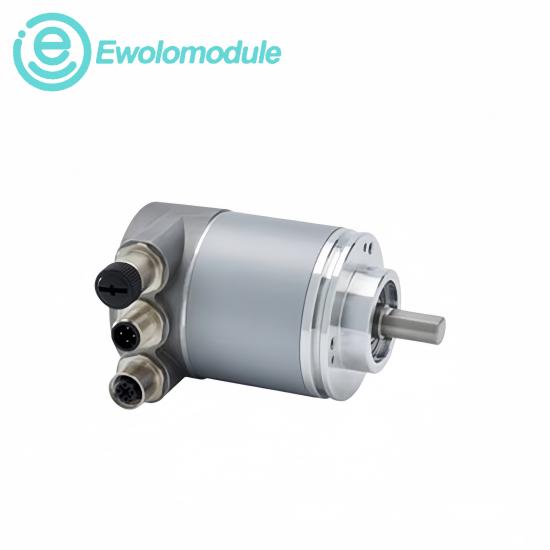

6FX2001-5QN25

30-bit Multiturn PROFINET IO Absolute Encoder

Description
Delivers absolute position data over real-time PROFINET for industrial motion and positioning systems.

WarrantyOne year

AvailabilityIn stock

Related models on Ewolomodule
6GK5308-2GG00-2AA2 6GK7343-1EX11-0XE0 6ES7414-2XG03-0AB0

Specifications / Motion feedback

PROFINET IO absolute encoder official profile

The multiturn encoder combines high-resolution absolute measurement with real-time PROFINET communication. Dual M12 network ports, radial connections and configurable encoder profiles support distributed position feedback.

Official technical data

Article number	6FX2001-5QN25	Resolution	30 bit multiturn
Interface	PROFINET IO RT / IRT	Transmission rate	100 Mbit/s
Operating voltage	10 to 30 V DC	Shaft	10 mm × 20 mm
Degree of protection	IP67 housing / IP64 shaft input	Operating temperature	-40 °C to +85 °C

Product positioning	Industrial multiturn absolute encoder for networked position feedback and motion monitoring.
Suffix meaning	Siemens identifies this configuration by the complete article number; no official segment-by-segment suffix key is published.
System relationship	Connects through two M12 PROFINET ports with clock synchronization and supports PNO encoder profile V4.1 classes 1 to 4.

Recommand / Application and replacement

Application overview

Conveying systems
Absolute position tracking across distributed machine sections.

Motion equipment
Networked feedback for positioning and coordinated movement.

Outdoor machinery
Robust encoder service in wide-temperature industrial environments.

Installation

Mount through the clamping flange on the 10 mm shaft, connect the M12 power and PROFINET cables, and configure the selected encoder profile.

Upgrade path

Match shaft mechanics, network topology, telegram profile, resolution and device-name configuration before encoder replacement.
