6AV3627-1LK00-1AX0

SIMATIC HMI OP27 Operator Panel with STN Color Display

PRODUCT IDENTITY

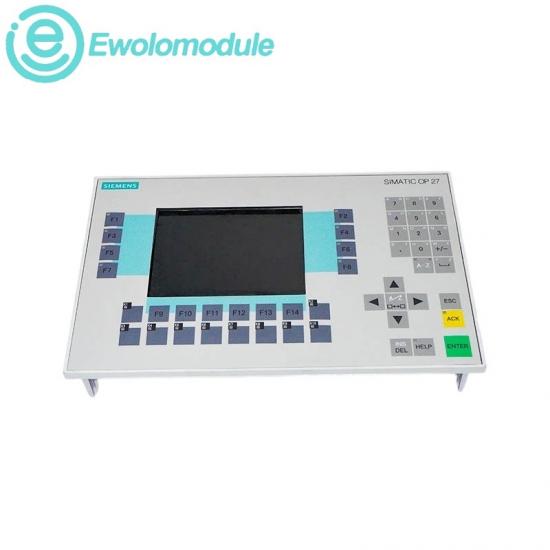

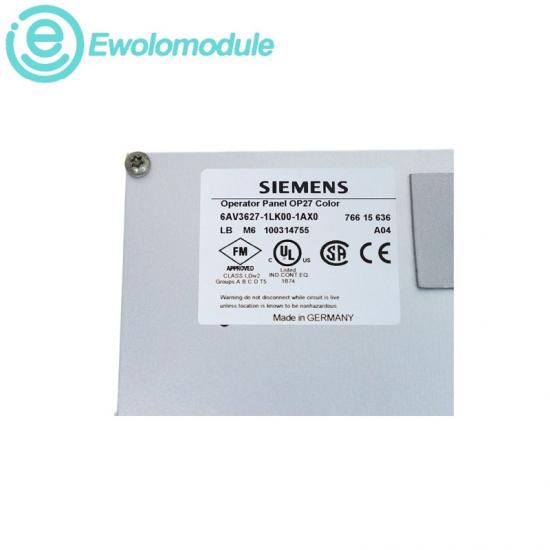

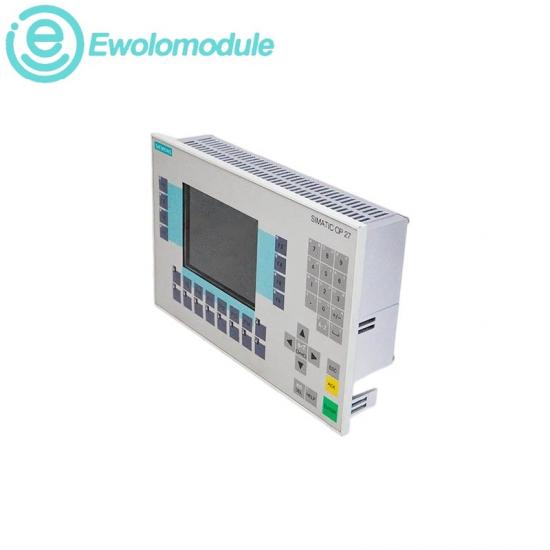

Siemens 6AV3627-1LK00-1AX0 SIMATIC HMI OP27 Operator Panel with STN Color Display

A keypad-operated SIMATIC HMI panel with color display for machine visualization and operator control.

Product series: SIMATIC HMI OP27

☎ Tel: +86 17359287459

✉ Email: sales9@apterpower.com

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Configuration, diagnostics and installation

PRODUCT DESCRIPTION

The OP27 combines an STN color display, configurable function keys and serial/MPI/PROFIBUS communication for operating and monitoring automation systems. It supports established SIMATIC controller families and is engineered with ProTool for legacy machine and process interfaces.

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION	SIMATIC HMI OP27	DISPLAY	STN color LCD
RESOLUTION	640 × 480 pixels	FUNCTION KEYS	24; 18 with LEDs
INTERFACES	TTY, RS232, RS422, RS485	PROFIBUS RATE	Up to 12 Mbit/s
FRONT PROTECTION	IP65	CONFIGURATION	ProTool from V3.1

DIAGNOSTICS & PROTECTION

◆ System messages and configurable indicators support operator diagnostics

◆ The IP65 front protects the installed panel face

◆ Verify serial or PROFIBUS settings when communication is interrupted

INSTALLATION & UPGRADE

◆ Fit in the documented panel cutout with the approved mounting angle

◆ Transfer the ProTool project through the configured service interface

◆ Match PLC driver, baud rate and project version before replacement

RECOMMAND · APPLICATION GUIDANCE

Safe integration and efficient operation

SAFETY & COMPLIANCE

◆ Front protection applies only after correct panel installation

◆ Use 24 V DC supply and protective grounding as documented

◆ Maintain the permitted 0 °C to +50 °C operating range

PERFORMANCE & EFFICIENCY

◆ Dedicated keys support fast operation in legacy machinery

◆ Multiple interfaces simplify connection to SIMATIC and third-party PLCs

◆ Project reuse supports practical replacement in installed systems
