PRODUCT DETAILS · INDUSTRIAL AUTOMATION

6GK5202-2BH00-2BA3

SCALANCE X202-2P IRT Managed Industrial Ethernet Switch

PRODUCT IDENTITY

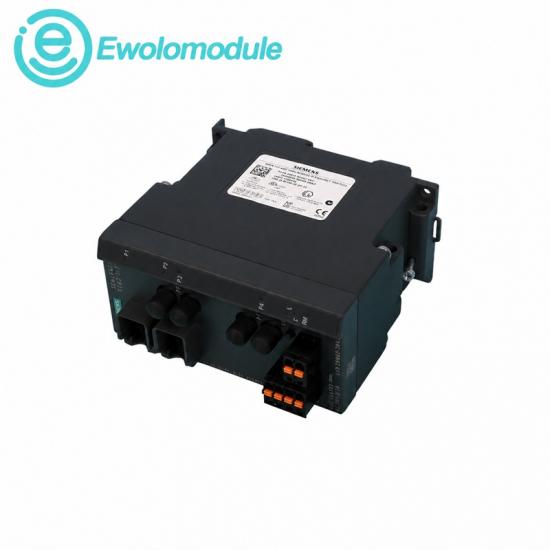

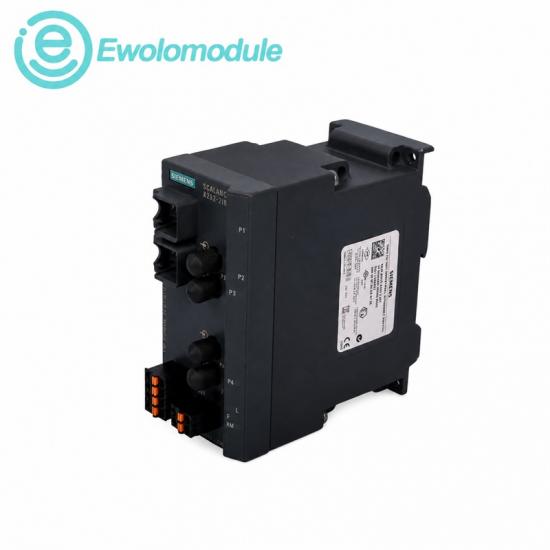

Siemens 6GK5202-2BH00-2BA3 SCALANCE X202-2P IRT Managed Industrial Ethernet Switch

A managed PROFINET IRT switch with two copper and two POF fiber ports for real-time industrial networks.

Product series: SCALANCE X-200 IRT

☎ Tel: +86 17359287459

✉ Email: sales9@apterpower.com

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Configuration, diagnostics and installation

PRODUCT DESCRIPTION

The SCALANCE X202-2P IRT combines two 10/100 Mbit/s RJ45 connections with two 100 Mbit/s POF SC-RJ ports. It operates as a PROFINET IO device and integrates network management, a redundancy manager, fault signaling and optional C-PLUG storage for service replacement.

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION	SCALANCE X202-2P IRT	COPPER PORTS	2 × RJ45, 10/100 Mbit/s
FIBER PORTS	2 × POF SC-RJ, 100 Mbit/s	SUPPLY VOLTAGE	24 V DC
CURRENT CONSUMPTION	Max. 0.3 A	POWER LOSS	7.2 W
PROFINET ROLE	PROFINET IO device	STORAGE MEDIUM	C-PLUG optional

DIAGNOSTICS & PROTECTION

◆ Fault signaling contact and LEDs support local status indication

◆ Network management exposes topology and communication information

◆ Input protection and redundant power connection support dependable operation

INSTALLATION & UPGRADE

◆ Mount in a protected industrial enclosure and connect redundant 24 V DC

◆ Use compatible RJ45 and POF SC-RJ cabling

◆ Transfer the device configuration with an optional C-PLUG when replacing hardware

RECOMMAND · APPLICATION GUIDANCE

Safe integration and efficient operation

SAFETY & COMPLIANCE

◆ Operate from −25 °C to +60 °C within the published limits

◆ Use the documented 24 V DC supply and protective wiring

◆ Observe Siemens Industrial Ethernet installation and EMC instructions

PERFORMANCE & EFFICIENCY

◆ Copper and POF ports bridge electrical and optical network segments

◆ Integrated redundancy manager improves network availability

◆ PROFINET IRT supports deterministic real-time communication
