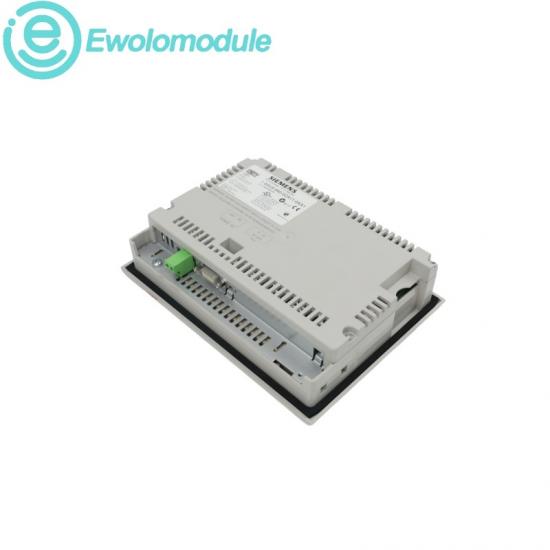

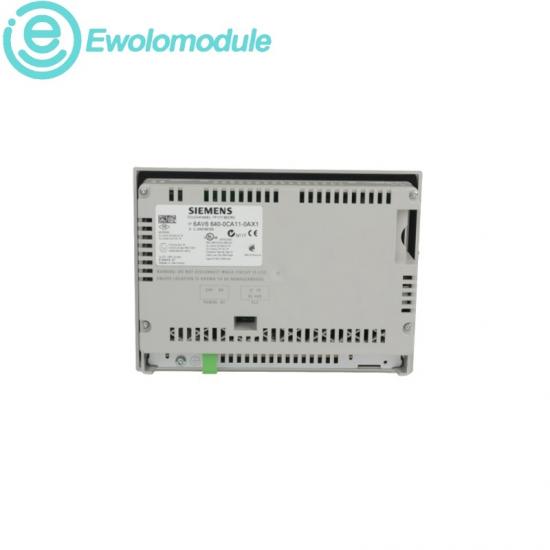

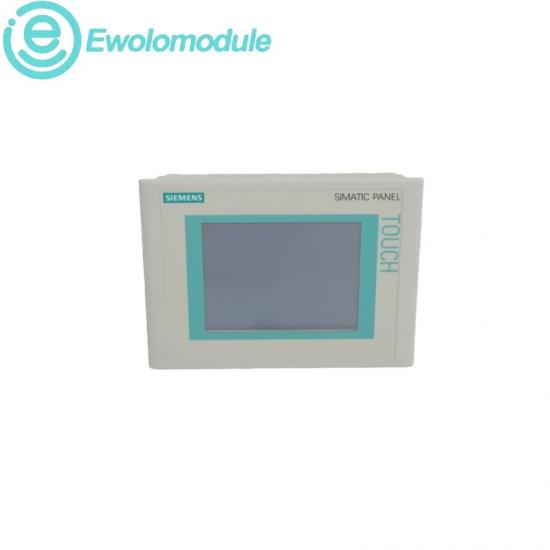

6AV6640-0CA11-0AX1

SIMATIC TP 177micro 5.7-Inch Touch Panel

PRODUCT SNAPSHOT

The Siemens 6AV6640-0CA11-0AX1 is a compact SIMATIC TP 177micro operator panel developed for visualization and direct machine operation with SIMATIC S7-200 control systems. Its 5.7-inch blue-mode STN display provides a clear 320×240-pixel interface, while the analog resistive touchscreen supports intuitive setpoint entry, alarm acknowledgement and process navigation.

Powered from 24 V DC, the panel combines an ARM processor, 256 KB user memory and an integrated RS485 port in a space-efficient front-panel format. Projects are created with WinCC flexible Micro, and built-in backup, restore, touch-calibration and device-switching functions support the maintenance of established S7-200 machines.

DIRECT CONTACT

☎ +86 17359287459 ✉ sales9@apterpower.com

RELATED MODELS

COMPLIANCE · LIFECYCLE · ENGINEERING

Certified operation, controlled updates, precise setup

CERTIFICATION & STANDARDS

◆CE, UL, CSA and cULus approvals are listed in Siemens product data

◆Front protection is IP65 and NEMA 4X when correctly installed; rear is IP20

◆Marine approvals include GL, ABS, BV, DNV and LRS for the documented product revision

FIRMWARE & UPDATES

◆Use only Siemens operating-system images released for TP 177micro

◆Back up the project before an OS update or device replacement

◆Match the panel image and WinCC flexible version before transfer

CONFIGURATION & PROGRAMMING

◆Configure with WinCC flexible Micro 2004 SP1 HSP or later

◆Connect to SIMATIC S7-200 through the integrated RS485 interface

◆Set touch calibration, runtime language and alarm behavior in the project

OFFICIAL TECHNICAL DATA

Display 5.7-inch STN	Resolution 320×240 pixels	Touch technology Analog resistive	Supply 24 V DC
Power consumption 6 W	User memory 256 KB Flash	Interface 1×RS485	Transfer rate 187.5 kbit/s max.

Siemens product data sheet for 6AV6640-0CA11-0AX1.

BRAND VALUE · APPLICATION MAP

Engineering strengths and where this model fits

BRAND CHARACTERISTICS	APPLICATION FIELDS
◆Purpose-built Siemens HMI for compact S7-200 machine control	◆Small-machine operator stations and localized control panels
◆Resistive touch operation and IP65 front protection for industrial panels	◆Pump, compressor and water-treatment skids
◆WinCC flexible engineering supports alarms, multilingual projects and process values	◆Packaging, conveying and material-handling equipment
◆Long installed base and documented service functions support legacy-machine maintenance	◆S7-200 retrofit, repair and long-term spare-parts projects
