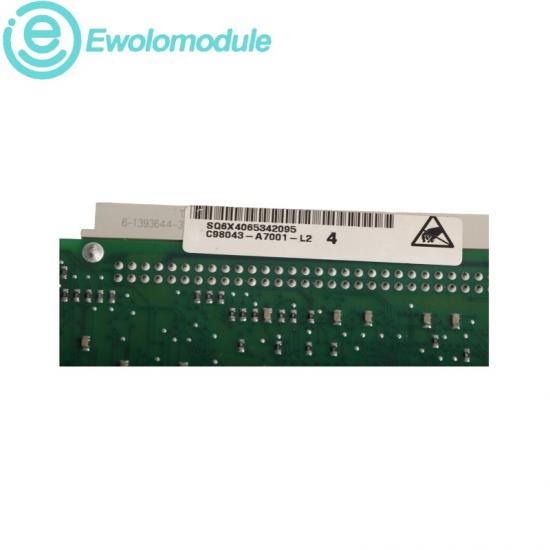

C98043-A7001-L2

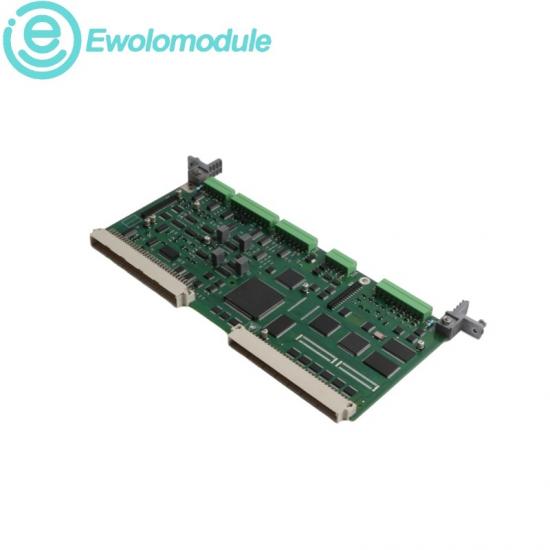

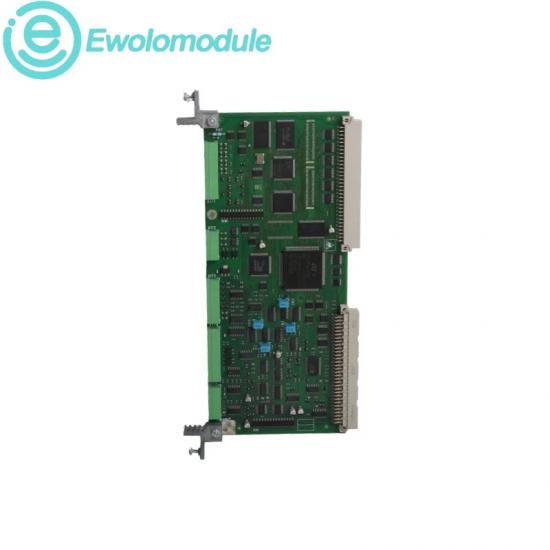

SIMOREG DC-MASTER CUD1 Control Board

PRODUCT SNAPSHOT

The Siemens C98043-A7001-L2 is the CUD1 central processor electronics board used in SIMOREG DC-MASTER 6RA70 systems. It coordinates open-loop and closed-loop control while evaluating drive feedback, analog signals and binary I/O required for armature and field regulation.

The board provides the G-SST1 serial channel at X300, a second G-SST2 channel at terminals 56 to 60, differential pulse-encoder evaluation and reference-voltage outputs. Siemens documentation assigns this L2 hardware version to software 3.xx and later, so the installed product state and parameters r060 and r065 should be checked before replacement or updating.

DIRECT CONTACT

☎ +86 17359287459 ✉ sales9@apterpower.com

RELATED MODELS

COMPLIANCE · LIFECYCLE · ENGINEERING

Certified operation, controlled updates, precise setup

CERTIFICATION & STANDARDS

◆Use within the approvals and protective measures of the installed SIMOREG DC-MASTER system

◆Observe Siemens warnings for grounded electronics and permitted external signals

◆Confirm the drive product state before board or software replacement

FIRMWARE & UPDATES

◆C98043-A7001-L2 is documented for software version 3.0 and later

◆For product state A3, load only compatible 3.xx software packages

◆Read the installed software version from SIMOREG parameters r060 and r065 before updating

CONFIGURATION & PROGRAMMING

◆Parameterize armature and field control through the SIMOREG parameter set

◆Use G-SST1 at X300 and G-SST2 at terminals 56 to 60 as documented

◆Configure pulse-encoder evaluation and analog channels for the connected feedback devices

OFFICIAL TECHNICAL DATA

Board function CUD1 control electronics	System SIMOREG DC-MASTER 6RA70	Software family 3.xx and later	Serial channel 1 G-SST1 at X300
Serial channel 2 G-SST2 terminals 56–60	Encoder input Differential A/A− and B/B−	Analog channels Inputs and outputs	Binary outputs 24 V transistor outputs

Siemens SIMOREG DC-MASTER operating and fault-diagnostics documentation.
