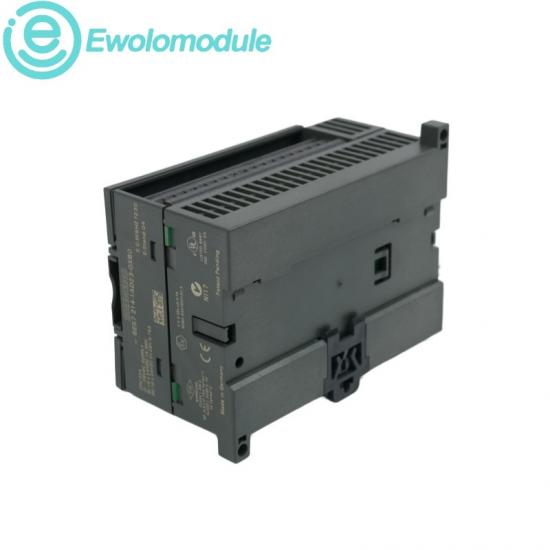

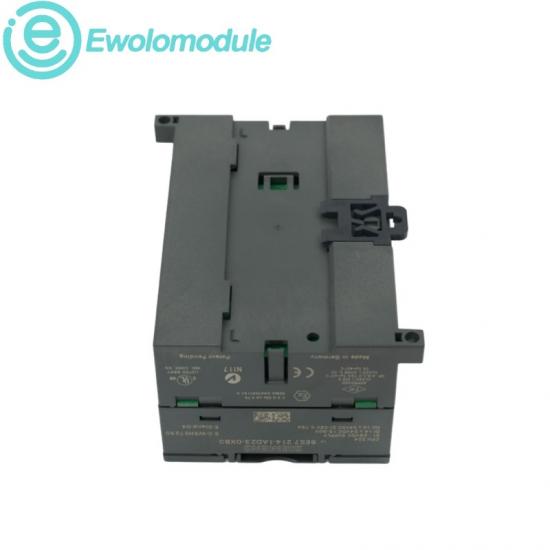

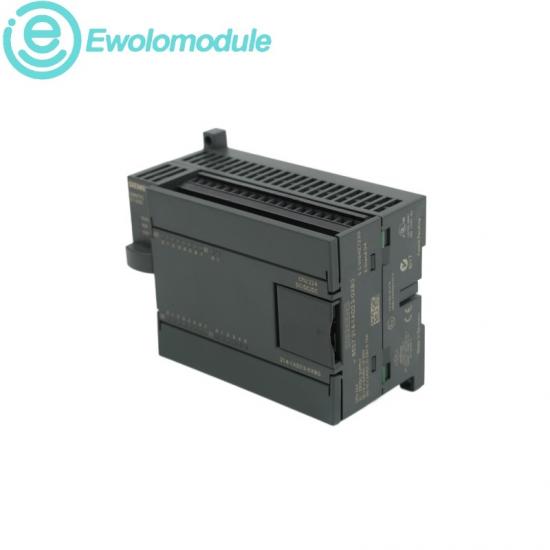

6ES7214-2AD23-0XB0

SIMATIC S7-200 CPU 224XP DC/DC/DC Compact CPU

PRODUCT SNAPSHOT

The Siemens 6ES7214-2AD23-0XB0 is a SIMATIC S7-200 CPU 224XP compact controller with a 24 V DC supply. It integrates 14 digital inputs, 10 transistor outputs, two analog inputs and one analog output for small automation tasks without extensive external I/O.

Two RS485 interfaces support PPI, MPI-slave and freely programmable Freeport communication, while onboard high-speed counters and pulse outputs extend its motion-oriented capabilities. The CPU provides 12/16 KB program memory, 10 KB data memory and LAD, FBD or STL programming for flexible machine-control implementation.

DIRECT CONTACT

☎ +86 17359287459 ✉ sales9@apterpower.com

RELATED MODELS

COMPLIANCE · LIFECYCLE · ENGINEERING

Certified operation, controlled updates, precise setup

CERTIFICATION & STANDARDS

◆IP20 degree of protection according to EN 60529

◆Siemens lists EU conformity, EAC, ATEX and FM approvals for the product family

◆Marine approvals include BV, DNV, GL, LR, NK and RMRS for documented variants

FIRMWARE & UPDATES

◆Back up the STEP 7-Micro/WIN project before CPU replacement

◆Check CPU hardware and firmware identification before restoring a project

◆Retain compatible S7-200 program blocks, system block and data block

CONFIGURATION & PROGRAMMING

◆Program in LAD, FBD or STL with STEP 7-Micro/WIN

◆Configure both RS485 ports for PPI, MPI-slave or Freeport communication as required

◆Assign integrated high-speed counters, pulse outputs and analog channels in the project

OFFICIAL TECHNICAL DATA

Supply voltage 24 V DC	Digital inputs 14	Digital outputs 10 transistor	Analog inputs 2
Analog outputs 1	Program memory 12/16 KB	Data memory 10 KB	Communication 2×PPI/Freeport

Siemens S7-200 system manual and product data sheet for 6ES7214-2AD23-0XB0.

BRAND VALUE · APPLICATION MAP

Engineering strengths and where this model fits

BRAND CHARACTERISTICS	APPLICATION FIELDS
◆Compact Siemens PLC integrates digital, analog and communication functions	◆Compact machine and production-cell control
◆Dual RS485 ports support flexible controller, HMI and third-party connectivity	◆Conveyors, packaging lines and handling systems
◆Integrated high-speed functions reduce the need for separate technology modules	◆Pump, compressor and utility automation
◆Mature S7-200 engineering supports long-running installed equipment	◆Legacy S7-200 maintenance and controlled retrofit projects
