PRODUCT DETAILS

6AV6643-0CB01-1AX2

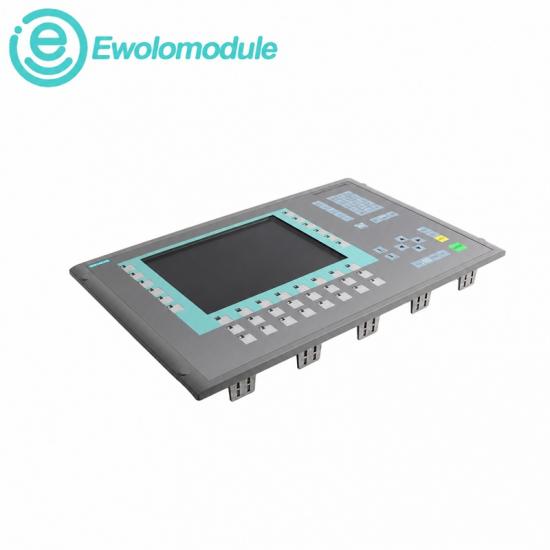

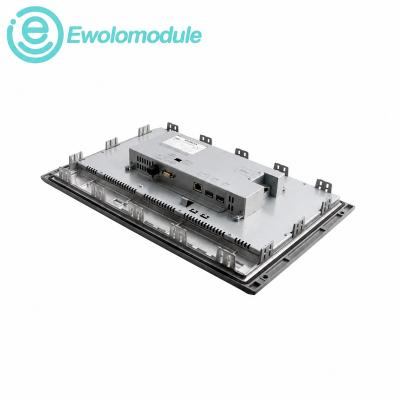

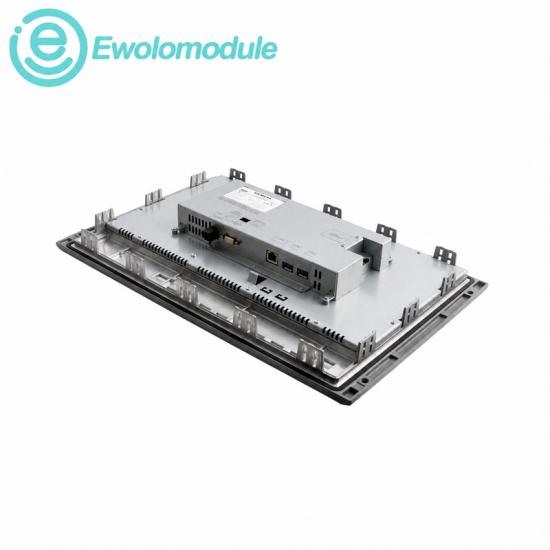

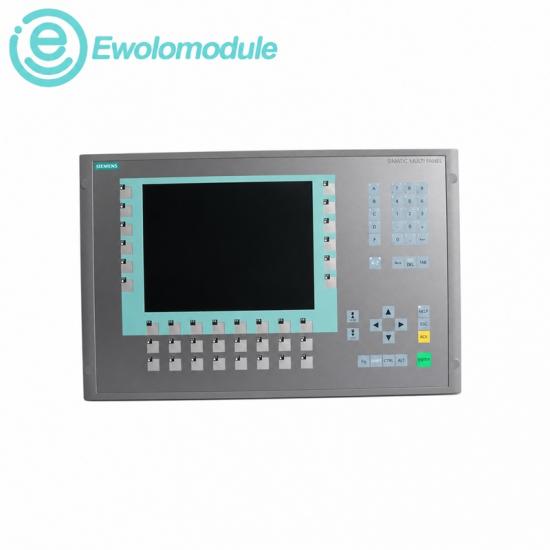

SIMATIC MP 277 8-inch Touch Multi Panel

PRODUCT IDENTITY

Siemens 6AV6643-0CB01-1AX2 SIMATIC MP 277 8-inch Touch Multi Panel

A retentive-memory operator panel with a 7.5-inch touch display, 6 MB configuration memory and industrial communication interfaces.

Product series: SIMATIC HMI MP 277 Multi Panel

Tel: +86 17359287459

Email: sales9@apterpower.com

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Operating conditions, installation and core data

OPERATING ENVIRONMENT

◆Operate from 0 to 50 °C when vertically installed or up to 40 °C when inclined

◆Relative humidity range is 10–90% without condensation

◆The correctly installed front meets IP65 while the rear is IP20

INSTALLATION & UPGRADE

◆Panel-mount in a 22.6 × 16.6 cm cutout with the specified ventilation clearances

◆Configure with WinCC flexible 2008 SP3 Update 5 or WinCC Comfort V13 HSP

◆Migration to TP900 Comfort requires checking the larger cutout and front-frame dimensions

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION

SIMATIC MP 277 8-inch Touch

DISPLAY

7.5-inch TFT

RESOLUTION

640 × 480 pixels

COLORS

64K

CONFIGURATION MEMORY

6 MB

OPERATING SYSTEM

Microsoft Windows CE 5.0

SUPPLY RANGE

20.4–28.8 V DC

INTERFACES

RS422/485, 2 × USB, RJ45 Ethernet

RECOMMAND

Safety, efficiency and related models

SAFETY & COMPLIANCE

◆Official documentation lists ATEX certification for the stated installation conditions

◆UL 508, CSA and the listed hazardous-location approvals apply according to the nameplate

◆IEC 61131-2 and the applicable Class A EMC requirements are documented

PERFORMANCE EFFICIENCY

◆The 7.5-inch VGA display provides 640 × 480 pixels and 64K colors

◆RS422 or RS485 communication supports up to 12 Mbit/s

◆Ethernet supports 10/100 Mbit/s with typical current consumption around 0.6 A

6AV6643-0CB01-1AX2 Touch Panel

HMI Touch Panel Datasheet
