PRODUCT DETAILS

6GK5761-1FC00-0AA0

SCALANCE W761-1 RJ45 IWLAN Access Point

PRODUCT IDENTITY

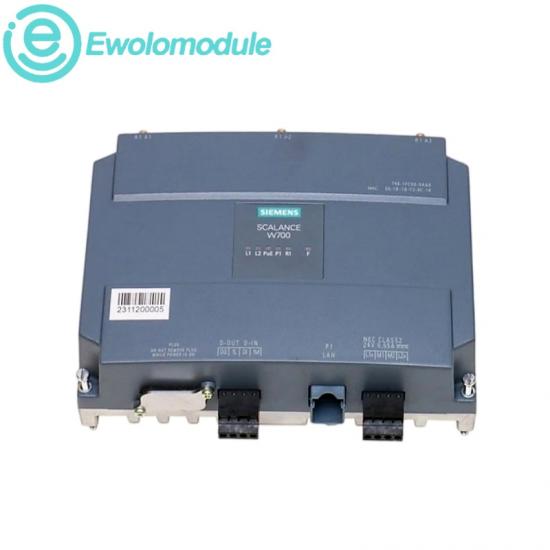

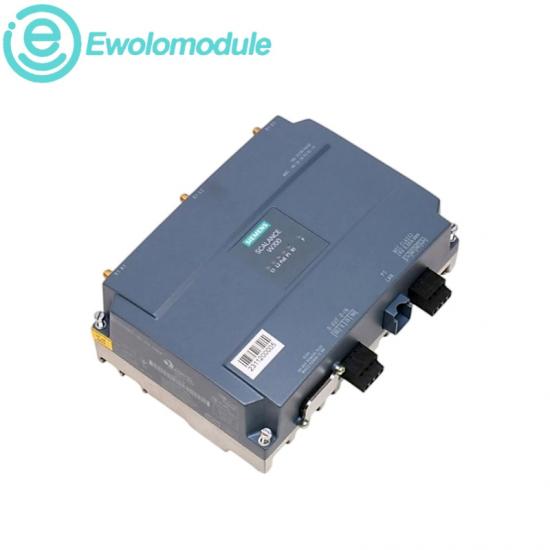

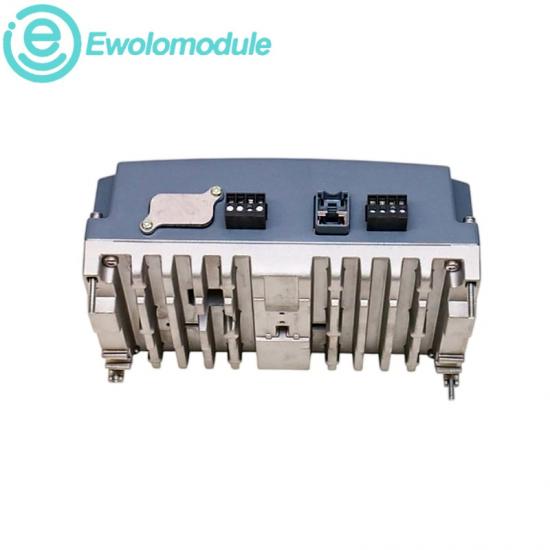

Siemens 6GK5761-1FC00-0AA0 SCALANCE W761-1 RJ45 IWLAN Access Point

A control-cabinet Industrial Wireless LAN access point with one radio, one antenna port and a 10/100 Mbit/s RJ45 interface.

Product series: SCALANCE W760 and W720 IEEE 802.11n

Tel: +86 17359287459

Email: sales9@apterpower.com

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Operating conditions, installation and core data

OPERATING ENVIRONMENT

◆Operate from 0 to 55 °C with IP20 protection

◆Transport and store from −40 to 85 °C at up to 95% relative humidity without condensation

◆Zone 2 use requires installation inside an enclosure providing at least IP54 protection

INSTALLATION & UPGRADE

◆Mount on a 35 mm DIN rail and connect the supplied 24 V DC screw terminal

◆Wall mounting and S7-300 or S7-1500 rails are not supported

◆For modernization, Siemens names 6GK5762-1AJ00-6AA0 as the Wi-Fi 6 successor

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION

SCALANCE W761-1 RJ45

RADIO / ANTENNA

1 radio / 1 R-SMA port

WLAN STANDARDS

IEEE 802.11a/b/g/h/n

FREQUENCY BANDS

2.4 GHz and 5 GHz

WLAN RATE

Up to 150 Mbit/s

ETHERNET

1 × RJ45, 10/100 Mbit/s

SUPPLY RANGE

19.2–28.8 V DC

SECURITY

WPA, WPA2, 802.1X and AES

RECOMMAND

Safety, efficiency and related models

SAFETY & COMPLIANCE

◆EU declarations cover RED, ATEX and RoHS requirements

◆FM Class I Division 2 and Zone 2 approvals apply under the marked conditions

◆UL and CSA plus the stated ATEX approval are documented; country radio approvals remain version-specific

PERFORMANCE EFFICIENCY

◆Wireless gross data rate reaches 150 Mbit/s

◆The RJ45 Industrial Ethernet interface supports 10/100 Mbit/s

◆Typical power loss is 3.6 W at 24 V DC

6GK5761-1FC00-0AA0 IWLAN Access Point

Wireless Access Point Datasheet
