PRODUCT DETAILSSIEMENS

ARTICLE NUMBER

6AV6648-0BC11-3AX0

Warranty: One year • Availability: In stock

OFFICIAL PRODUCT NAME

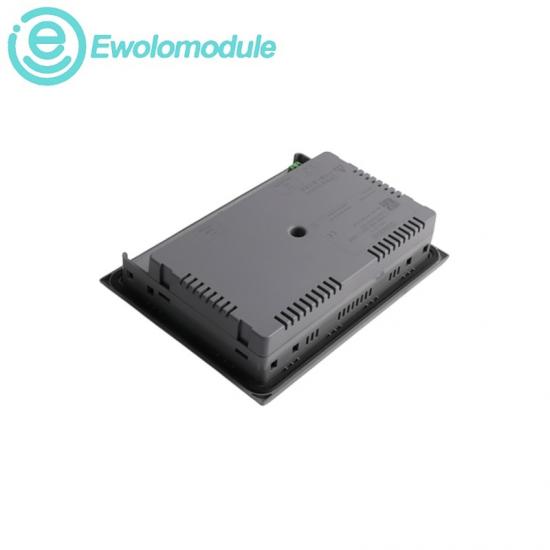

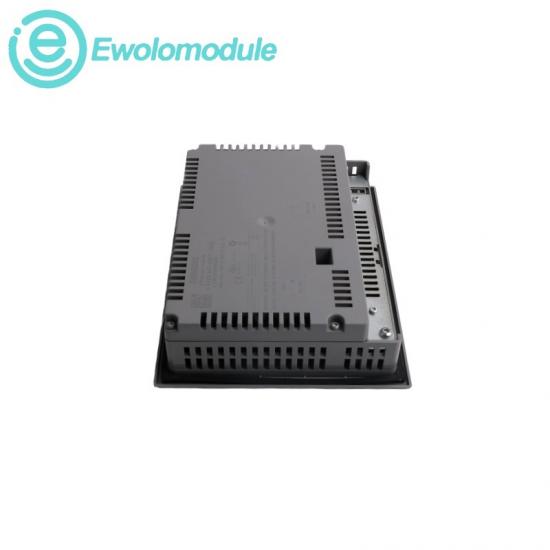

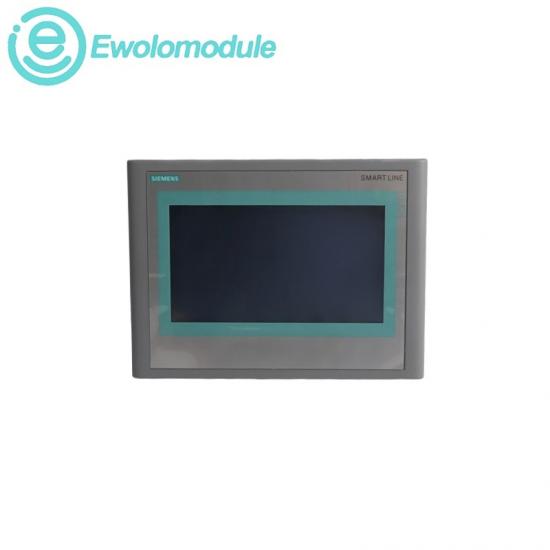

SIMATIC HMI SMART 700 IE Touch Panel

SIMATIC HMI SMART Panels

Description: Provides touchscreen machine operation through a 7-inch widescreen TFT display with RS422/485 and Ethernet connectivity.

Tel : +86 17359287459Email : sales9@apterpower.com

SPECIFICATIONS / OFFICIAL ENGINEERING DATA

6AV6648-0BC11-3AX0 FUNCTIONAL PROFILE

The SMART 700 IE is a 7-inch widescreen touch panel for operator control and monitoring. Its 65,536-color TFT display, RS422/485 interface and RJ45 Ethernet interface support compact machine visualization.

OFFICIAL TECHNICAL DATA

Article number

6AV6648-0BC11-3AX0

Product type

KEY-PLUG XM-400 Layer 3 Routing

Compatible platform

SCALANCE XM-400

Storage medium

KEY-PLUG

Storage capacity

256 MiB

Layer 3 activation

Supported

Configuration storage

Supported

Device replacement support

Supported

Degree of protection

IP20

Lifecycle status

Phase-out since 01.10.2025

OPERATING ENVIRONMENT

Install in an enclosed operator station and maintain the ambient conditions specified in the SMART Panel operating instructions. Protect the front and cable entries from condensation and conductive contamination.

INSTALLATION & UPGRADE

Mount in the documented panel cutout, connect 24 V DC, RS422/485 and Ethernet as required, and restore a verified WinCC flexible project. Confirm communication settings before replacing an existing panel.

RECOMMAND

SAFETY & COMPLIANCE

The product carries CE certification and is RoHS-compliant since 23.11.2016. Commission only with the documented supply, protective grounding and enclosure installation.

PERFORMANCE EFFICIENCY

The 7-inch 65,536-color touchscreen consolidates local visualization and operation, while serial plus Ethernet connectivity reduces the need for separate protocol interfaces.
