SIEMENS · PRODUCT DETAILS

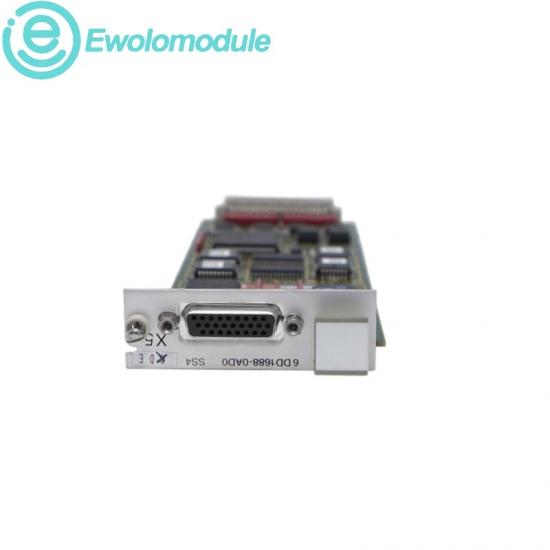

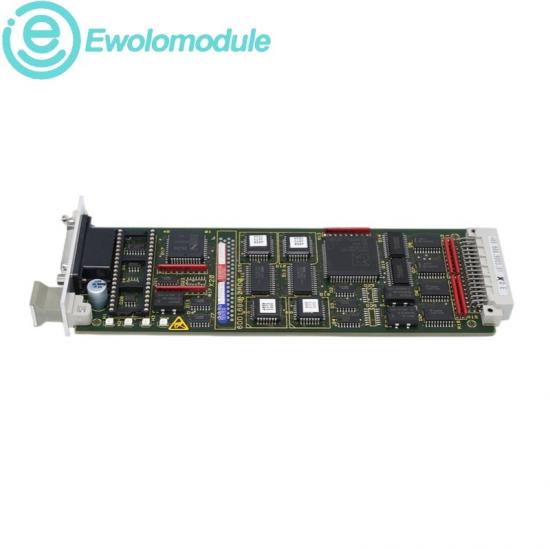

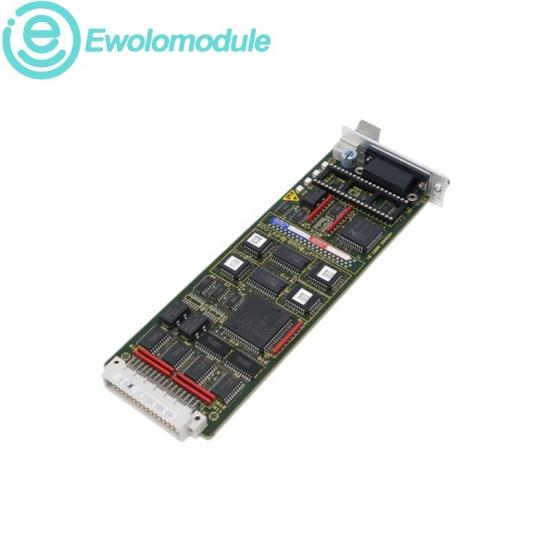

SIMADYN D SS4 Communication Submodule

6DD1688-0AD0

PRODUCT IDENTITY

A SIMADYN D SS4 communication submodule for the CS7 carrier, supporting Siemens DUST 1, 2, 3 and 7 protocols for legacy industrial communication tasks.

☎ +86 17359287459

✉ sales9@apterpower.com

RELATED MODELS

DIAGNOSTICS · INSTALLATION

Communication diagnostics and controlled CS7 installation

DIAGNOSTICS & PROTECTION

◆ Check the CS7 carrier and communication status before module exchange

◆ Confirm the selected DUST protocol and peer configuration

◆ Inspect interface cabling and shared-memory exchange during diagnosis

INSTALLATION & UPGRADE

◆ De-energize the SIMADYN D system before fitting the SS4

◆ Match the CS7 slot, protocol assignment and interface wiring

◆ Recommission the communication channel before enabling process control

OFFICIAL TECHNICAL DATA

Product typeSS4 communication submodule	SystemSIMADYN D	Carrier moduleCS7	ProtocolsDUST 1, 2, 3 and 7
FunctionIndustrial communication	Product statusSpare part	LifecycleEnd of product lifecycle	ManufacturerSiemens

Official data based on Siemens SIMADYN D documentation and the SiePortal record for 6DD1688-0AD0.

BRAND CHARACTERISTICS · APPLICATION AREAS

Automation reliability and practical system fit

BRAND CHARACTERISTICS

◆ Purpose-built SIMADYN D communication hardware

◆ Protocol support for established Siemens control installations

◆ Modular CS7 integration for maintainable communication paths

APPLICATION AREAS

◆ Legacy SIMADYN D system communication

◆ Industrial drive and process-control networks

◆ Control-rack repair and migration support
