PRODUCT DETAILS · SIEMENS SIMATIC ET 200SP HA

6DL1133-6EW00-0EH1

AI-DI16/DQ16x24VDC HART Module

PRODUCT IDENTITY

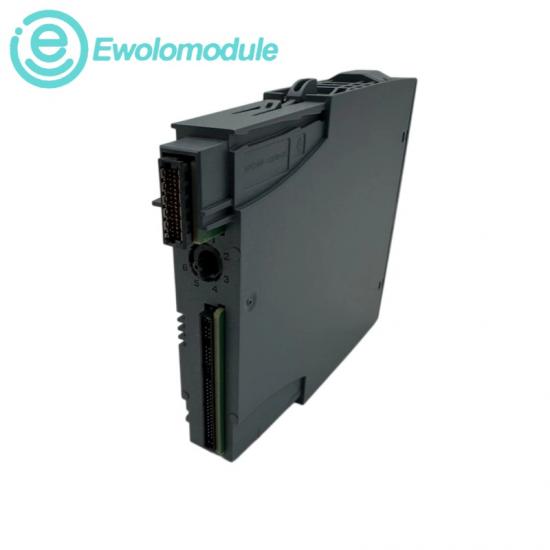

Siemens 6DL1133-6EW00-0EH1 SIMATIC ET 200SP HA AI-DI16/DQ16x24VDC HART Module is a configurable high-availability I/O module combining analog/HART acquisition with sixteen digital inputs and sixteen 24 V DC outputs.

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Configuration and compatibility

PRODUCT DESCRIPTION

This configurable ET 200SP HA module adapts its channels for mixed process acquisition and control duties, combining analog current and HART functions with digital input/output operation. Counter and frequency-measurement modes extend its use in high-availability process automation stations.

SYSTEM COMPATIBILITY

◆ SIMATIC ET 200SP HA station

◆ Terminal blocks H1, M1, P0 or N0

◆ HART process instrumentation

◆ 24 V DC digital field circuits

OFFICIAL TECHNICAL DATA

MODULE TYPE AI-DI 16 / DQ 16×24 V DC HART HA	DIGITAL INPUTS 16
DIGITAL OUTPUTS 16	COUNTER MODE Up to 8 counters, 5 kHz
RATED VOLTAGE 24 V DC	OUTPUT CURRENT Max. 0.5 A per channel
MODULE OUTPUT CURRENT Max. 2 A	ANALOG RANGES 0–10, 0–20 and 4–20 mA
POWER LOSS Typically 4.5 W	ISOLATION TEST 1500 V DC for 1 minute

RECOMMAND · APPLICATION GUIDANCE

Operation guidance and related models

DIAGNOSTICS & PROTECTION

Use channel diagnostics, HART status, counter flags and electronic short-circuit messages to isolate field wiring or load faults.

OPERATING ENVIRONMENT

Horizontal operation is specified from −40 to 70 °C with derating; vertical operation is specified from −40 to 60 °C.

From identification to secure dispatch

SERVICE PROCESS

Identify

Confirm the complete model and installed configuration.

Verify

Check revision, condition and compatibility details.
