PRODUCT DETAILS · SIEMENS SIMATIC DP ET 200M

6ES7331-7TF00-0AB0

SM 331 HART Analog Input Module

PRODUCT IDENTITY

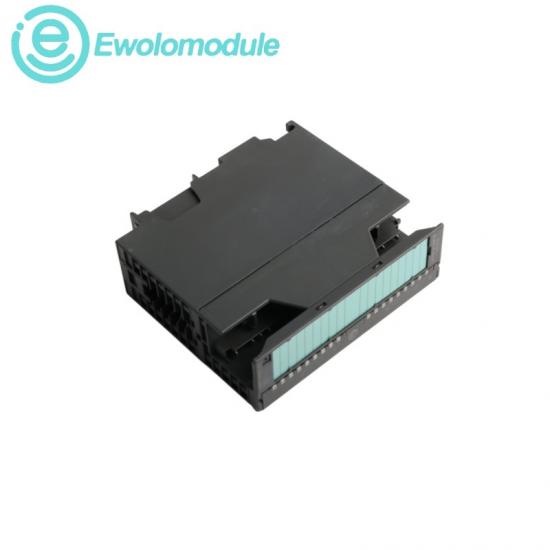

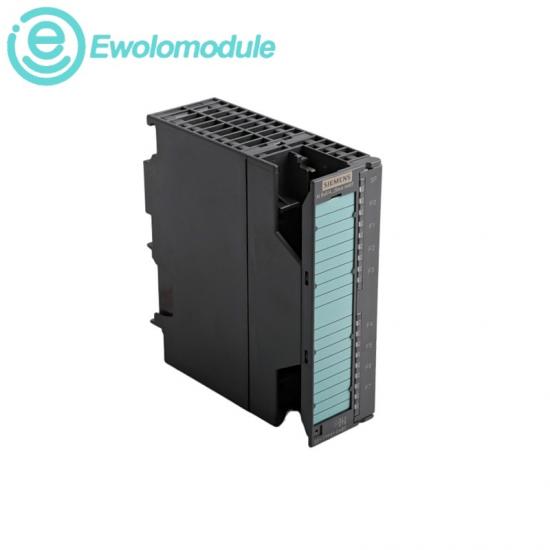

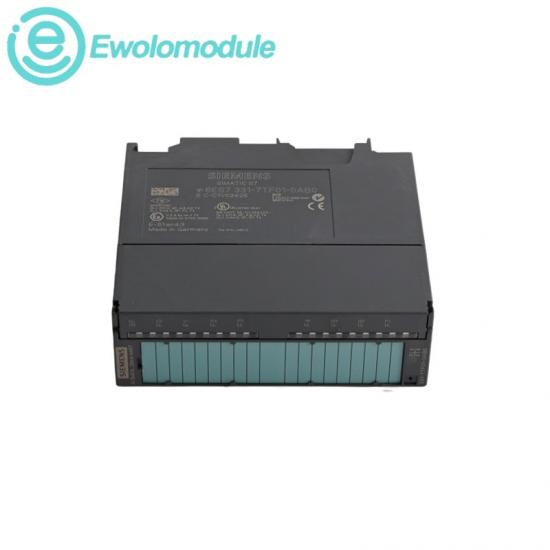

Siemens 6ES7331-7TF00-0AB0 SIMATIC DP SM 331 HART Analog Input Module is an eight-channel HART current input module for 0/4–20 mA process transmitters in ET 200M distributed I/O stations.

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Configuration and compatibility

PRODUCT DESCRIPTION

The SM 331 HART acquires eight analog current values while enabling bidirectional HART communication with one field device per channel. Installed in an ET 200M station with IM 153-2, it supports standard current ranges and supplies diagnostic information for process measurement loops.

SYSTEM COMPATIBILITY

◆ SIMATIC ET 200M with IM 153-2

◆ Eight HART field devices, one per channel

◆ 0/4–20 mA process current loops

◆ 20-pole front connector

OFFICIAL TECHNICAL DATA

MODULE DESIGNATION SM 331 HART	PRODUCT FAMILY SIMATIC DP ET 200M
ANALOG INPUTS 8	SIGNAL RANGES 0–20, ±20 and 4–20 mA
HART SUPPORT One device per channel	INPUT RESISTANCE 125 Ω
LOAD SUPPLY 24 V DC	BACKPLANE CURRENT Max. 120 mA at 5 V
POWER LOSS Typically 1.5 W	MAX. INPUT CURRENT 40 mA

RECOMMAND · APPLICATION GUIDANCE

Operation guidance and related models

DIAGNOSTICS & PROTECTION

Use channel diagnostics and HART status to distinguish wiring, loop-supply, transmitter and communication faults before module exchange.

OPERATING ENVIRONMENT

Install in the approved ET 200M configuration with IM 153-2, correct shielding and 24 V DC load supply for stable process measurement.

From identification to secure dispatch

SERVICE PROCESS

Identify

Confirm the complete model and installed configuration.

Verify

Check revision, condition and compatibility details.
