Product DetailsSIEMENS

SIMATIC ET 200SP HA / Analog input

6DL1134-6JH00-0EH1

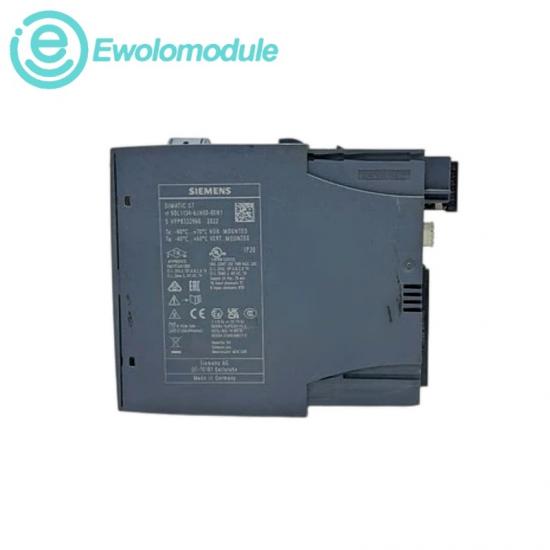

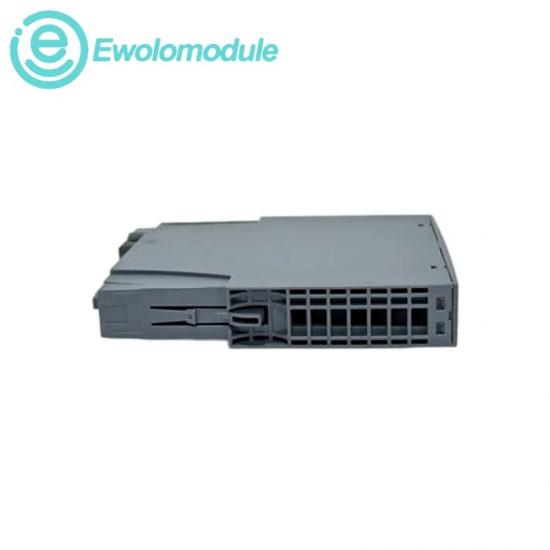

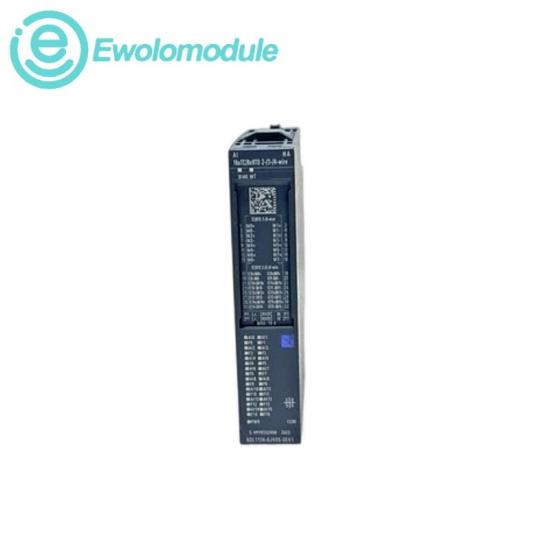

SIMATIC ET 200SP HA AI 16xTC/8xRTD 2-/3-/4-wire HA Analog Input Module

A process-input module for integrating temperature measurement into high-availability automation.

Condition

New Original

Warranty

One year

In stock

Official data source / Siemens equipment manual · 09/2021 · EH1 technical data

Specifications

Technical data, in context

Input configuration

16 TC / 8 RTD; 2-, 3- or 4-wire

Engineering system

SPPA-T3000 from V8.0

Terminal-block types

H1 and M1

Redundancy capability

Supported with terminal block M1

Supply voltage

24 V DC; permissible 19.2–28.8 V DC

Current consumption

Maximum 100 mA

Input address space

64 bytes + 2 bytes quality information

Voltage input ranges

±1 V; ±250 mV; ±50 mV; ±80 mV

Voltage resolution

16 bit including sign

Temperature units

Configurable °C / °F / K

Product description

The module acquires field temperature and low-level analog measurements. Channel configuration adapts the measurement method and signal processing to the connected sensor.

Product positioning

Temperature acquisition in high-availability process systems.

Suffix identity

The EH1 data table specifies SPPA-T3000 engineering; the PH1 variant is a separate article.

System connection

Use the specified ET 200SP HA terminal block and compatible configured sensors.

Selectable compensation

Thermocouple reference compensation can be configured.

Channel smoothing

Measured-value smoothing can be selected for each channel.

Firmware maintenance

The official record supports firmware updates and identification data.

Recommand

Applications & model directory

Thermal processes

Monitor temperatures at field measurement points.

Power generation

Integrate measurements into qualified process control.

Process instrumentation

Acquire thermocouple and resistance-sensor signals.

Plant maintenance

Match module and terminal-block configurations.
