Product DetailsSIEMENS

SIMATIC NET / S7-300 Industrial Ethernet

6GK7343-1GX21-0XE0

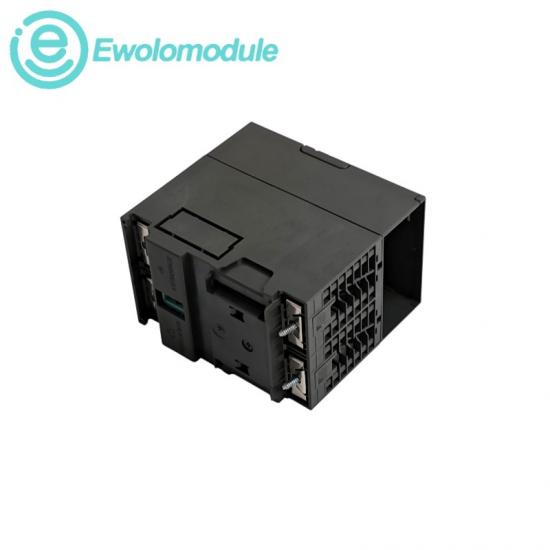

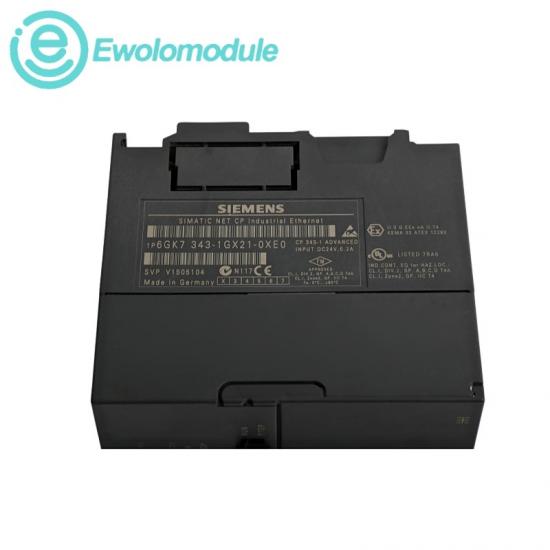

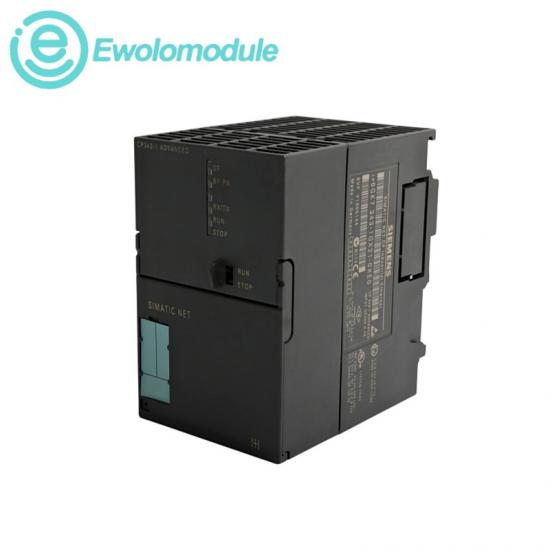

SIMATIC NET CP 343-1 Advanced Communications Processor

An Industrial Ethernet communications processor for extending established SIMATIC control networks.

Condition

New Original

Warranty

One year

In stock

Official data source / Siemens CP 343-1 Advanced manual · 02/2006 · Part B3A

Specifications

Technical data, in context

Ethernet rate

10 / 100 Mbit/s

Ethernet connection

RJ45 jack

Supply voltage

24 V DC ±5%

Backplane current

200 mA typical

External supply current

200 mA maximum

Power loss

Approximately 5.8 W

Operating temperature

0°C to +60°C

Storage temperature

−40°C to +70°C

Relative humidity

Maximum 95% at +25°C

C-PLUG flash file system

28 MB

Product description

The CP provides controller networking, engineering access and process-data exchange. Its services include PROFINET IO, PROFINET CBA and S7 communication.

Product positioning

Ethernet connectivity for existing SIMATIC installations.

Suffix identity

GX21 identifies the Advanced version covered by the cited manual; later GX30/GX31 data is not substituted.

System connection

Connects through the S7-300/C7-300 backplane and Industrial Ethernet cabling.

Configurable networking

STEP 7 supports connection and IP configuration.

Network supervision

SNMP queries support network-management access.

Time coordination

SIMATIC or NTP synchronization can align controller time.
