SIEMENSSIMATIC ET 200SP HA

01 / PRODUCT DETAILS

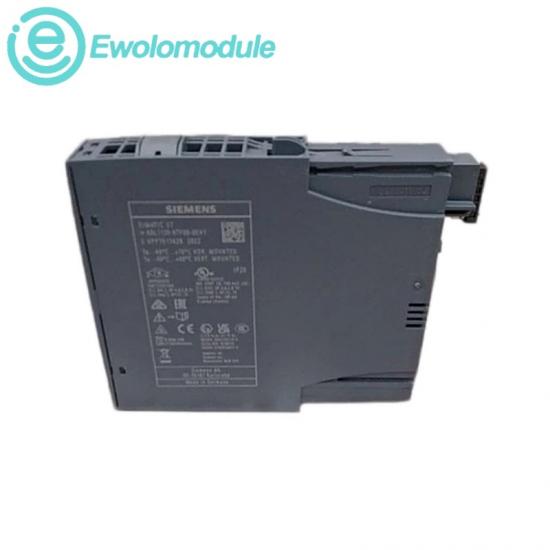

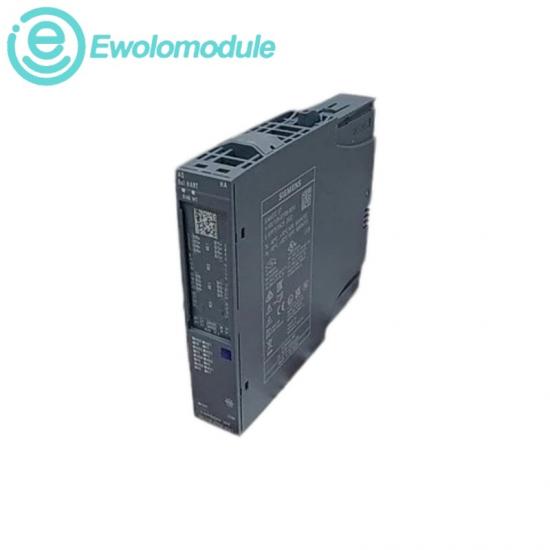

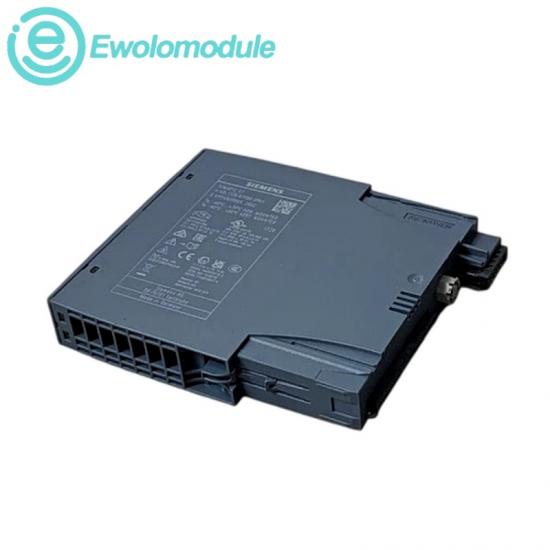

6DL1135-6TF00-0EH1

AQ 8xI HART HA Analog Output Module

A field-output module for power-plant process automation.

ConditionNew Original

WarrantyOne year

In stock1

Official data sourcesSiemens AQ 8xI HART HA Manual · Siemens equipment manual, 10/2021

Technical record

02 / SPECIFICATIONS

Product position

Current setpoints drive field actuators; HART communication adds access to their device information.

Output channels

Analog outputs8 current channels

Output ranges0–10 mA, 0–20 mA, 4–20 mA

ResolutionUp to 16 bits, including sign

Resistive load750 Ω maximum

Supply & operating limits

Rated supply24 V DC; permitted 19.2–28.8 V

Current consumption350 mA max. at 8 × 24 mA / 750 Ω

Power loss3.2 W typical

Horizontal operation−40°C to +70°C

Ordering code note

The 0EH1 variant is specified for SPPA-T3000 engineering. Preserve this suffix when matching an installed station.

System connection

SPPA-T3000 integration starts at V8.0. Use the specified H1 or M1 terminal block; redundant I/O requires M1.

Diagnostics

Channel-specific fault indication.

Device records

I&M identification data supported.

Output behavior

Configurable substitute values.
