SIEMENSSCALANCE X-200

01 / PRODUCT DETAILS

6GK5224-0BA00-2AA3

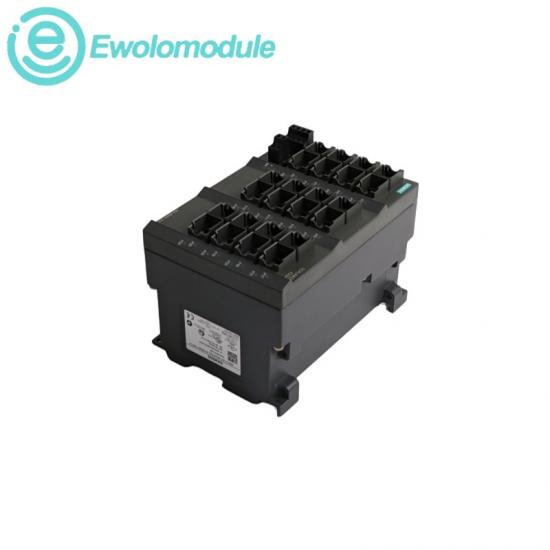

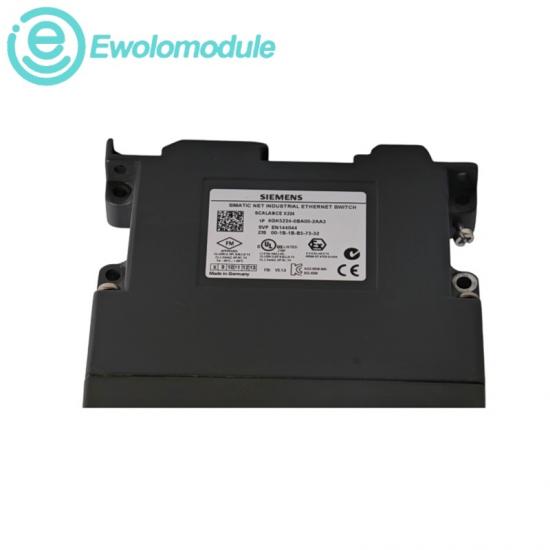

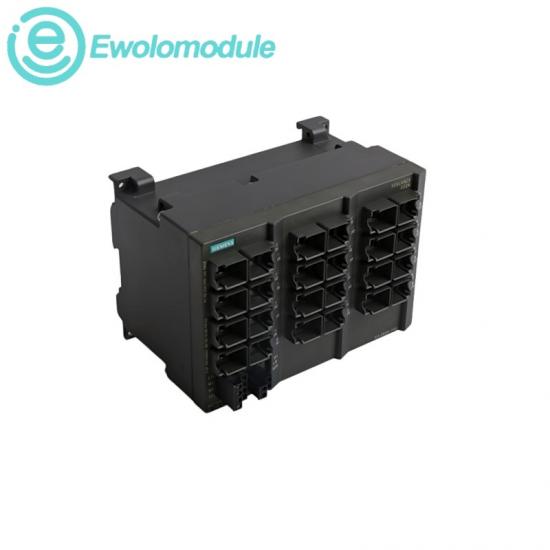

SCALANCE X224 Managed Industrial Ethernet Switch

A managed network component for connecting industrial equipment.

ConditionNew Original

WarrantyOne year

In stock1

Official data sourcesSiemens X224 technical data sheet · Siemens X-200 migration guide

Technical record

02 / SPECIFICATIONS

Product position

The switch aggregates plant devices and provides network management and PROFINET diagnostics for an industrial installation.

Network & enclosure

Copper ports24 × RJ45

Link rates10 / 100 Mbit/s

PROFINET classConformance Class B

Enclosure protectionIP30

Electrical & environmental

Supply24 V DC, redundant connection

Maximum current0.35 A

Rated power loss8.4 W

Operating temperature−40°C to +60°C

Ordering code note

The complete 2AA3 article identifies the X224. The XC224 successor is a different product with different installation requirements.

System connection

Connect to the approved Industrial Ethernet topology. Configuration can use STEP 7, the command line or web management; C-PLUG storage is optional.

Network continuity

MRP ring support.

Troubleshooting

Port mirroring and statistics.

Fault signaling

Dedicated signaling contact.
