SIEMENSSIMATIC NET / S7-300

01 / PRODUCT DETAILS

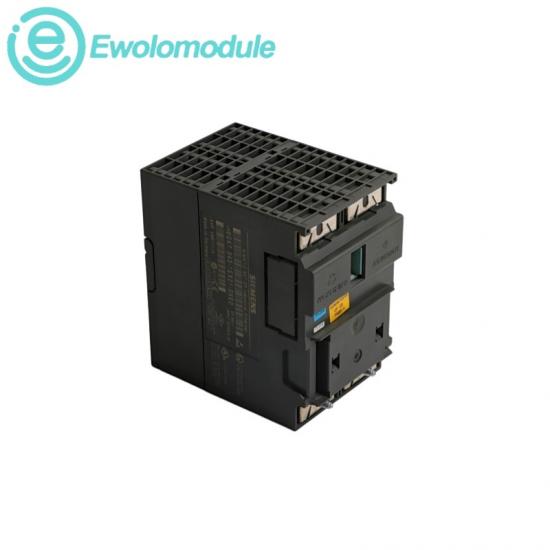

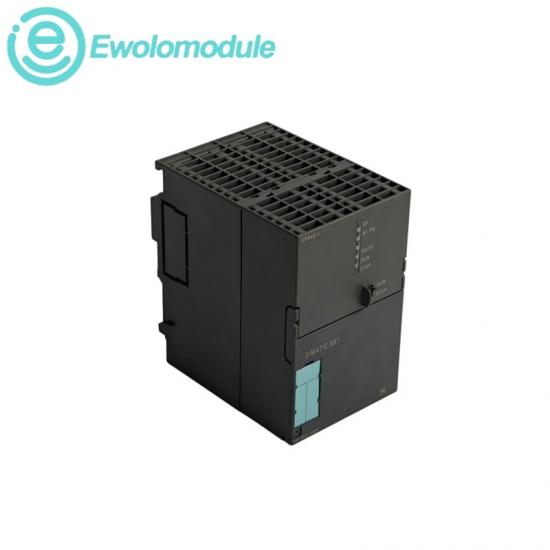

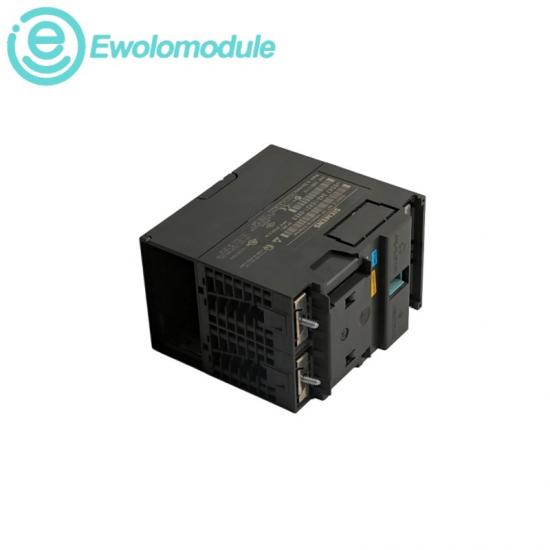

6GK7343-1EX21-0XE0

CP 343-1 Industrial Ethernet Communication Processor

A communication processor for connecting a controller to the plant network.

ConditionNew Original

WarrantyOne year

In stock1

Official data sourcesSiemens CP 343-1 Manual, 02/2006 · Siemens S7-CP version history

Technical record

02 / SPECIFICATIONS

Product position

The processor handles Ethernet services and PROFINET communication for a supported controller while exposing diagnostic functions.

Communication resources

Ethernet interface1 × RJ45

Link rates10 / 100 Mbit/s

Total connections48 maximum

PROFINET roleIO controller; CBA support

Power & operating limits

External supply24 V DC ±5%

External supply current200 mA maximum

Power lossApproximately 5.8 W

Operating temperature0°C to +60°C

Ordering code note

EX21 denotes the device generation documented in manual B3S. Preserve the full article number; do not assume the EX30 hardware is identical.

System connection

Use a listed S7-300 or C7-300 CPU and a supported STEP 7 / NCM S7 version. PROFINET operation requires full-duplex network configuration.

Configuration storage

Optional exchangeable C-PLUG.

Access control

IP access protection support.

Service diagnostics

SNMP agent and diagnostic functions.
