01 / Product Details

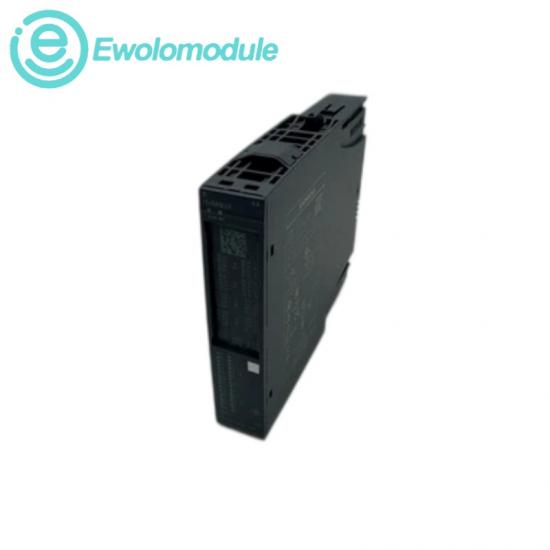

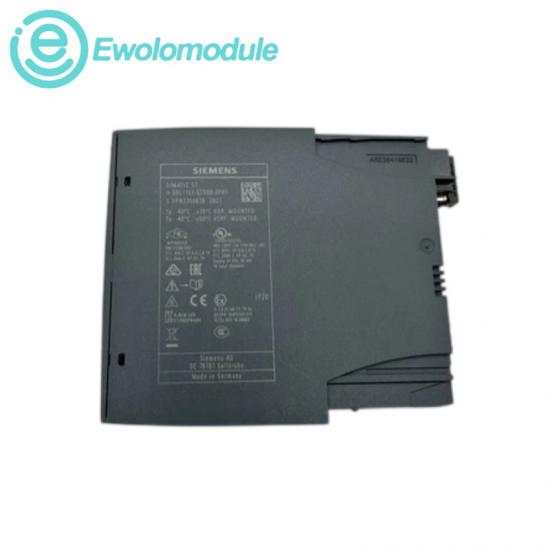

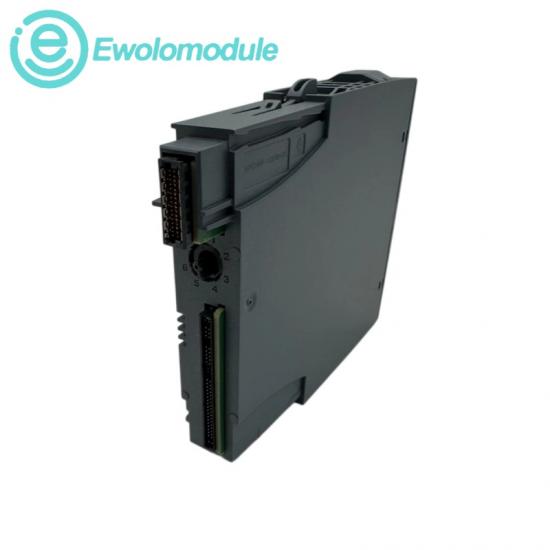

Siemens

SIMATIC ET 200PA SMART+

6DL1164-6GH00-0PH1

AI 16xI 2-wire PA Analog Input Module

A current-input module for distributed process instrumentation.

ConditionNew Original

WarrantyOne year

In stock1

Official sources

Siemens Equipment Manual A5E52079029-AA · 06/2024 Siemens PCS 7 Released Modules V10.0 SP1

Specifications

Signal acquisition & integration

Converts transmitter-loop signals into process values and channel-quality information for the automation system.

Analog inputs

16 current channels

Measuring ranges

0–10 mA / 0–20 mA / 4–20 mA

Conversion resolution

15–16 bits including sign; range and noise-suppression dependent

Supply voltage

24 V DC; permitted 19.2–28.8 V

Rated current consumption

350 mA

Typical power loss

0.6 W

Input address space

34 bytes: 32 process data + 2 quality information

Operating temperature

−40 to +70°C horizontal; −40 to +60°C vertical; observe derating

Ordering code

Keep the complete article number when selecting a replacement. The cited equipment manual does not define individual suffix meanings.

System connection

Use an approved ET 200PA SMART+ terminal block, ordered separately. I/O redundancy is not supported.

Value status

Quality flags accompany the input data.

Online parameterization

Channel settings can be changed in RUN.

Signal conditioning

Smoothing is selectable for each channel.
