SIEMENS · PRODUCT DETAILS

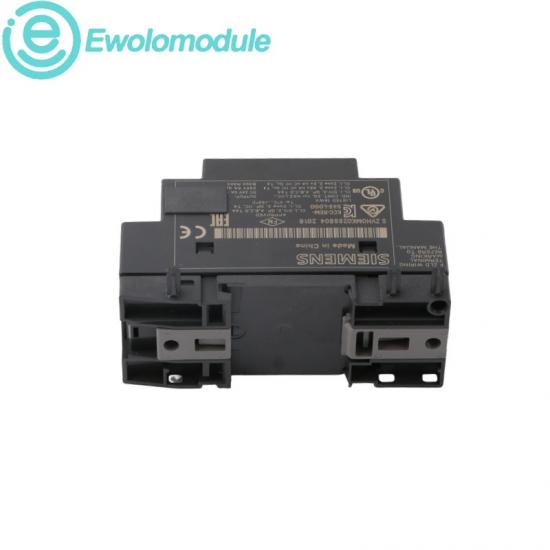

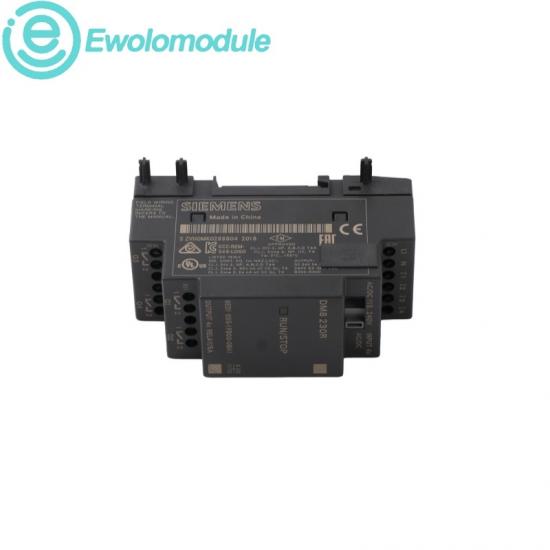

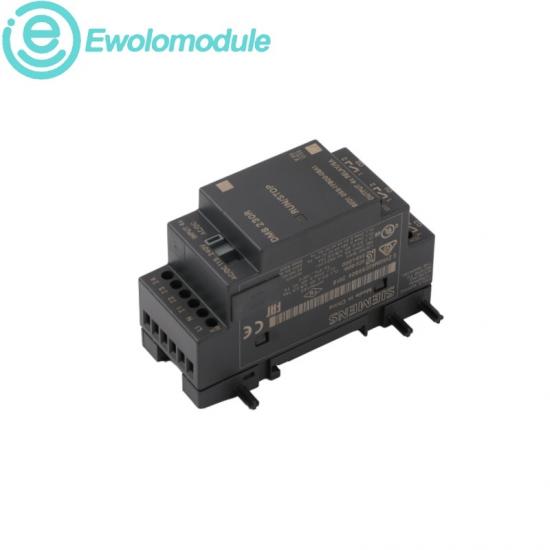

Siemens 6ED1055-1FB10-0BA2 LOGO! DM16 230R 8 DI 8 DO Relay Expansion Module

CONDITIONNew Original

WARRANTYOne year

PRODUCT SNAPSHOT

LOGO! DM16 230R expands a LOGO! 8 system with eight 230 V digital inputs and eight relay outputs in a four-module-wide housing.

The relay outputs support compact control tasks for lighting, building services and small machines when wired within the documented ratings.

DIRECT CONTACT

☎ +86 17359287459 ✉ sales9@apterpower.com

Explore other Siemens products →

CERTIFICATION, STANDARDS & SYSTEM FIT

CERTIFICATIONS & STANDARDS

Siemens technical data lists CE, CSA, UL, FM, marine approvals and development in accordance with IEC 61131. The module provides IP20 protection.

COMPATIBILITY & INTEROPERABILITY

Designed for LOGO! 8 expansion. Power supply and I/O are rated for 230 V, while the eight outputs use relay contacts for AC or DC loads within specified limits.

OFFICIAL TECHNICAL DATA

Digital inputs8 channels	Digital outputs8 relays	Supply / I/O230 V / 230 V
Module width4 MW	Resistive output5 A	Lamp loadUp to 1000 W
ProtectionIP20	Operating range-20 to 55 °C	StandardIEC 61131

BRAND VALUE & APPLICATION MAP

Siemens brand characteristics

◆ Compact LOGO! expansion simplifies small-control projects.

◆ Relay outputs provide flexible load switching.

◆ Broad approvals support diverse installation environments.

◆ Integrated LOGO! engineering supports rapid commissioning.

Application fields

◆ Building automation and lighting control.

◆ Small-machine input and relay expansion.

◆ Pump, fan and auxiliary equipment sequencing.

◆ Control-panel upgrades based on LOGO! 8.
