SIEMENS · PRODUCT DETAILS

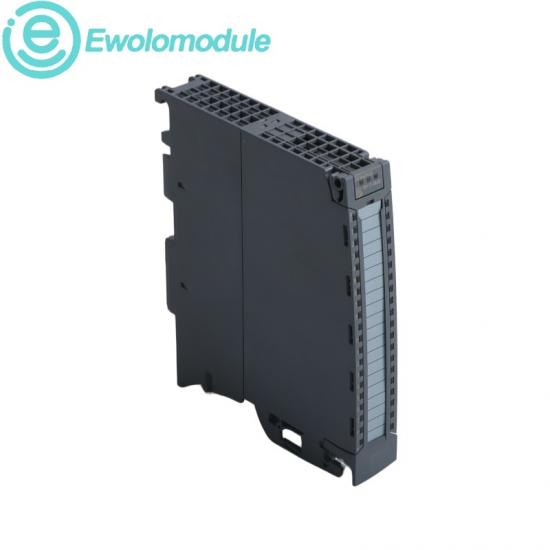

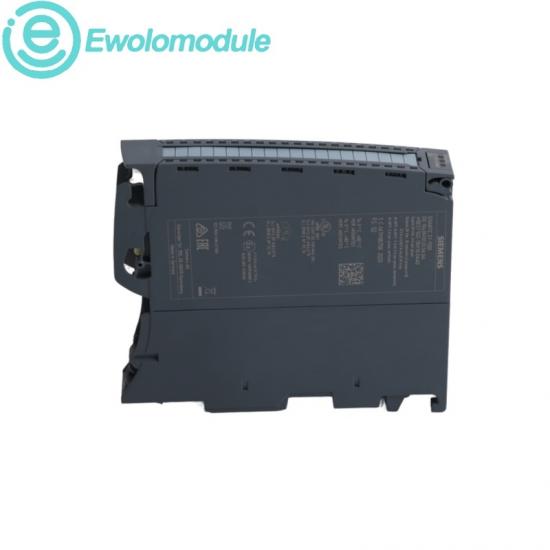

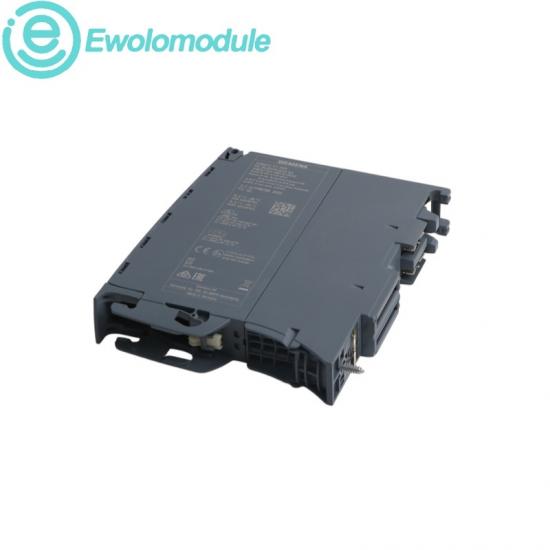

Siemens 6ES7522-1BH01-0AB0 SIMATIC S7-1500 DQ 16x24 V DC 0.5 A HF Digital Output Module

CONDITIONNew Original

WARRANTYOne year

PRODUCT SNAPSHOT

SIMATIC S7-1500 DQ 16x24 V DC/0.5 A HF provides sixteen transistor outputs in two groups of eight for demanding control tasks.

Single-channel diagnostics, substitute values and an operating-cycle counter support transparent maintenance and controlled actuator operation.

DIRECT CONTACT

☎ +86 17359287459 ✉ sales9@apterpower.com

Explore other Siemens products →

CERTIFICATION, STANDARDS & SYSTEM FIT

CERTIFICATIONS & STANDARDS

Siemens lists EU and UK Declarations of Conformity, UL, KC, RCM, EAC and FM approvals. The module supports safety-oriented load-group shutdown up to SIL2 and Category 3 / PL d under the stated standards.

COMPATIBILITY & INTEROPERABILITY

Configurable in STEP 7 TIA Portal from V13 SP1 and in STEP 7 from V5.5 SP3. The front connector is ordered separately and the module integrates with compatible S7-1500 or ET 200MP stations.

OFFICIAL TECHNICAL DATA

Digital outputs16 channels	Output typeTransistor	Rated voltage24 V DC
Current per output0.5 A	Grouping2 groups of 8	Group current4 A
DiagnosticsSingle-channel	FW updateSupported	Safety shutdownSIL2 / PL d

BRAND VALUE & APPLICATION MAP

Siemens brand characteristics

◆ High-feature diagnostics improve maintenance visibility.

◆ TIA Portal integration supports consistent engineering.

◆ Cycle counting helps plan actuator service.

◆ Safety-oriented load-group shutdown extends application coverage.

Application fields

◆ Machine actuator and solenoid control.

◆ High-availability production-line output switching.

◆ ET 200MP distributed output stations.

◆ Applications requiring diagnostic and lifecycle counters.
