DIQ 16x24 V DC/0.5 A, 8xM12

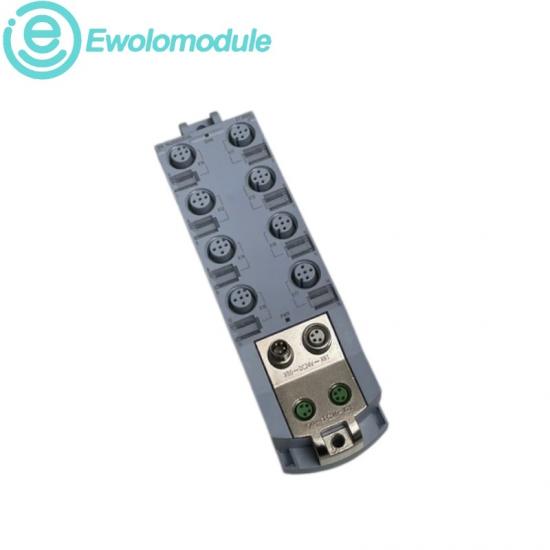

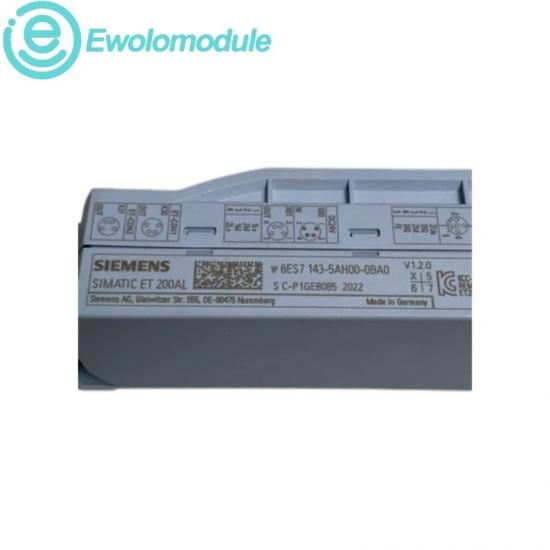

The SIMATIC ET 200AL DIQ module provides sixteen 24 V DC digital channels with DI, DQ and counter operating modes. Eight M12 field connections, separate 1L+ and 2L+ load supplies and ET-Connection interfaces support distributed installation directly on equipment.

Official technical data

System integration

Electronic short-circuit protection is applied per load-voltage group. Parameterizable diagnostic alarms report faults, while green channel LEDs indicate signal status and a green/red module LED displays module diagnostics.

Use an M8 4-pole connector for the supply and a shielded M8 4-pin connector for ET-Connection. The module supports operation from -30 to 55°C and unshielded field cables up to 30 m. Before replacement, verify the complete article number and retain the documented station wiring.

Brand characteristics

Siemens industrial automation combines coordinated system engineering, documented product data and structured lifecycle support.

Application fields

This module supports distributed digital signal processing directly on industrial equipment.
