01 · Product Details

Official product identity

Siemens industrial automation

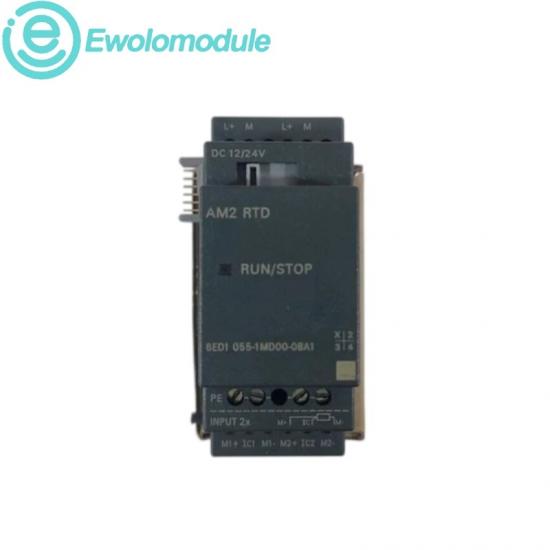

Siemens 6ED1055-1MD00-0BA1 AM2 RTD Expansion Module

A two-channel RTD analog input expansion module for LOGO! temperature measurement with Pt100 or Pt1000 sensors.

Series

LOGO!

Condition

New Original

Warranty

One year

Availability

In stock

Related models on site

Siemens Products

6ES7132-4BD30-0AA0

6ES7132-6BF00-0BA0

02 · Specifications

Official profile for 6ED1055-1MD00-0BA1

Detailed product description

The LOGO! AM2 RTD expansion module uses a 12/24 V DC supply and provides two analog inputs for Pt100 or Pt1000 resistance temperature detectors across a -50 to +200°C measuring range. Siemens lists this order number as a spare part at end of product lifecycle.

Power supply	12/24 V DC
Analog inputs	2
Sensor types	Pt100 / Pt1000
Measuring range	-50 to +200°C

Official technical data

Article number 6ED1055-1MD00-0BA1	Product designation LOGO! AM2 RTD
Product status Spare part / end of product lifecycle	Module width 2 spacing units

Operating Environment

Measurement range	-50 to +200°C
Installation	35 mm DIN rail or enclosure mounting
Sensor connection	Pt100 or Pt1000 RTD

Monitoring & Control

Status display	RUN / STOP
Input channels	Two temperature inputs
System interface	LOGO! expansion interface

Dual RTD measurement

Pt100 and Pt1000 support

Compact LOGO! expansion

03 · Recommand

Application guidance and related products

Brand characteristics

Siemens supports documented automation platforms with coordinated hardware families, official order numbers and structured lifecycle information.

Modular design	Modular LOGO! expansion architecture
Documented data	Official product and compatibility records
Service support	Lifecycle documentation for installed systems

Application fields

Machines, utilities and building services.

Machine control	Machines, utilities and building services
Process equipment	Industrial automation and service tasks
System service	Replacement in compatible LOGO! systems

Installation & upgrade: Mount the module in a suitable enclosure, connect the 12/24 V DC supply and wire the two Pt100 or Pt1000 inputs according to the LOGO! system manual.
