PRODUCT DETAILS

SIEMENS

6ES5463-4UA13

Warranty: One year • Availability: In stock

OFFICIAL PRODUCT NAME

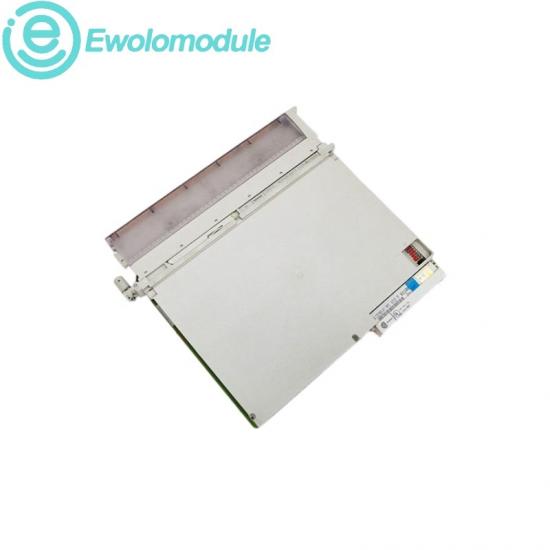

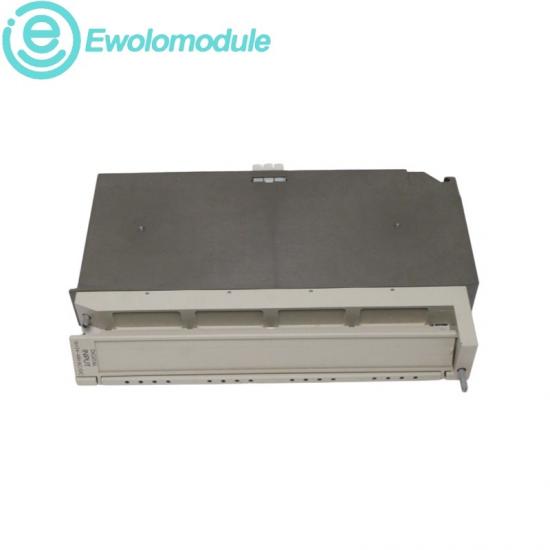

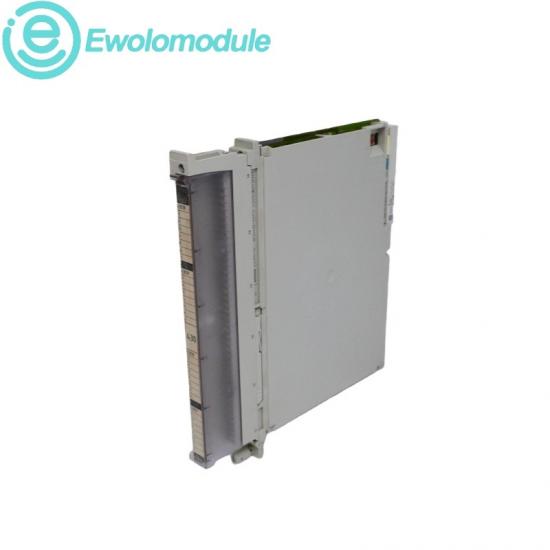

SIMATIC S5 463 Analog Input Module

Series: SIMATIC S5-135U / S5-155U

Description: Four-channel galvanically isolated analog input module for SIMATIC S5-135U and S5-155U systems.

RELATED MODELS ON EWOLOMODULE
6ES7407-0RA02-0AA0 6AV2123-2JB03-0AX0 6GK7343-2AH11-0XA0

SPECIFICATIONS / OFFICIAL ENGINEERING DATA

Analog Input Module engineering profile

The 463 module converts four isolated voltage or current signals through voltage-to-frequency conversion and stores each result for STEP 5 word access.

OFFICIAL TECHNICAL DATA

Article number

6ES5463-4UA13

Module type

463 analog input

Input channels

Channel isolation

Galvanically isolated

Voltage ranges

0 to 1 V / 0 to 10 V

Current ranges

0 to 20 mA / 4 to 20 mA

Conversion method

Voltage/frequency converter

Integration time

20 ms

Measured-value memory

4 x 16-bit

Address space

8 bytes

MONITORING & CONTROL

The controller reads four measured-value words and can monitor converted process signals and range behavior in the STEP 5 program.

COMMUNICATION & CONNECTION

The module exchanges process data through the SIMATIC S5 backplane in compatible S5-135U and S5-155U central or expansion racks.

RECOMMAND

CERTIFICATION STANDARDS

Install and operate the module under the system-level safety, EMC and wiring provisions in the official SIMATIC S5 manuals.

CONFIGURATION & PROGRAMMING

Set the module address at the internal switch, select each input range with the front-connector wiring and jumpers, and read the values with STEP 5 word operations.
