Product details
Specifications
Recommand
Service & Policy

PRODUCT DETAILS

SIEMENS

6FX2001-5QN13

Warranty: One year • Availability: In stock

OFFICIAL PRODUCT NAME

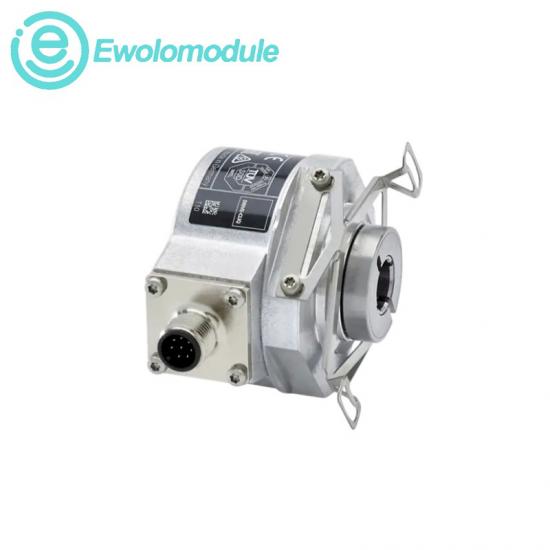

Absolute Encoder Singleturn 16-bit with PROFINET IO

Series: Absolute Encoders with PROFINET IO

Description: Singleturn 16-bit absolute encoder with PROFINET IO, a 10 mm shaft and radial M12 connections.

RELATED MODELS ON EWOLOMODULE
6ES7407-0RA02-0AA0 6AV2123-2JB03-0AX0 6GK7343-2AH11-0XA0

SPECIFICATIONS / OFFICIAL ENGINEERING DATA

Absolute Encoder engineering profile

This absolute encoder supplies digital position and speed information over PROFINET IO with RT/IRT functions for synchronized motion and machine feedback applications.

OFFICIAL TECHNICAL DATA

Article number

6FX2001-5QN13

Encoder type

Singleturn absolute

Resolution

16 bit

Interface

PROFINET IO with RT / IRT

Data ports

2 x IRT

Transfer rate

100 Mbit/s

Operating voltage

10 to 30 V DC

Shaft diameter

10 mm

Shaft length

20 mm

Protection / temperature

IP67 housing; -40 °C to +85 °C

MONITORING & CONTROL

Position and speed signals, preset, counting direction and PROFINET diagnostics support continuous machine-feedback monitoring.

COMMUNICATION & CONNECTION

Two radial M12 PROFINET ports carry RT/IRT data, with a separate radial M12 connection for operating voltage.

RECOMMAND

CERTIFICATION STANDARDS

The official Siemens data sheet lists CE and cULus compliance and EMC Directive 2014/30/EC requirements.

CONFIGURATION & PROGRAMMING

Parameterize preset, counting direction and resolution through the PROFINET encoder profile, then assign device name and network settings in the engineering system.
