SIEMENS · PRODUCT DETAILS

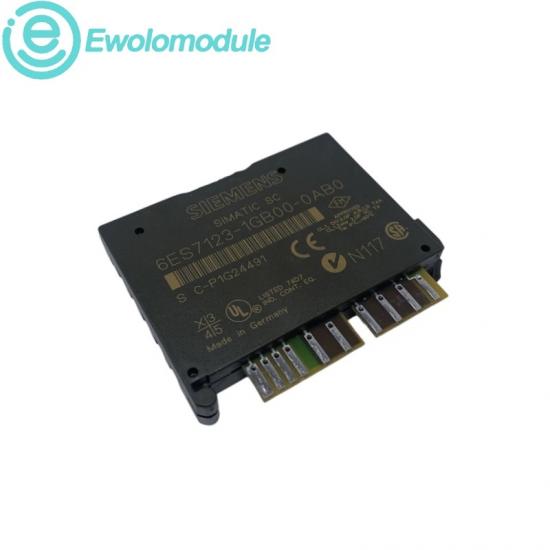

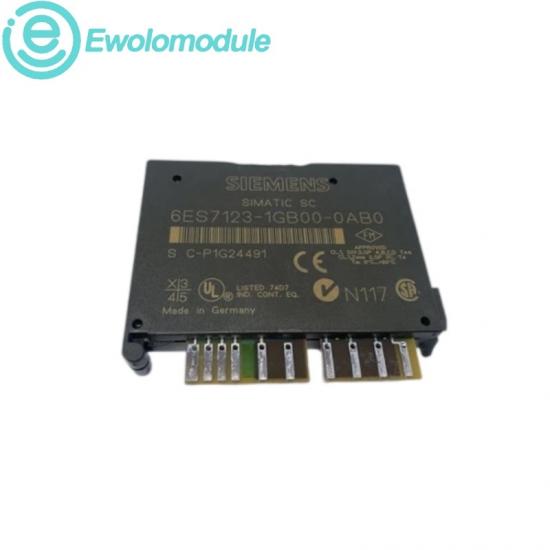

Siemens 6ES7123-1GB00-0AB0 SIMATIC SC 2AI Analog Input Submodule

Two-channel current-signal acquisition for compatible SIMATIC SC systems.

SIMATIC SC

CONDITIONNew Original

WARRANTYOne year

☎ +86 17359287459 ✉ sales9@apterpower.com

Product snapshot

This electronic submodule provides two analog current inputs for process transmitters.

It is a compact option for maintaining existing SIMATIC SC signal configurations.

System fit

The submodule measures 4–20 mA or ±20 mA current signals.

Confirm the TB 16SC terminal block and the existing signal scaling before installation.

Explore other Siemens products →

Operation, protection & changeover

Practical checks for SIMATIC SC installations

◇ Diagnostics & Protection

Compare measured values with transmitter output and configured range.

The Siemens datasheet states that onboard alarms and diagnostic functions are not provided, so verify wiring and transmitter supply externally.

↗ Installation & Upgrades

Use the required TB 16SC terminal block and preserve the channel setup.

Recheck transmitter wiring, integration setting and scaling during recommissioning.

Official technical data

Analog inputs2	Current ranges4–20 mA, ±20 mA	Rated supply24 V DC
Terminal blockTB 16SC	ResolutionUp to 13 bit	Width10 mm
Height64 mm	Depth51 mm	Approx. weight20 g

Source: Siemens technical data for 6ES7123-1GB00-0AB0. Only exact-order-code facts are listed.

Platform context & applications

Siemens brand characteristics

Siemens SIMATIC I/O families provide documented station types for structured industrial automation projects.

SIMATIC SC provides analog input submodule functionality within the documented SIMATIC platform.

Maintaining the exact order code and project configuration supports orderly service and replacement.

Application fields

Current-loop measurement in existing SIMATIC SC stations.

Maintenance of two-channel analog input systems.

Control projects retaining the TB 16SC terminal arrangement.
