01PRODUCT DETAILS

OFFICIAL PRODUCT IDENTITY

SIEMENS INDUSTRIAL AUTOMATION

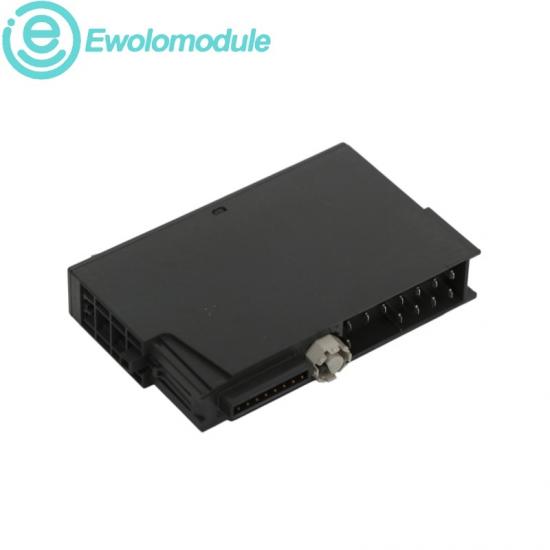

Siemens 6ES7131-4BD00-0AA0 Digital Input Module

A four-channel standard 24 V DC digital input module for ET 200S distributed I/O.

ORDER AND AVAILABILITY

SERIES

SIMATIC ET 200S

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

Related models on site

Siemens Products

6ES7340-1AH02-0AE0

6ES7315-2EG10-0AB0

SPECIFICATIONS

Standard 4DI electronic module for ET 200S

This electronic module provides four standard 24 V DC digital inputs for ET 200S distributed I/O. Its compact 15 mm format supports a one-byte address space or four-bit packed addressing.

CONFIRMED OFFICIAL DATA

ARTICLE NUMBER6ES7131-4BD00-0AA0

DESIGNATION4DI Standard 24 V DC

SYSTEMSIMATIC ET 200S

DIGITAL INPUTS4 channels

RATED SUPPLY24 V DC

INPUT STANDARDIEC 61131 Type 1

SIGNAL 0 RANGE-30 to +5 V

SIGNAL 1 RANGE+15 to +30 V

INPUT CURRENT7 mA typ. at 24 V

INPUT DELAY3 ms typ.

ADDRESS SPACE1 byte / 4-bit packed

CABLE LENGTH1000 m shielded / 600 m unshielded

Four standard inputs

15 mm electronic module

Compact packed addressing

DIAGNOSTIC PROTECTION

INSTALLATION UPGRADE

Use the channel status indicators when checking field input states.

Mount on a compatible ET 200S terminal module for 15 mm electronics.

Check the 24 V DC sensor supply and input reference during fault tracing.

Supply rated 24 V DC through the station power module.

Channel-to-backplane isolation is tested at 500 V DC.

Confirm the complete article number before replacing an earlier revision.

03 RECOMMAND

Brand characteristics and application fields

BRAND CHARACTERISTICS

Siemens supports modular automation platforms with documented order numbers, coordinated hardware families and structured lifecycle information for installed equipment.

Documented component identification

Coordinated modular hardware

Lifecycle and spare-part support data

APPLICATION FIELDS

Applied to standard discrete sensing and machine-status acquisition in ET 200S stations.

Machine inputsSwitch and sensor acquisition

Conveying systemsDiscrete process feedback

Control cabinetsDistributed 24 V DC I/O

Legacy stationsMaintenance of installed ET 200S

6ES7131-4BD00-0AA0 Digital Input Module

SIMATIC ET 200S Digital Input Module

ET 200S 4DI standard input module

6ES7131-4BD00-0AA0 Datasheet Module
