01PRODUCT DETAILS

OFFICIAL PRODUCT IDENTITY

SIEMENS INDUSTRIAL AUTOMATION

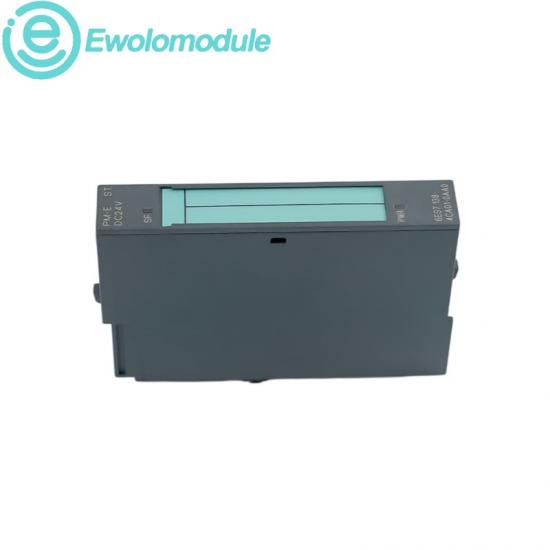

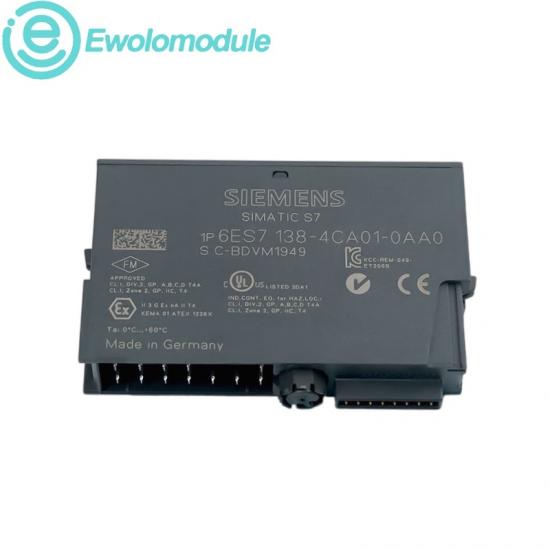

Siemens 6ES7138-4CA01-0AA0 Power Module

A 24 V DC ET 200S power module that forms load groups and reports missing load voltage.

ORDER AND AVAILABILITY

SERIES

SIMATIC ET 200S

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

Related models on site

Siemens Products

6ES7340-1AH02-0AE0

6ES7315-2EG10-0AB0

SPECIFICATIONS

PM-E 24 V DC power distribution with diagnostics

The PM-E power module supplies 24 V DC load groups within an ET 200S station. It supports a maximum current capacity of 10 A up to 60 °C and reports a missing load-voltage condition.

CONFIRMED OFFICIAL DATA

ARTICLE NUMBER6ES7138-4CA01-0AA0

DESIGNATIONPM-E 24 V DC

SYSTEMSIMATIC ET 200S

RATED LOAD VOLTAGE24 V DC

CURRENT CAPACITY10 A max. up to 60 °C

EXTERNAL PROTECTIONRequired, characteristic C

REVERSE POLARITYProtected

NO-LOAD INPUT CURRENT4 mA max.

POWER LOSS0.1 W typ.

LOAD-VOLTAGE DIAGNOSTICYes

STATUS LEDSPWR green / SF red

ISOLATION TEST500 V DC

10 A power-group capacity

Missing-voltage diagnostics

Green PWR and red SF LEDs

DIAGNOSTIC PROTECTION

INSTALLATION UPGRADE

Missing load voltage can be diagnosed and parameterized for enable or disable.

Connect rated 24 V DC load voltage with the specified external protection.

Use the green PWR and red SF indicators when checking supply status.

Install on the compatible ET 200S terminal module for power modules.

External short-circuit protection with characteristic C is required.

Verify polarity and isolate the station before changing the power module.

03 RECOMMAND

Brand characteristics and application fields

BRAND CHARACTERISTICS

Siemens supports modular automation platforms with documented order numbers, coordinated hardware families and structured lifecycle information for installed equipment.

Documented component identification

Coordinated modular hardware

Lifecycle and spare-part support data

APPLICATION FIELDS

Used to create and monitor 24 V DC load groups in distributed ET 200S installations.

Power groupsSegmented 24 V DC distribution

Machine I/OSupply for output load circuits

Control cabinetsMonitored load-voltage sections

MaintenanceFault localization with PWR/SF LEDs

6ES7138-4CA01-0AA0 Power Module

6ES7138-4CA01-0AA0 Datasheet Module
