PRODUCT DETAILS

SIEMENS

ARTICLE NUMBER6ES7131-4BF00-0AA0

OFFICIAL PRODUCT NAME

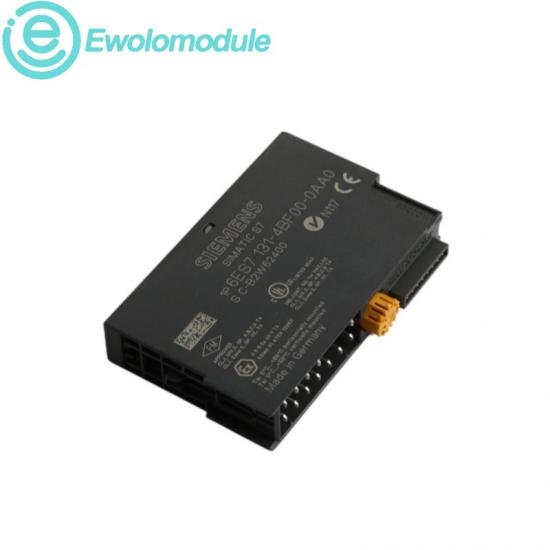

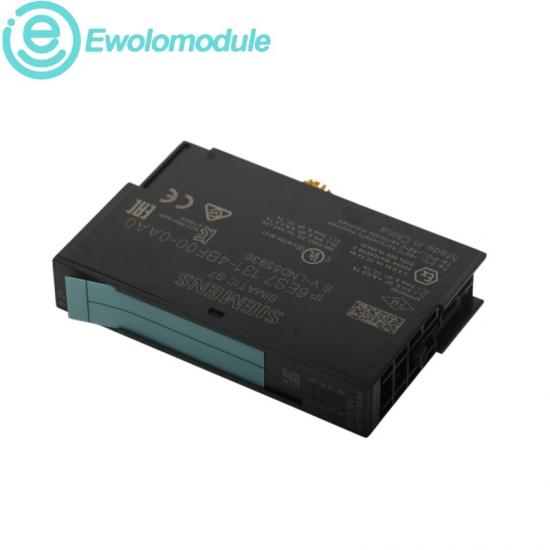

SIMATIC DP ET 200S 8DI 24 V DC Digital Input Module

Eight 24 V DC digital inputs in a 15 mm module support dense ET 200S sensor acquisition, with Type 1 input characteristics and individual green channel-status LEDs.

WARRANTY

One year

AVAILABILITY

In stock

TEL

+86 17359287459

sales9@apterpower.com

INSTALLATION, UPGRADES & FIRMWARE

DIGITAL INPUTS8

RATED INPUT24 V DC

INPUT CURRENT5 mA

INPUT DELAY3 ms typical

INSTALLATION & UPGRADE

FIRMWARE & UPDATES

01Insert the 15 mm module into a compatible ET 200S terminal-module position.

PASSIVE I/ONo separate firmware image or update package is stored in the module.

02Connect the eight 24 V DC sensor signals according to the assigned channels.

PROJECT DATAChannel allocation is defined by the ET 200S hardware configuration.

03Check supply polarity and ensure input voltages remain within the specified signal ranges.

SIGNAL CHECKConfirm the typical input delay and Type 1 input behavior suit the application.

04Verify every green channel LED and controller input state after replacement.

SUCCESSOR REVIEWMatch eight-channel density, 24 V DC rating and terminal-base compatibility.

BRAND CHARACTERISTICS & APPLICATION FIELDS

BRAND CHARACTERISTICS

APPLICATION FIELDS

◆ Eight inputs in 15 mm width support high station density.

◆ Machine sensor acquisition and control-cabinet monitoring.

◆ IEC 61131 Type 1 characteristics suit standard industrial sensors.

◆ Limit-switch and proximity-switch integration.

◆ Individual green LEDs simplify channel-state inspection.

◆ ET 200S distributed I/O expansion and service replacement.

◆ Siemens documentation supports exact wiring and replacement checks.

◆ Compact 24 V DC input systems in production equipment.
