SIEMENS · PRODUCT DETAILS

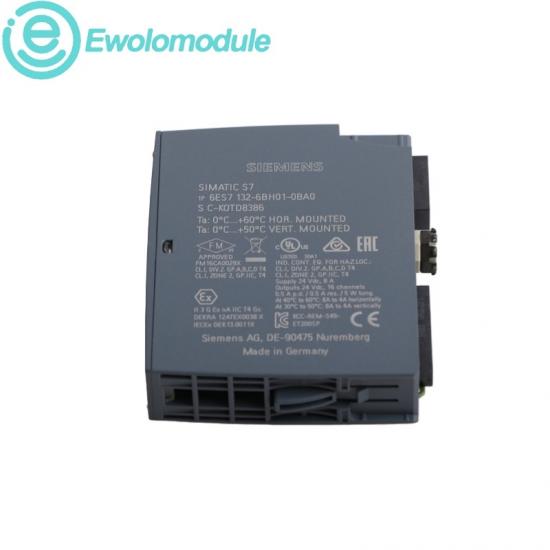

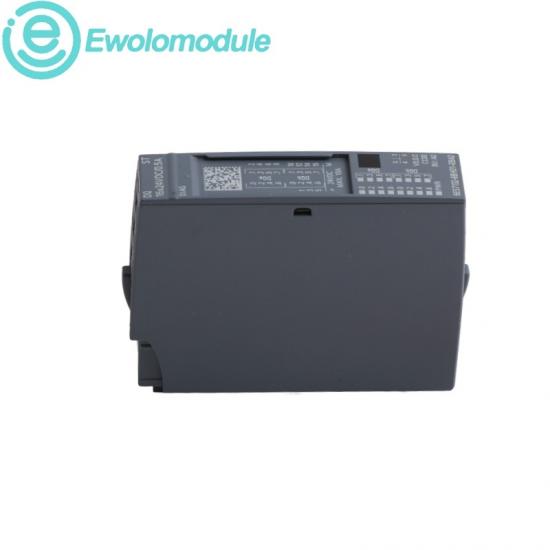

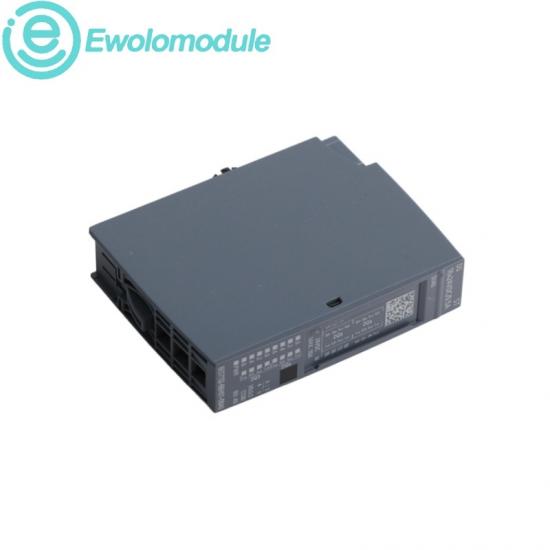

6ES7132-6BH01-0BA0

ET 200SP DQ 16x24 V DC/0.5 A

Sixteen 24 V DC source outputs in the compact ET 200SP format provide dependable switching for distributed machine and process signals.

PURCHASE PROFILE

Condition
New Original

Warranty
One year

☎ +86 17359287459

✉ sales9@apterpower.com

Explore other Siemens →

02 · TECHNICAL PROFILE

Communication links and operating assurance

↔ Communication & Connectivity

Field and system data exchange

System interface

ET 200SP backplane bus

Configuration

TIA Portal V14 / STEP 7

Address space

2 bytes + 2 QI bytes

BaseUnit

BU type A0, CC00

✓ Safety & Compliance

Isolation, diagnostics and lifecycle

Diagnostics

Short circuit, wire break, supply

Rated supply

24 V DC

RoHS status

Compliant since 15 Sep 2017

Lifecycle

Active product

Official technical data

Digital outputs16 source outputs

Output current0.5 A per channel

Voltage range19.2–28.8 V DC

Power lossTypically 1 W

Current consumptionMaximum 30 mA

PROFINET GSDMLVersion 2.3

03 · BRAND & APPLICATION

Reliable integration across established automation systems

◆ Siemens brand characteristics

Engineering consistency and lifecycle support

Compact ET 200SP construction supports dense cabinet layouts.

Documented diagnostics simplify commissioning and maintenance.

Consistent Siemens engineering data supports lifecycle service.

Modular BaseUnit architecture enables structured expansion.

◎ Application fields

Industrial integration and service scenarios

Distributed machine-output switching.

Packaging and conveyor control cabinets.

Process auxiliary equipment and valve control.

ET 200SP expansion and replacement projects.
