SIEMENS

ARTICLE NUMBER

6ES7222-1HH32-0XB0

PRODUCT DETAILS

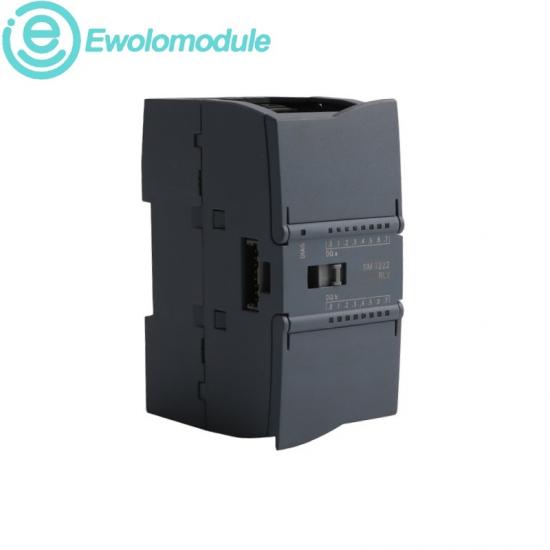

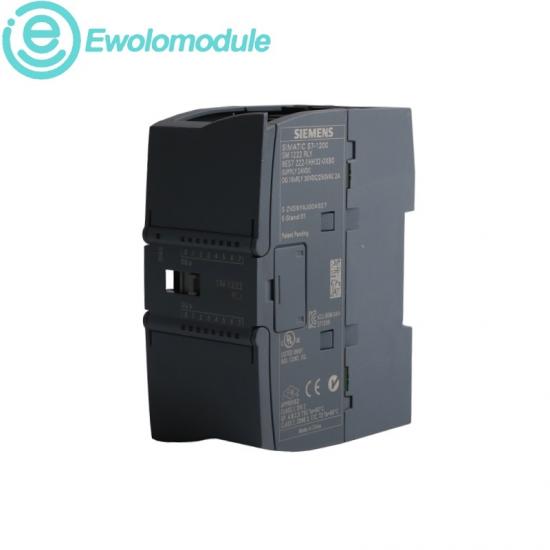

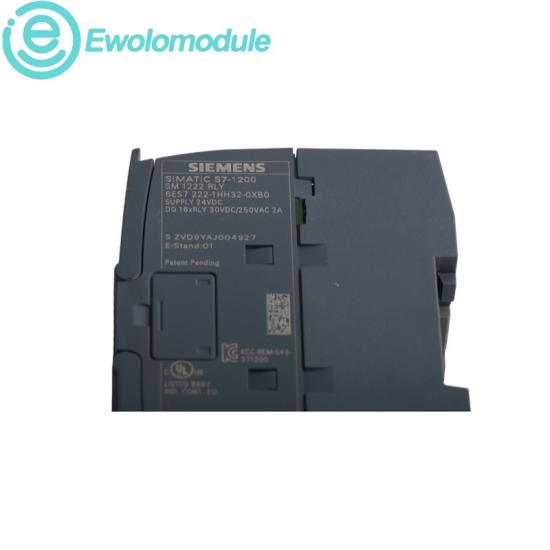

SIMATIC S7-1200 SM 1222 Relay Output Module

A compact relay output expansion module for dependable switching of AC and DC field loads in S7-1200 automation systems.

WARRANTY

One year

AVAILABILITY

In stock

TEL	+86 17359287459

sales9@apterpower.com

PERFORMANCE & APPLICATIONSSM 1222 RELAY OUTPUT

Digital outputs16 relay outputs	Rated current2 A per output	DC load range5 to 30 V DC	AC load range5 to 250 V AC
Power loss8.5 W typical	Output delay10 ms maximum	Isolation test1500 V AC / 1 min	Operating range-20 to 60 °C

PERFORMANCE & EFFICIENCY	APPLICATION SCENARIOS
◆ Mechanical relay life reaches up to 10 million operating cycles.	◆ Switching contactors, solenoid valves and auxiliary relays.
◆ Rated-load electrical life is specified up to 100,000 operations.	◆ Mixed AC and DC load control inside compact machine panels.
◆ A 10 A group-current limit supports coordinated load planning at 50 °C.	◆ S7-1200 station expansion for packaging and material-handling cells.
◆ Status LEDs and a diagnostic alarm support efficient commissioning checks.	◆ Lifecycle replacement where established relay wiring must be retained.

SIEMENS VALUE & INDUSTRY FIT

BRAND CHARACTERISTICS	APPLICATION FIELDS
◆ Siemens order coding identifies the exact SM 1222 relay-output variant.	◆ Discrete actuator control in manufacturing and assembly equipment.
◆ TIA Portal integration supports consistent hardware configuration and diagnostics.	◆ Conveying, packaging and warehouse-automation systems.
◆ Industrial isolation and relay grouping suit mixed-voltage cabinet designs.	◆ Building utilities, pump skids and auxiliary plant control.
◆ Official engineering data defines load, lifetime and environmental limits.	◆ Installed S7-1200 maintenance and standardized spare-parts programs.
