PRODUCT DETAILSSIEMENS

ARTICLE NUMBER

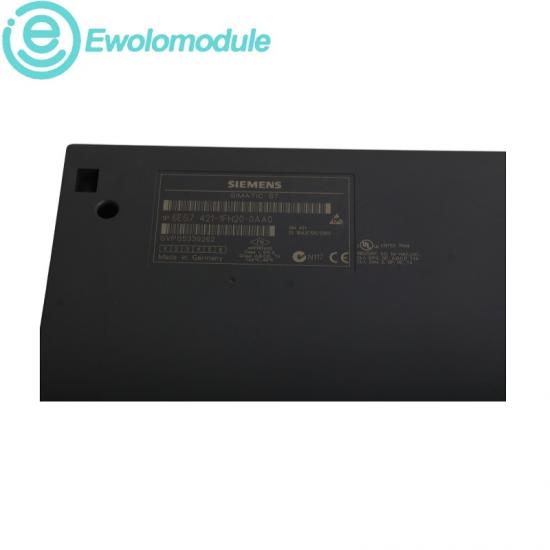

6ES7421-1FH20-0AA0

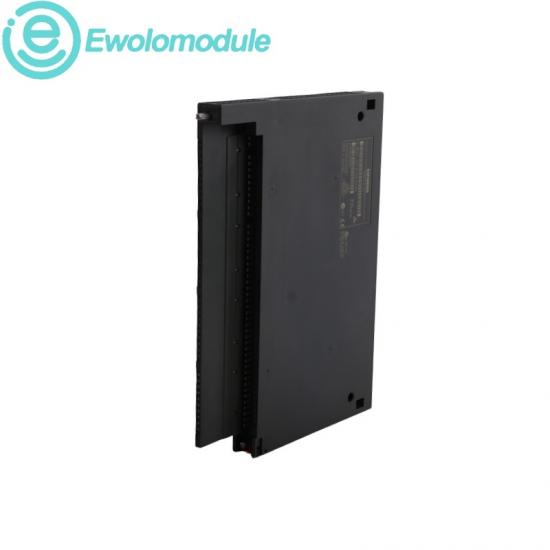

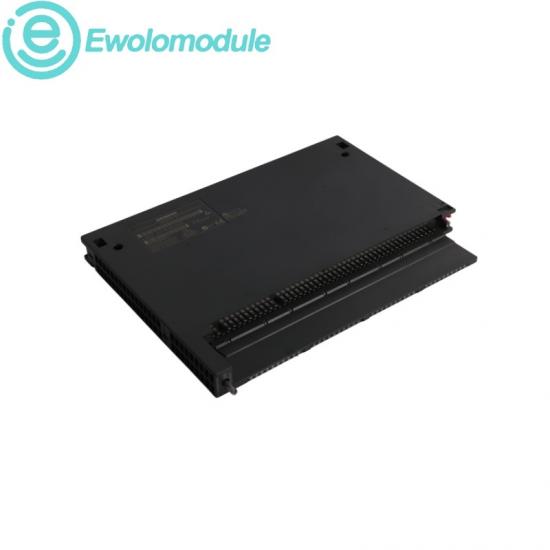

SIMATIC S7-400 Digital Input Module

Isolated sixteen-channel universal-voltage input module for acquiring high-voltage field and auxiliary-contact signals in S7-400 systems.

WARRANTYOne year

AVAILABILITYIn stock

TEL+86 17359287459

EMAILsales9@apterpower.com

DIAGNOSTICS, PROTECTION & INSTALLATION

Digital inputs16 DI	Input voltage120 / 230 V UC	Input profileIEC Type 2	Frequency range47 to 63 Hz
Input delay20 / 30 ms	Isolation groups4	Backplane current80 mA	Power loss12 W

DIAGNOSTICS & PROTECTION

Channel status LEDs support local verification of field-signal states.
Four isolated groups provide structured separation of input circuits.
Observe the documented AC and DC signal thresholds during testing.
De-energize high-voltage field wiring before installation or service.

INSTALLATION & UPGRADES

Match the original S7-400 slot and process-image address assignment.
Use shielded cable up to 1000 m or unshielded cable up to 600 m.
Verify conductor insulation and protective measures for 120/230 V circuits.
Test all 16 inputs under controlled conditions before returning to service.

BRAND CHARACTERISTICS & APPLICATION FIELDS

BRAND CHARACTERISTICS	APPLICATION FIELDS
◆ Siemens S7-400 architecture supports modular high-availability control systems.	◆ High-voltage auxiliary contacts and plant-status acquisition.
◆ Universal-voltage inputs accommodate both AC and DC field signals.	◆ Process utilities, substations and infrastructure control cabinets.
◆ Electrical isolation and defined input groups support cabinet organization.	◆ Installed S7-400 system expansion and replacement.
◆ Official technical limits simplify retrofit and lifecycle verification.	◆ Maintenance work where existing 120/230 V wiring must be retained.
