PRODUCT DETAILSSIEMENS

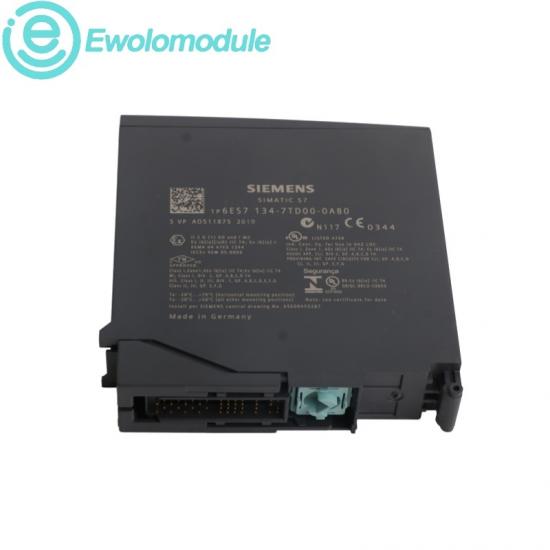

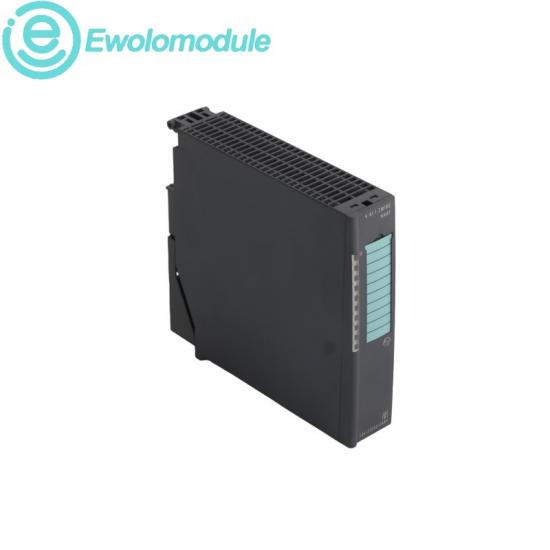

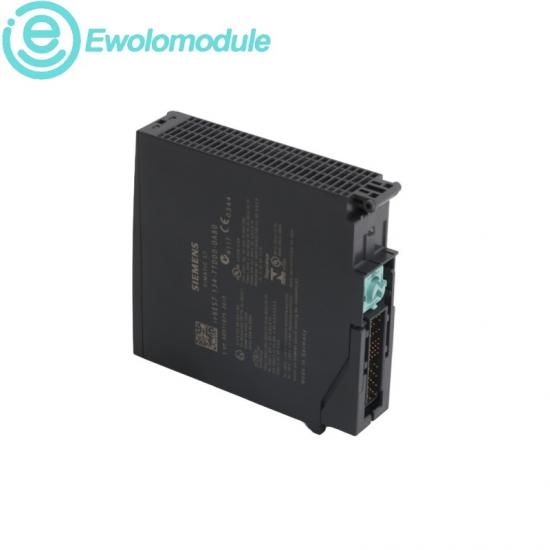

Article number 6ES7134-7TD00-0AB0 Warranty: One year Availability: In stock	Official product name SIMATIC ET 200iSP 4 AI HART 2-Wire Electronic Module
	Description: Four-channel intrinsically safe HART analog-input module for 2-wire transmitters in ET 200iSP stations.
Tel : +86 17359287459\|Email : sales9@apterpower.com

SPECIFICATIONS

Technical profile

This ET 200iSP electronic module connects HART 2-wire transmitters and supports HART protocol version 6.0 in intrinsically safe applications.

OFFICIAL TECHNICAL DATA

Product type	4AI I 2WIRE HART	Automation system	SIMATIC ET 200iSP
Analog inputs	4	Signal range	4 to 20 mA
HART protocol	Version 6.0	Supply voltage	20.4 to 28.8 V DC
Resolution	13 bit including overrange	Cycle time	120 ms maximum, all channels
Cable length	500 m maximum, shielded	Degree of protection	IP30

CERTIFICATION & STANDARDS

CE 0344, UKCA, cULus, FM, ATEX and IECEx KEM 05.0006 are listed in the official Siemens technical data.

COMPATIBILITY & INTEROPERABILITY

For ET 200iSP installations; the official data lists fieldbus connection through a separate transceiver and 2-wire HART transmitters.

RECOMMAND

RELATED INDUSTRIES

Process automation, hazardous-area instrumentation, chemical and energy facilities.

APPLICATION SCOPE

Acquisition of 4–20 mA HART transmitter signals in intrinsically safe distributed I/O stations.
