PRODUCT DETAILS • VERIFIED SUPPLY

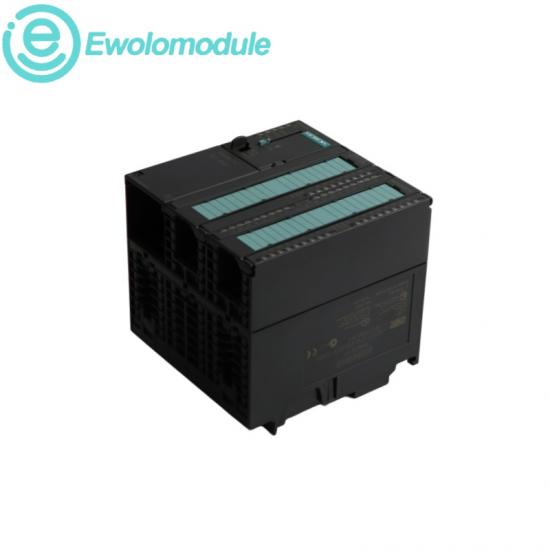

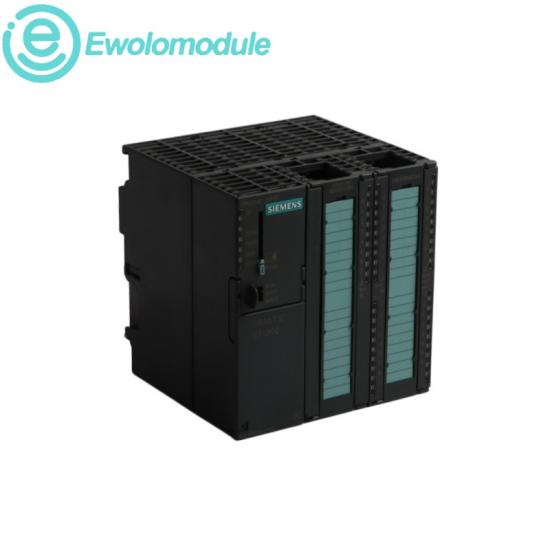

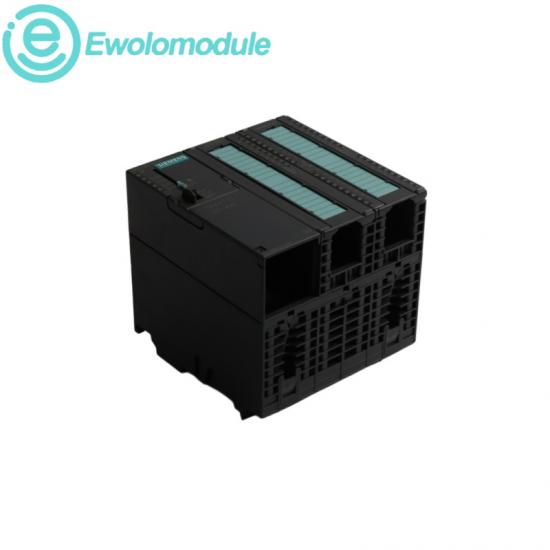

Siemens 6ES7314-6BG03-0AB0 SIMATIC S7-300 CPU 314C-2 PtP Compact CPU

PRODUCT IDENTITY

A compact S7-300 CPU combining digital and analog I/O, high-speed counters, MPI and an integrated RS485 point-to-point interface.

+86 17359287459 sales9@apterpower.com

SPECIFICATIONS • OFFICIAL PRODUCT DATA

Communication, connection and compliance

COMMUNICATION & CONNECTION

MPI interface for SIMATIC communication

Integrated RS485 point-to-point interface

Two 40-pole front connectors and a Micro Memory Card are required

SAFETY & COMPLIANCE

Integrated 24 V DC power supply

Siemens identifies the product as discontinued with successor 6ES7314-6BH04-0AB0

Spare-part lifecycle status is stated in the official record

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION

SIMATIC S7-300 CPU 314C-2 PtP

DIGITAL I/O

24 DI / 16 DO

ANALOG I/O

4 AI / 2 AO

TEMPERATURE INPUT

1 x Pt100

HIGH-SPEED COUNTERS

4 at 60 kHz

COMMUNICATION

MPI and integrated RS485

WORK MEMORY

96 KB

POWER SUPPLY

24 V DC integrated

RECOMMAND • APPLICATION CONTEXT

Industry relevance and application scope

RELATED INDUSTRIES

Production machinery, assembly systems, packaging lines, material handling and standalone machine control.

APPLICATION SCOPE

Compact PLC control requiring onboard mixed I/O, high-speed counting and serial point-to-point communication.
