PRODUCT DETAILS · SIEMENS SIMATIC DP ET 200X

6ES7141-1BF12-0XB0

BM 141 Basic Module

PRODUCT IDENTITY

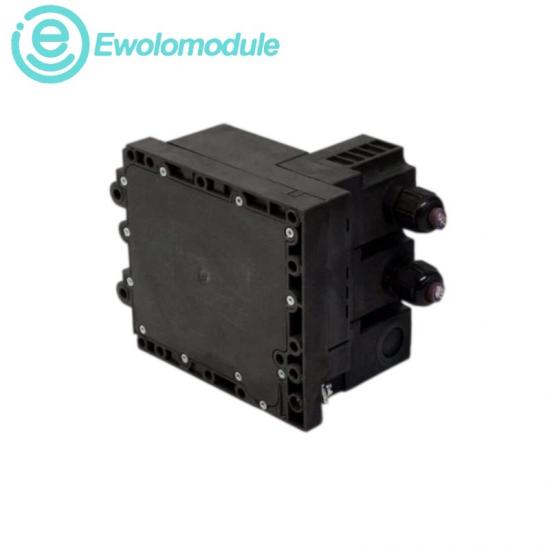

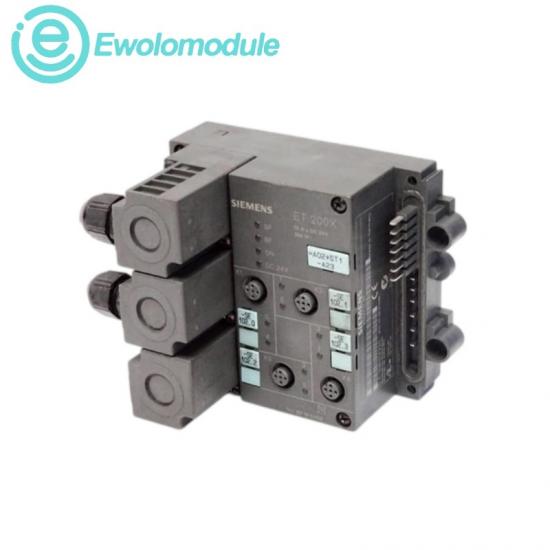

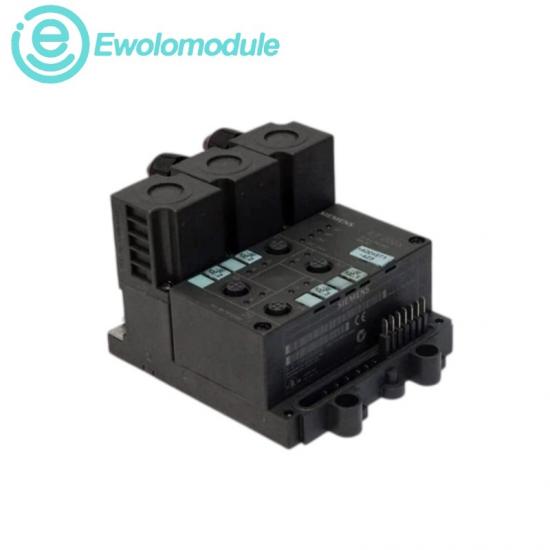

Siemens 6ES7141-1BF12-0XB0 SIMATIC DP ET 200X BM 141 Basic Module is an IP66/IP67 field module with eight 24 V DC digital inputs and an integrated PROFIBUS DP interface for ET 200X stations.

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Configuration and compatibility

PRODUCT DESCRIPTION

The BM 141 forms a compact ET 200X field station with direct sensor wiring through double-assigned 5-pole M12 connectors. Its integrated PROFIBUS DP interface exchanges input data with the automation controller while separate 1L+ and 2L+ supplies support electronics and field loads in protected installations.

SYSTEM COMPATIBILITY

◆ SIMATIC DP ET 200X distributed I/O

◆ PROFIBUS DP up to 12 Mbit/s

◆ S7 automation systems with DP master

◆ 5-pole M12 field connections

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION BM 141	PRODUCT FAMILY SIMATIC DP ET 200X
DIGITAL INPUTS 8 × 24 V DC	FIELD CONNECTORS 5-pole M12, double assigned
FIELDBUS PROFIBUS DP, up to 12 Mbit/s	POWER SUPPLY 1L+ / 2L+, nominal 24 V DC
SENSOR SUPPLIES 4 electronically protected outputs	SENSOR CURRENT 0.9 A to 40 °C; 0.7 A to 55 °C
DEGREE OF PROTECTION IP66 / IP67	POWER LOSS Typically 3.5 W

RECOMMAND · APPLICATION GUIDANCE

Operation guidance and related models

DIAGNOSTICS & PROTECTION

Check PROFIBUS address and bus status, 24 V supplies, M12 sensor wiring and channel short-circuit indications before exchanging the module.

OPERATING ENVIRONMENT

Designed for decentralized field mounting with IP66/IP67 protection; maintain sealed M12 connections and observe permitted temperature-dependent sensor current.
