01 PRODUCT DETAILS

Official product identity

SIMATIC ET 200S IM 151-3

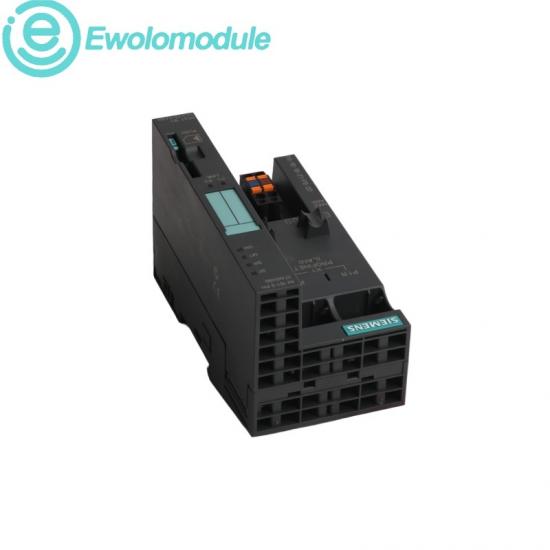

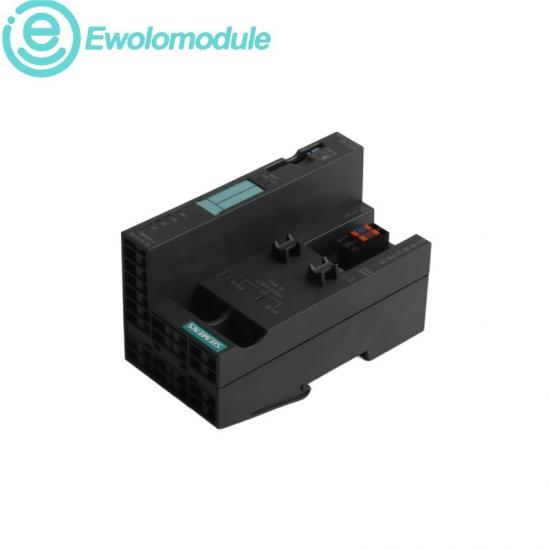

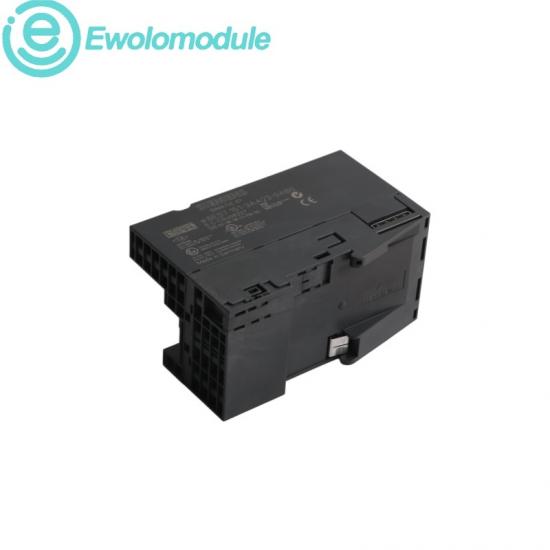

Siemens 6ES7151-3AA23-0AB0 IM 151-3 PN ST Interface Module

This product is an IM 151-3 PN ST interface module for connecting ET 200S distributed I/O to PROFINET IO.

PRODUCT ROLE

PROFINET interface for ET 200S

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

Related models on siteSiemens Products 6ES7315-2EG10-0AB0 6ES7467-5FJ00-0AB0

SPECIFICATIONS

Distributed I/O over PROFINET

The interface module couples an ET 200S station to PROFINET IO through two RJ45 ports and supports structured exchange with a supervising IO controller.

Detailed product description

The IM 151-3 PN ST coordinates the ET 200S station, provides Ethernet connectivity and transfers process data between installed I/O modules and the PROFINET controller. Integrated link and diagnostic indicators support commissioning and maintenance.

Official technical data

Product type	IM 151-3 PN ST	System	SIMATIC ET 200S
Transfer rate	100 Mbit/s max.	I/O capacity	256 byte input / 256 byte output
Module capacity	Up to 63 modules	Station width	Up to 2 m
Power loss	3.3 W	Supply current	200 mA max.

Communication & Connections

PROFINET ports	2 x RJ45
Port functions	Autonegotiation and autocrossing
Protocols	PROFINET IO, SNMP, LLDP, ping, ARP
Network redundancy	MRP supported

Safety & Compliance

Isolation test	500 V
Operating temperature	0 to 60 °C
Approvals	CE and UL
Diagnostics	LINK, BF, SF and 24 V LEDs

Two-port PROFINET connection

Up to 63 ET 200S modules

Integrated network and station diagnostics

Technical basis: Siemens official product documentation

RECOMMAND

Brand features and application fields

Brand characteristics

Siemens industrial automation hardware emphasizes organized engineering, documented integration and visible operating status for maintainable systems.

Distributed architectureModular remote I/O helps place signals close to field equipment.

Engineering continuityDocumented station limits support predictable project planning.

Service visibilityLink and fault indicators simplify commissioning and troubleshooting.

Application fields

Suitable for modular remote I/O, machine control and distributed production cells.

Remote I/OET 200S stations on PROFINET

Machine cellsDistributed sensors and actuators

ModernizationReplacement of legacy IM 151-3 stations

Installation & upgrade: Mount at the head of a compatible ET 200S station, connect 24 V DC and both RJ45 network ports as required, then configure the station in the supported engineering system.
