01 PRODUCT DETAILS

Official product identity

SIMATIC NET CP 243-1

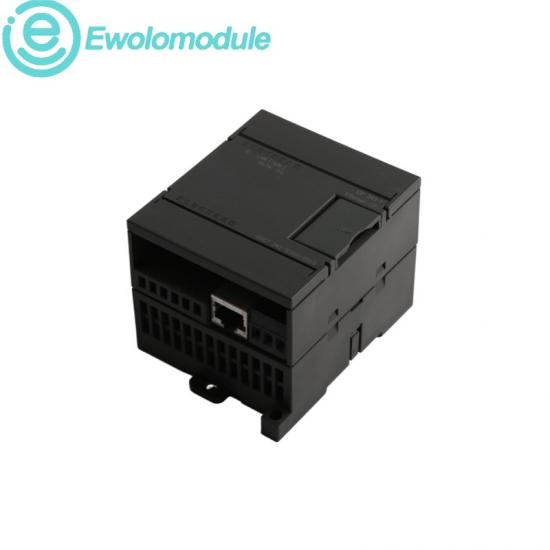

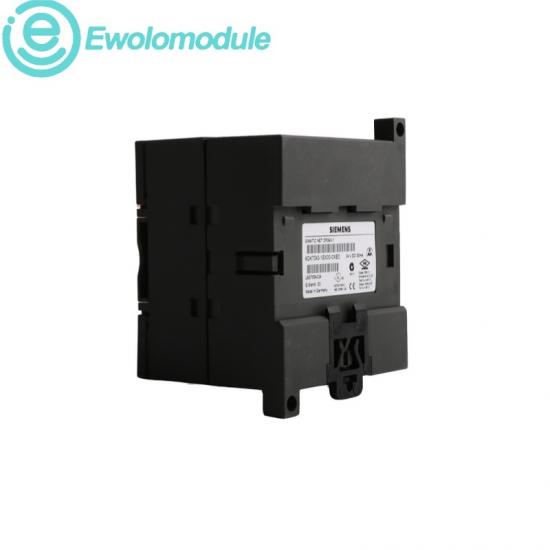

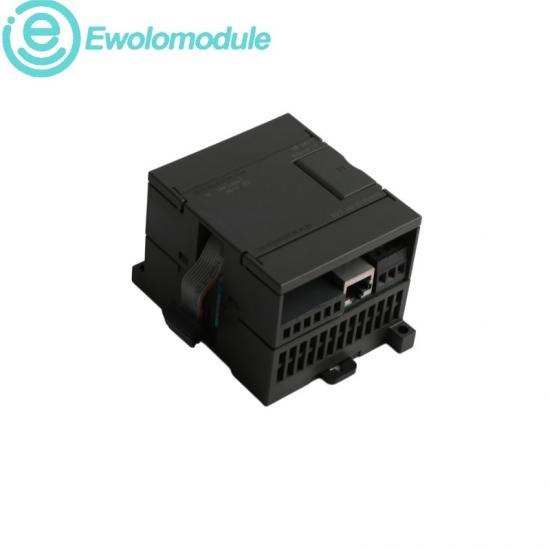

Siemens 6GK7243-1EX00-0XE0 CP 243-1 Communications Processor

This product is a CP 243-1 communications processor that connects an S7-200 automation system to Industrial Ethernet.

PRODUCT ROLE

Industrial Ethernet link for S7-200

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

Related models on siteSiemens Products 6ES7315-2EG10-0AB0 6ES7467-5FJ00-0AB0

SPECIFICATIONS

Ethernet communication for S7-200

The CP 243-1 extends S7-200 controllers with 10/100 Mbit/s Industrial Ethernet for programming, diagnostics and S7 data exchange.

Detailed product description

Installed beside an S7-200 CPU, the processor provides an RJ45 Ethernet interface and independently manages supported S7 communication services. It enables remote STEP 7 Micro/WIN access and controller-to-controller data exchange.

Official technical data

Product type	CP 243-1	Module format	S7-200 expansion module
Ethernet rate	10 / 100 Mbit/s	Input voltage	24 V DC (-15% / +20%)
Backplane current	55 mA	External current	60 mA
Power loss	1.75 W	Protection rating	IP20

Communication & Connections

Ethernet port	1 x 8-pin RJ45
S7 connections	Up to 8
Engineering connection	1 x STEP 7 Micro/WIN
Ethernet standard	IEEE 802.3

Safety & Compliance

Operating temperature	0 to 55 °C horizontal
Storage / transport	-40 to 70 °C
Relative humidity	95% at 25 °C
Standards	CE, UL/cULus, CSA and FM

Remote S7-200 programming over Ethernet

Controller and OPC server communication

Compact DIN-rail or panel installation

Technical basis: Siemens official product documentation

RECOMMAND

Brand features and application fields

Brand characteristics

Siemens industrial automation hardware emphasizes organized engineering, documented integration and visible operating status for maintainable systems.

Legacy connectivityCommunications processors extend installed SIMATIC controllers with network access.

Documented servicesDefined S7 connections support predictable data exchange.

Compact expansionMatching module construction simplifies integration beside the CPU.

Application fields

Suitable for S7-200 networking, remote maintenance and controller data exchange.

Controller linksS7-200 to S7-300 or S7-400

Remote serviceMicro/WIN programming and diagnostics

SupervisionOPC-based plant data access

Installation & upgrade: Mount on a DIN rail or control panel beside a compatible S7-200 CPU, connect 24 V DC and the RJ45 Ethernet cable, then load the approved CP configuration.
