PRODUCT DETAILS · SIEMENS SIMATIC PN/PN Coupler

6ES7158-3AD10-0XA0

PROFINET Network Coupler

PRODUCT IDENTITY

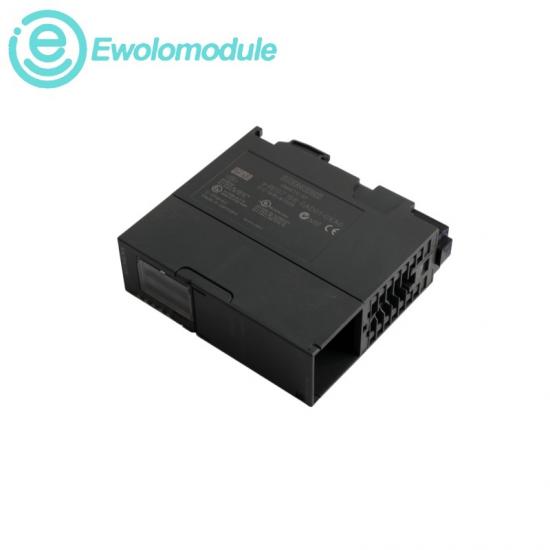

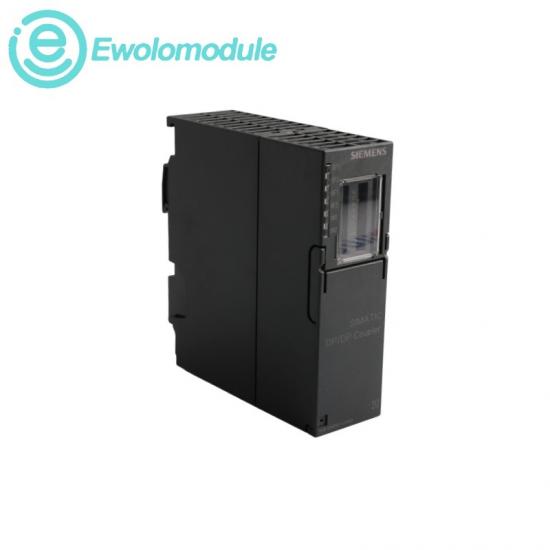

Siemens 6ES7158-3AD10-0XA0 SIMATIC PN/PN Coupler enables deterministic and safety-related data exchange between independent PROFINET subnets, using replaceable SIMATIC BusAdapters.

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Signal performance and compliance

PRODUCT DESCRIPTION

The PN/PN Coupler links separate PROFINET subnets while preserving their network independence. It exchanges I/O, MSI, MSO, PROFIsafe and data records, supports up to four PN controllers per side, S2 system redundancy, H-Sync forwarding, MRP/MRPD and redundant 24 V supplies. Network media are selected with interchangeable SIMATIC BusAdapters, which are not included.

CERTIFICATIONS & STANDARDS

◆ CE · EMC, ATEX and RoHS Directives

◆ cULus · UL/CSA 61010-1 and 61010-2-201

◆ ATEX · II 3 G Ex ec IIC T4 Gc

◆ IECEx · II 3 G Ex ec IIC T4 Gc

OFFICIAL TECHNICAL DATA

RATED SUPPLY 24 V DC	SUPPLY RANGE 19.2–28.8 V DC; reverse-polarity protected
CURRENT CONSUMPTION 360 mA maximum	POWER LOSS 4 W typical with two BA 2x RJ45
VOLTAGE FAILURE HOLDUP 10 ms	PROFINET INTERFACES 2 via BusAdapter; 100 Mbit/s full duplex
MODULE ADDRESS SPACE 254-byte input; 253-byte output maximum	STATION ADDRESS SPACE 1440 bytes per input and output
SUBMODULES Up to 116 per station	DATA RECORD COUPLING 4096-byte record; FIFO depth 8

RECOMMAND · APPLICATION GUIDANCE

Operational checks and related models

DIAGNOSTICS & PROTECTION

Parameterizable diagnostics and alarms plus RUN, ERROR, MAINT, LINK and per-side PWR LEDs provide immediate network and supply status.

OPERATING ENVIRONMENT

From FS05, operation is specified from -30 to +60 °C in horizontal mounting or to +50 °C vertically, with altitude restrictions above 2000 m.

Identification and verification support

SERVICE PROCESS

Identify

Confirm the complete model and installed configuration.

Verify

Check revision, condition and compatibility details.

FIXED DISCLAIMER

Trademark and
distribution notice

Ewolomodule sells new and surplus products and develops channels for purchasing such products. This website has not been approved or recognized by any of the listed manufacturers or trademarks. Ewolomodule is not an authorized distributor, dealer, or representative of the products displayed on this website.

All product names, trademarks, brands, and logos used on this website are the property of their respective owners. The description, explanation, or sale of products with these names, trademarks, brands, and logos is for identification purposes only and is not intended to indicate any association with or authorization from any rights holder.
