PRODUCT DETAILS · SIEMENS SIMATIC S7-300 CP 341

6ES7341-1AH01-0AE0

CP 341 RS232C Communication Processor

PRODUCT IDENTITY

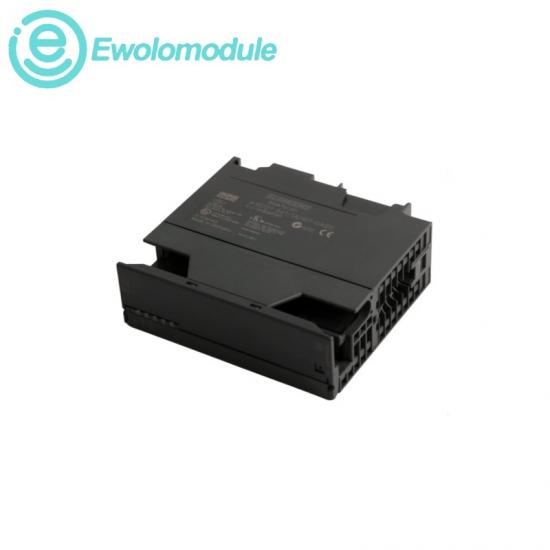

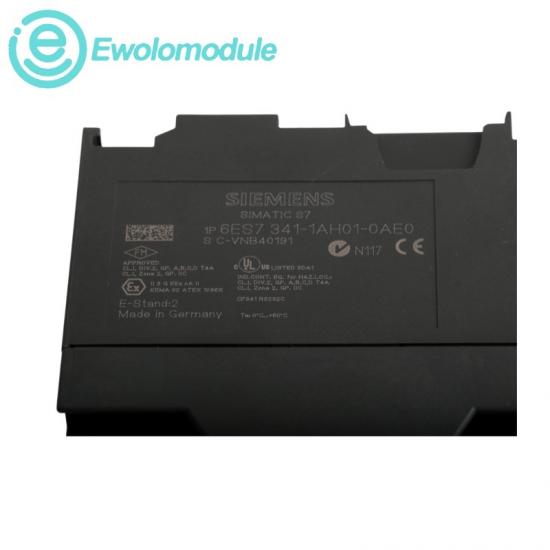

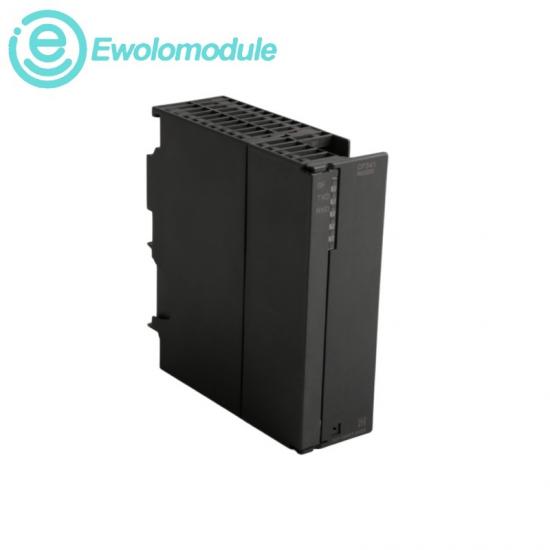

Siemens 6ES7341-1AH01-0AE0 SIMATIC S7-300 CP 341 RS232C Communication Processor is an archived spare-part communication processor with one electrically isolated RS232C point-to-point interface and configuration package.

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Signal performance and compliance

PRODUCT DESCRIPTION

The CP 341 adds one electrically isolated RS232C serial channel to a SIMATIC S7-300 station. It supports ASCII, 3964(R), RK 512 computer-link and printer communication at up to 115.2 kbit/s over 15 m, provides programmable diagnostics with SF, TXD and RXD indicators, and includes the original configuration package on CD.

CERTIFICATIONS & STANDARDS

◆ S7-300 system ref. · EN 61131-2

◆ S7-300 EMC ref. · EN IEC 61000-6-4:2019

◆ S7-300 EMC ref. · EN IEC 61000-6-2:2019

◆ S7-300 test ref. · IEC 60068-2-6 / -2-27

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION CP 341 RS232C	SERIAL INTERFACE 9-pin Sub-D male; electrically isolated
RS232C SIGNALS TXD, RXD, RTS, CTS, DTR, DSR, RI, DCD	MAXIMUM DISTANCE 15 m
MAXIMUM BAUD RATE 115200 bit/s	EXTERNAL SUPPLY 24 V DC; 20.4–28.8 V static
CURRENT AT 24 V 100 mA typical	BACKPLANE CURRENT Approximately 70 mA
POWER LOSS 2.4 W typical	PROGRAM DATA PER CYCLE 32-byte send and 32-byte receive

RECOMMAND · APPLICATION GUIDANCE

Operational checks and related models

DIAGNOSTICS & PROTECTION

Programmable diagnostic interrupts, a readable four-byte diagnostic record and SF, TXD and RXD LEDs support fast isolation of parameter, wiring and communication faults.

OPERATING ENVIRONMENT

Under the S7-300 conditions referenced by the CP manual: 0 to 60 °C horizontal or 0 to 40 °C vertical mounting, 10–95% RH without condensation.

Identification and verification support

SERVICE PROCESS

Identify

Confirm the complete model and installed configuration.

Verify

Check revision, condition and compatibility details.
