Product Details

SIEMENS

Official product name

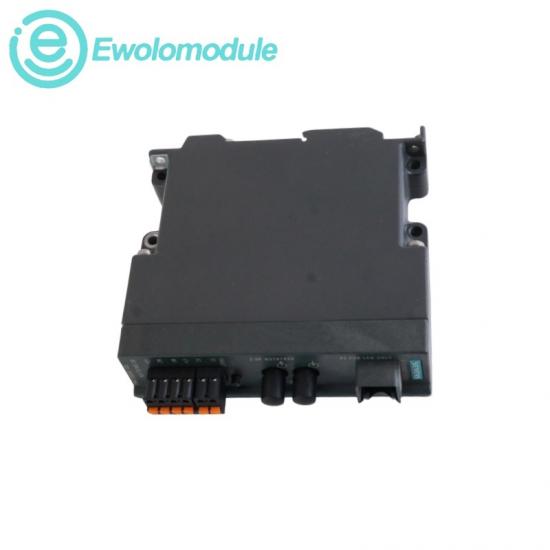

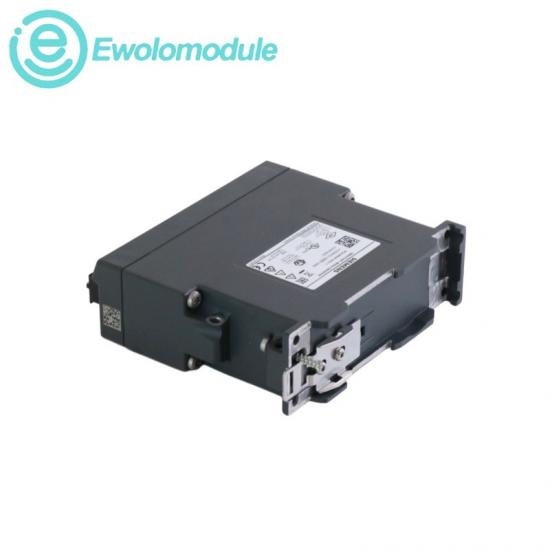

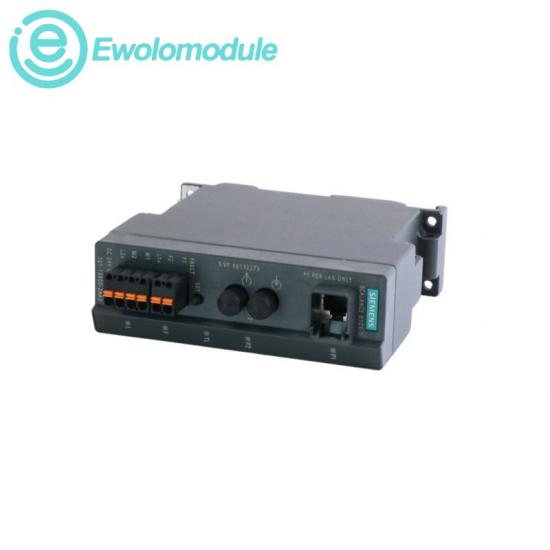

SCALANCE X101-1LD Industrial Ethernet Media Converter

Article number
6GK5101-1BC00-2AA3

Series
SCALANCE X-100

Description
Converts 100 Mbit/s Industrial Ethernet between copper RJ45 and long-distance single-mode fiber.

WarrantyOne year

AvailabilityIn stock

Related models on Ewolomodule
6GK5308-2GG00-2AA2 6GK7343-1EX11-0XE0 6GK5734-1FX00-0AA0

Specifications / Official engineering data

X101-1LD official engineering profile

The unmanaged SCALANCE X101-1LD provides one copper Industrial Ethernet interface and one single-mode optical interface for transparent 100 Mbit/s media conversion. LED diagnostics, a signaling contact and redundant 24 V DC supply support dependable cabinet installation.

Official technical data
Article number	6GK5101-1BC00-2AA3	Product type	SCALANCE X101-1LD
Transfer rate	100 Mbit/s	Copper interface	1 x RJ45
Optical interface	1 x BFOC	Fiber type	Single-mode glass
Optical range	Up to 26 km	Supply voltage	18 to 32 V DC
Protection class	IP30	Operating temperature	-10 °C to +60 °C

Product positioning	Unmanaged industrial media converter for copper-to-single-mode fiber network segments.
Suffix meaning	Siemens identifies the long-distance single-mode configuration by the complete article number; use the full MLFB for procurement.
System relationship	Connects 100BASE-TX copper equipment to 100BASE-LX single-mode fiber within SCALANCE X-100 Industrial Ethernet networks.

Recommand / Application and related models

Application & deployment
Plant networks Extends Ethernet links between control cabinets and remote production areas.	Utilities Provides fiber isolation across electrically noisy infrastructure zones.	Transport systems Connects distributed automation nodes over long single-mode fiber runs.

Installation

Mount on a 35 mm DIN rail, wall or S7-300 rail; connect the RJ45, BFOC fiber, signaling contact and redundant 24 V DC supply.

Upgrade path

Verify fiber type, connector, optical budget and 100 Mbit/s compatibility before selecting a documented replacement.
