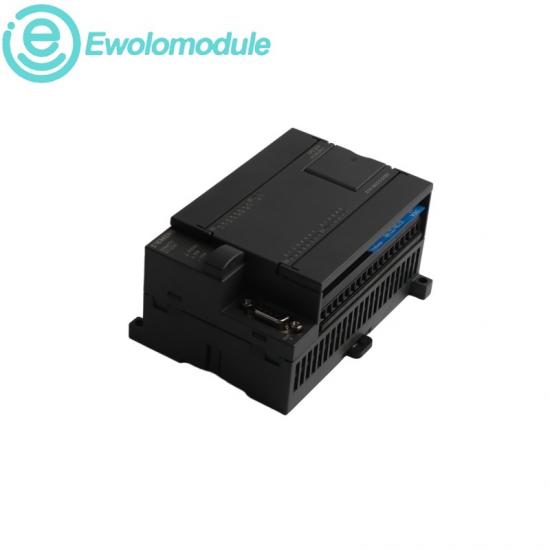

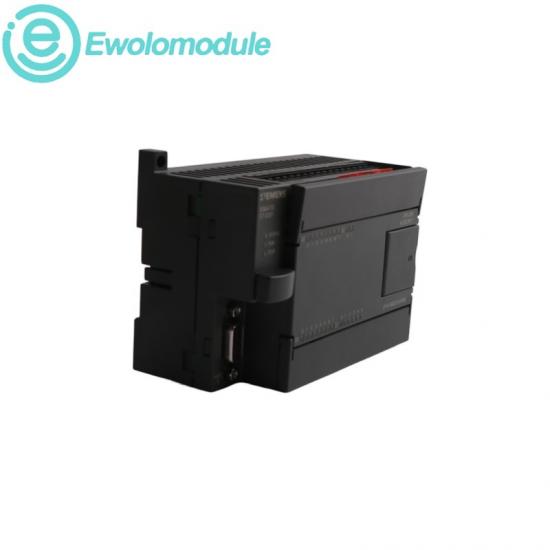

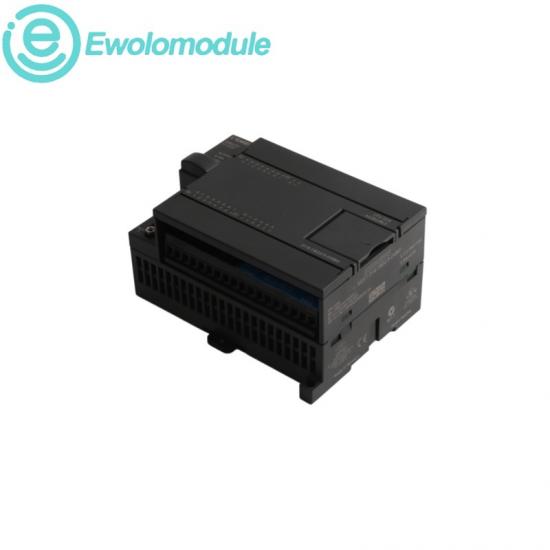

6ES7214-1BD23-0XB0

SIMATIC S7-200 CPU 224 Compact Controller

SIEMENS · PRODUCT DETAILS

Condition
New Original

Warranty
One year

PRODUCT SNAPSHOT

This compact controller combines CPU, AC power supply, fourteen digital inputs and ten relay outputs for self-contained automation tasks.

Integrated program and data memory support established S7-200 applications, while the expansion interface allows additional I/O and communication functions. Preserve the original program and system data before replacement.

☎ +86 17359287459 ✉ sales9@apterpower.com

Explore Siemens →

FIRMWARE · ENGINEERING

Lifecycle-ready configuration guidance

Firmware & updates

The exact order code identifies the international CPU 224 AC/DC/relay variant.

Before replacement, read and archive the user program, system data block and communication settings.

Use the Siemens service documentation that matches the installed CPU hardware and project generation.

As a spare-part product, firmware and software compatibility should be verified before commissioning.

Configuration & programming

Program the CPU with STEP 7-Micro/WIN using LAD, FBD or STL.

The controller provides 12 KB program memory, with 8 KB available when runtime edit is active, and 8 KB data memory.

Configure fourteen 24 V DC digital inputs and ten relay outputs for the application.

PROFIBUS DP capability can be expanded with the appropriate S7-200 communication hardware.

OFFICIAL TECHNICAL DATA

Product typeCPU 224 compact

Power supply120/230 V AC

Digital inputs14 at 24 V DC

Digital outputs10 relay

Program memory8/12 KB

Data memory8 KB

ProgrammingLAD / FBD / STL

Protection classIP20

Technical values are limited to Siemens documentation for 6ES7214-1BD23-0XB0. Confirm the installed hardware revision and applicable manual before commissioning.

BRAND VALUE · APPLICATION RANGE

Engineering fit across demanding industries

Siemens brand characteristics

Application fields

Compact SIMATIC controllers combine logic, power and onboard I/O in one assembly.

Standalone machine and skid automation.

Long-lived S7-200 installations remain supported by detailed system documentation.

Pump, fan and utility sequencing.

Relay outputs suit mixed-voltage switching in small-machine applications.

Packaging and material-handling equipment.

Structured migration planning helps protect existing programs and field wiring.

Service replacement in established S7-200 systems.
