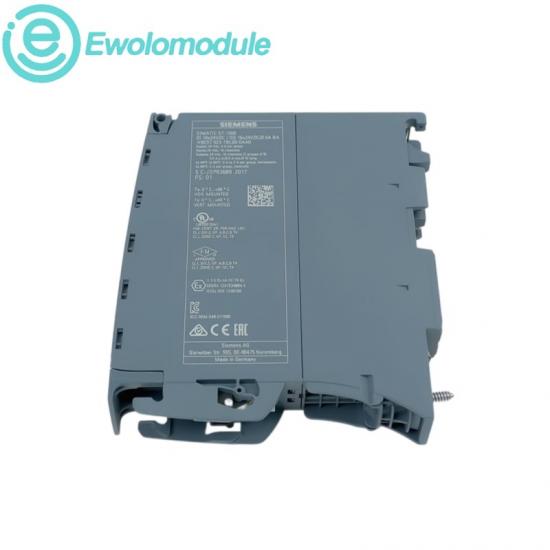

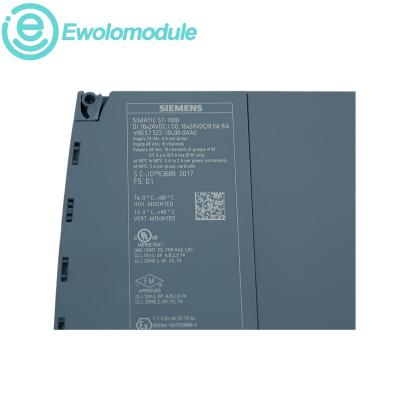

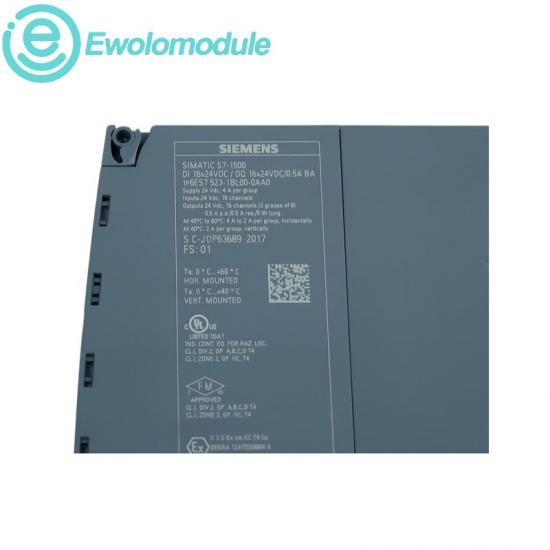

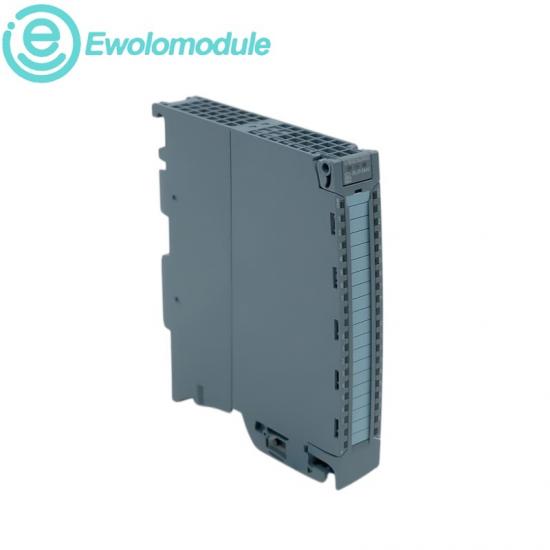

6ES7523-1BL00-0AA0

SIMATIC S7-1500 SM 523 Digital Input Output Module

SIEMENS · PRODUCT DETAILS

Condition
New Original

Warranty
One year

PRODUCT SNAPSHOT

This combined digital input and output module gives an S7-1500 station sixteen 24 V DC inputs and sixteen 24 V DC transistor outputs in one compact signal-module position.

The balanced I/O layout suits general machine control and distributed cabinet functions. Match the wiring, load groups, project version and safety-oriented shutdown design before commissioning.

☎ +86 17359287459 ✉ sales9@apterpower.com

Explore Siemens →

FIRMWARE · ENGINEERING

Lifecycle-ready configuration guidance

Firmware & updates

The documented hardware functional status begins at FS01 with firmware V1.0.0.

Firmware updates are supported and must use Siemens packages for the exact order code.

I&M0 to I&M3 data provide identification and maintenance information in the station.

Back up the project and confirm module revision before a firmware update or replacement.

Configuration & programming

Configure the module in STEP 7 TIA Portal from V13 or in STEP 7 from V5.5 SP3.

The module supports both DI and DQ operation, including MSI and MSO functions.

Assign sixteen inputs as one group and sixteen outputs as two groups of eight.

The push-in front connector is included; coordinate load-group protection and wiring.

OFFICIAL TECHNICAL DATA

Product typeDI16/DQ16 BA

Digital inputs16

Input delay3.2 ms typical

Digital outputs16

Output rating24 V DC / 0.5 A

Group current4 A maximum

Supply range19.2–28.8 V DC

FirmwareV1.0.0

Technical values are limited to Siemens documentation for 6ES7523-1BL00-0AA0. Confirm the installed hardware revision and applicable manual before commissioning.

BRAND VALUE · APPLICATION RANGE

Engineering fit across demanding industries

Siemens brand characteristics

Application fields

SIMATIC S7-1500 engineering integrates controller, signal and diagnostics data in one project.

Compact machine control with mixed discrete I/O.

Combined I/O density helps reduce cabinet width and spare-part variety.

Packaging, conveyor and material-handling systems.

I&M records support traceable maintenance and asset identification.

Cabinet retrofits requiring combined input and output channels.

Documented safety-oriented load-group shutdown enables structured machine design.

Production equipment using S7-1500 or ET 200MP stations.
