PRODUCT DETAILSSIEMENS

ARTICLE NUMBER

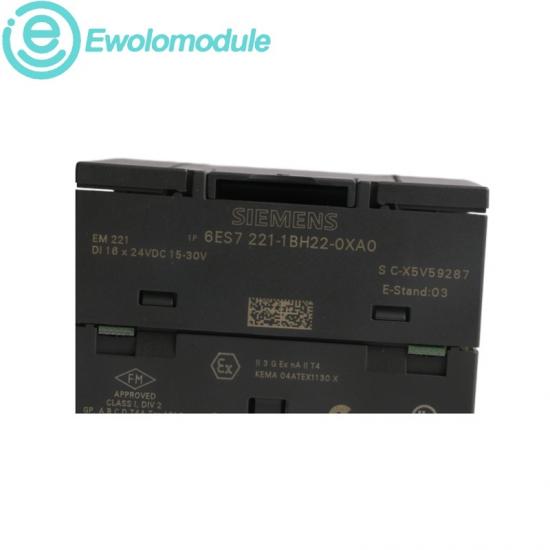

6ES7221-1BH22-0XA0

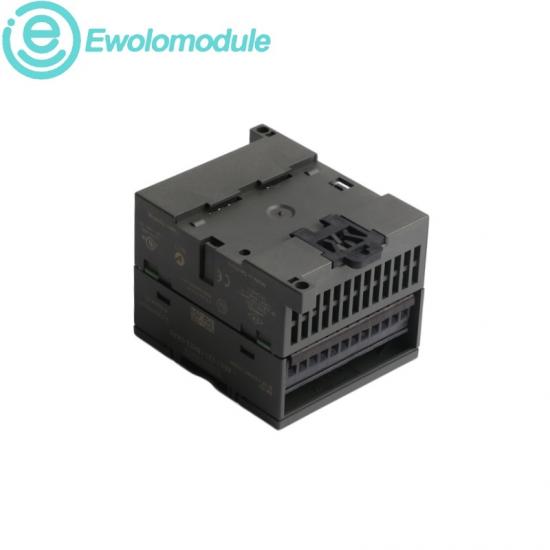

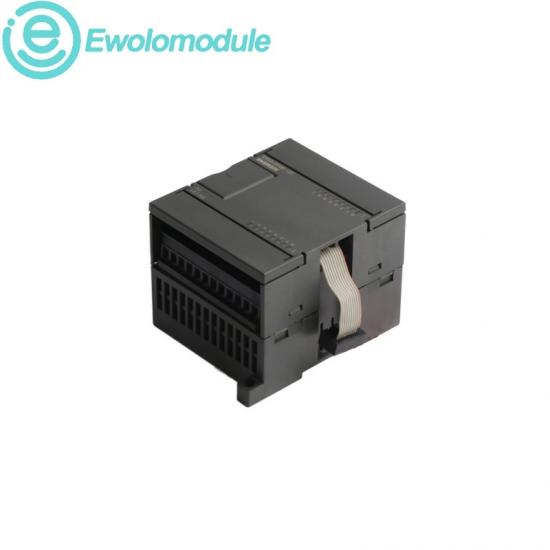

SIMATIC S7-200 Digital Input Module

Sixteen-channel digital input expansion for acquiring 24 V DC field signals in compact S7-200 control systems.

WARRANTYOne year

AVAILABILITYIn stock

TEL+86 17359287459

EMAILsales9@apterpower.com

DIAGNOSTICS, PROTECTION & INSTALLATION

Digital inputs16 DI	Rated input24 V DC	Input profileIEC Type 1	Signal 00 to 5 V
Signal 115 to 30 V	Input current4 mA typical	Input delay4.5 ms maximum	Isolation groups4

DIAGNOSTICS & PROTECTION

Use channel status information in the control program to identify missing field signals.
Four isolated input groups support structured separation of field circuits.
Check sensor supply and common reference before replacing the module.
Observe the documented input-voltage limits during troubleshooting.

INSTALLATION & UPGRADES

Designed only for SIMATIC S7-22X CPU expansion systems.
Preserve the original module position and input address allocation.
Use shielded cable up to 500 m or unshielded cable up to 300 m.
Run a complete input-state test after replacement or cabinet work.

BRAND CHARACTERISTICS & APPLICATION FIELDS

BRAND CHARACTERISTICS	APPLICATION FIELDS
◆ Siemens modular S7-200 architecture supports compact expansion.	◆ Machine sensors and auxiliary-contact status acquisition.
◆ Order-code control distinguishes the exact channel and voltage variant.	◆ Compact packaging, conveying and assembly controllers.
◆ Electrical isolation supports organized field-signal grouping.	◆ Installed S7-200 cabinet retrofit and spare-parts programs.
◆ Official documentation provides clear retrofit and wiring limits.	◆ Maintenance replacement where established input addresses must remain.
