SIEMENS · PRODUCT DETAILS

6ES7231-5PF32-0XB0

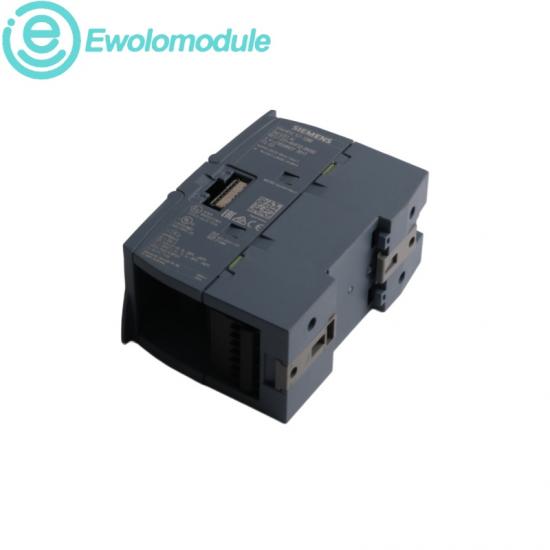

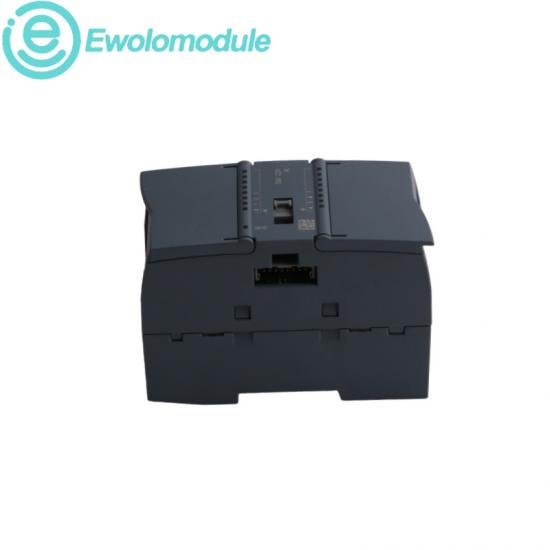

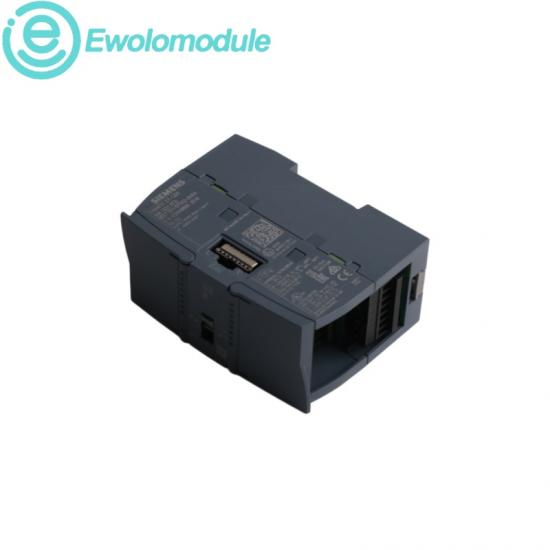

SIMATIC S7-1200 SM 1231 RTD 8xAI Analog Input Module

8× RTDAnalog InputSM 1231

PRODUCT SNAPSHOT

An eight-channel SM 1231 RTD analog input module for SIMATIC S7-1200 controllers, designed to acquire resistance-temperature and resistance-sensor signals.

The module adds eight dedicated analog measuring channels to a compact controller and is configured as part of the S7-1200 hardware station.

DIRECT CONTACT

☎ +86 17359287459 ✉ sales9@apterpower.com

DIAGNOSTICS · PROTECTION · COMMISSIONING

Reliable operation with structured installation guidance

◆ Diagnostic protection

Channel status and controller diagnostics support identification of sensor-side faults.
Separate RTD input channels simplify comparison and localization of abnormal readings.
Configured measuring ranges help detect incompatible sensor or wiring assignments.
Stable module identification supports consistent hardware diagnostics in the project.

◆ Installation & upgrade

Mount the signal module beside a compatible SIMATIC S7-1200 CPU.
Wire the eight RTD inputs using the sensor connection method defined in the module manual.
Configure sensor type and measuring range for each channel in TIA Portal.
Verify channel values and diagnostic status before placing the control loop in service.

OFFICIAL TECHNICAL DATA

Product type
SM 1231 RTD signal module

Automation system
SIMATIC S7-1200

Signal direction
Analog input

Input channels
8× RTD

Sensor application
Resistance temperature detection

Product family
SM 1231 RTD

Lifecycle
Active product

Technical content is based on Siemens documentation for this exact order code. Installation and validation must follow the applicable Siemens manuals.

BRAND STRENGTH · APPLICATION MAP

Industrial integration and application guidance

Siemens brand characteristics

Integrated engineering across controllers, distributed I/O, communication and safety systems.
Documented diagnostics support structured commissioning, maintenance and replacement work.
Long lifecycle support and defined migration paths serve established automation platforms.
Broad industrial portfolio supports machine, process and infrastructure applications.

Application fields

Multi-point temperature monitoring on compact machines.
HVAC and utility process measurement.
Packaging and production equipment temperature acquisition.
S7-1200 control panels requiring eight RTD inputs.
