SIEMENS · PRODUCT DETAILS

6GK1502-2CB10

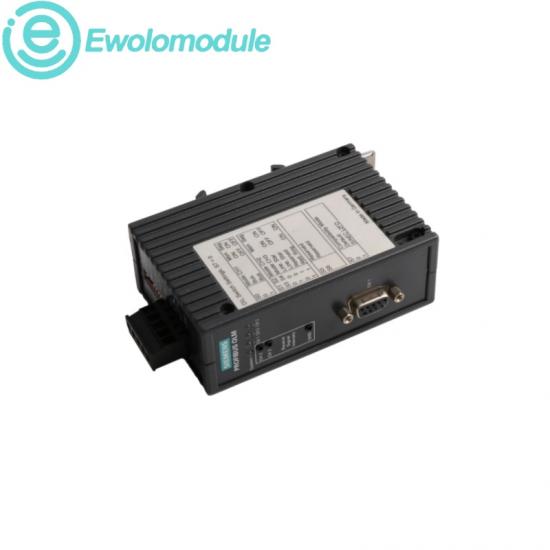

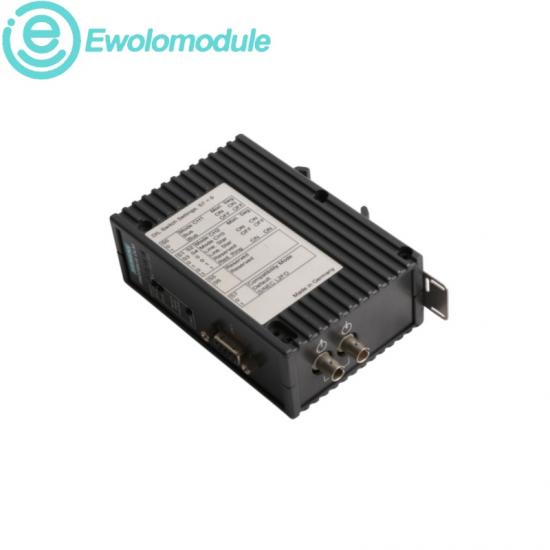

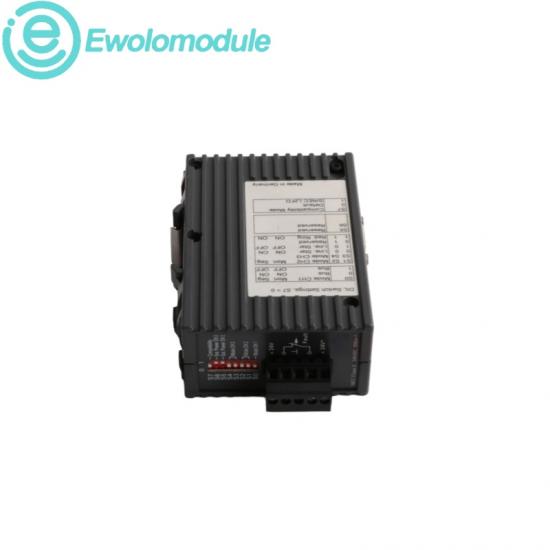

PROFIBUS OLM/G11 V3.1 Optical Link Module

1× RS4851× Glass FOC2× BFOC

PRODUCT SNAPSHOT

An OLM/G11 V3.1 module that links one electrical PROFIBUS RS485 segment to one glass-fiber optical channel through two BFOC sockets.

The signaling contact and test port assist commissioning and maintenance. Siemens lists 6GK1503-2CB00 as the successor for migration planning.

DIRECT CONTACT

☎ +86 17359287459 ✉ sales9@apterpower.com

DIAGNOSTICS · PROTECTION · COMMISSIONING

Reliable operation with structured installation guidance

◆ Diagnostic protection

The signaling contact enables external monitoring of module and link status.
The test port supports optical signal checks during commissioning and service.
Electrical and optical interfaces help isolate faults between network media.
Glass-fiber transmission supports robust PROFIBUS links over plant distances.

◆ Installation & upgrade

Connect the PROFIBUS electrical segment to the single RS485 interface.
Terminate the glass-fiber channel at the two BFOC sockets with correct transmit/receive routing.
Verify optical level and link status at the test port before commissioning.
For replacement, compare the installation with successor 6GK1503-2CB00.

OFFICIAL TECHNICAL DATA

Product type
PROFIBUS optical link module

Version
OLM/G11 V3.1

Electrical interface
1× RS485

Optical interface
1× glass FOC

Optical sockets
2× BFOC

Service features
Signaling contact and test port

Lifecycle
End of lifecycle since 2019

Successor
6GK1503-2CB00

Technical content is based on Siemens documentation for this exact order code. Installation and validation must follow the applicable Siemens manuals.

BRAND STRENGTH · APPLICATION MAP

Industrial integration and application guidance

Siemens brand characteristics

Integrated engineering across controllers, distributed I/O, communication and safety systems.
Documented diagnostics support structured commissioning, maintenance and replacement work.
Long lifecycle support and defined migration paths serve established automation platforms.
Broad industrial portfolio supports machine, process and infrastructure applications.

Application fields

Glass-fiber PROFIBUS plant backbones.
Electrical-to-optical segment conversion.
Noise-resistant industrial communication links.
Modernization of legacy OLM/G11 installations.
