SIEMENS · PRODUCT DETAILS

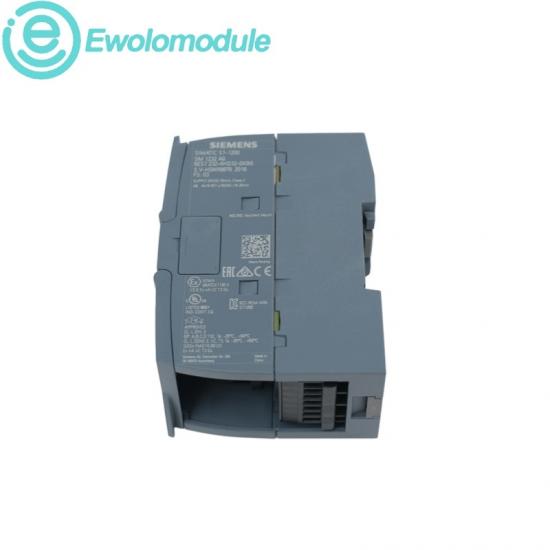

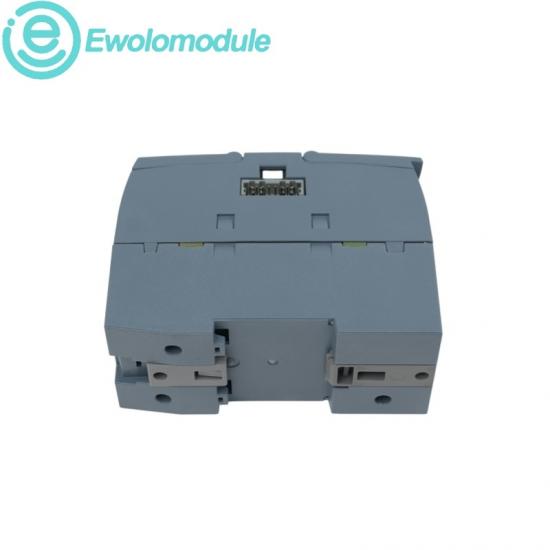

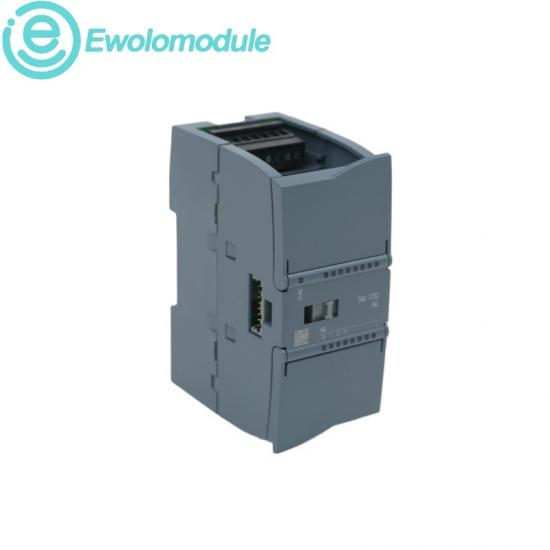

Siemens 6ES7232-4HD32-0XB0 S7-1200 Analog Output Module

Four-channel analog output expansion for voltage and current control signals in compact SIMATIC S7-1200 systems.

CONDITIONNew Original

WARRANTYOne year

☎ +86 17359287459 ✉ sales9@apterpower.com

SYSTEM POSITION

S7-1200 · SM 1232

Four analog outputs for voltage or current signals with diagnostic support and front-connector wiring.

Product snapshot

The module supplies four analog outputs selectable for ±10 V, 0–20 mA or 4–20 mA operation. Voltage outputs use 14-bit resolution and current outputs use 13-bit resolution.

Diagnostic alarms, supply-voltage monitoring and wire-break diagnostics support commissioning and service of industrial control loops.

Explore other Siemens products →

OPERATING INSIGHT

Detailed product description

The SM 1232 expands a SIMATIC S7-1200 station with four analog output channels for actuator and process control. Each channel can be configured for voltage or current signals, with documented load limits and shielded-cable routing for stable signal transfer.

◇ Operating environment

Operates from a 24 V DC rated supply in S7-1200 installations. Shielded twisted-pair cable is specified up to 100 m, and environmental limits follow the S7-1200 module installation requirements.

◎ Monitoring & control

Diagnostic alarms, supply-voltage monitoring and wire-break diagnostics provide status visibility. Output behavior and ranges are configured in the controller project.

Official technical data

Product type
SM 1232 AQ 4x14 bit

Analog outputs
4 voltage/current channels

Voltage range
-10 V to +10 V

Current ranges
0–20 mA / 4–20 mA

Resolution
14 bit voltage / 13 bit current

Supply voltage
24 V DC

Power loss
1.5 W typical

Shielded cable
100 m max.
